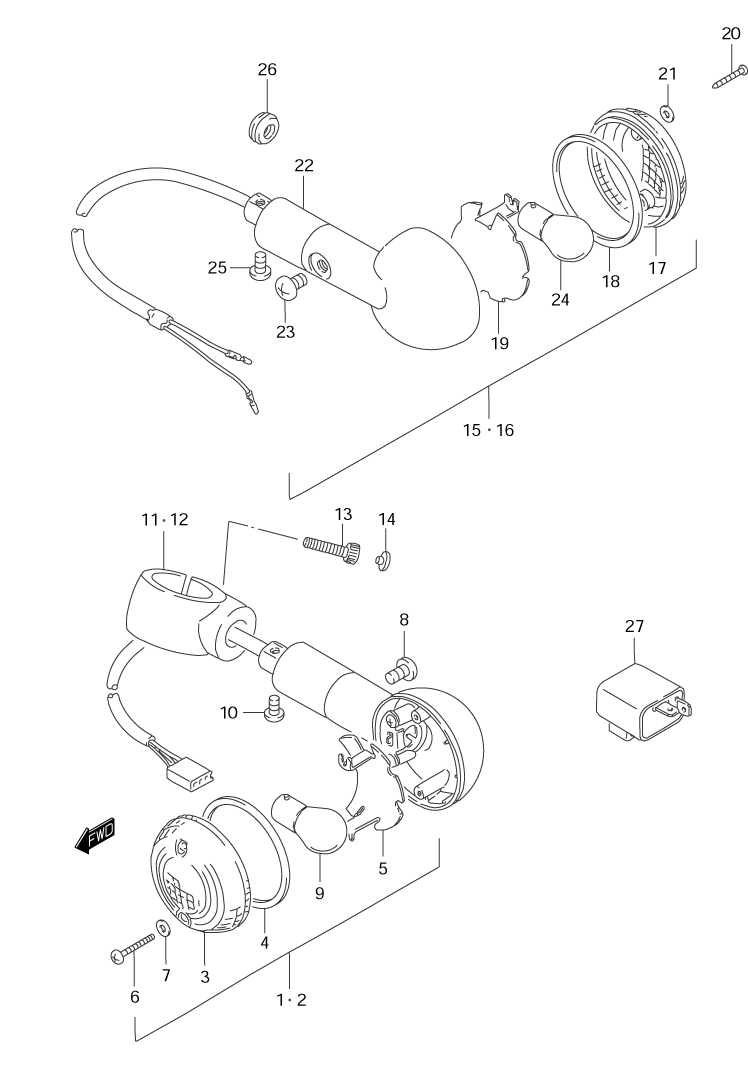

TURN SIGNAL ASSY. для Suzuki VS-1400GLP Y - 2000 года выпуска
-
№АртикулНазвание
-
135601-38B30-999 LAMP, FRONT TURNSIGNAL,R ASSY.LAMP, FRONT TURNSIGNAL,R ASSY.
-
235602-38B30-999 LAMP, FRONT TURNSIGNAL,L ASSY.LAMP, FRONT TURNSIGNAL,L ASSY.
-
335612-38A30 ...LENS...LENS
-
435613-38A00 ...GASKET...GASKET
-
535624-38A00 ...REFLECTOR...REFLECTOR
-
603211-04253 ...SCREW...SCREW
-
735627-43010 ...GASKET...GASKET
-
835623-38A01 ...SCREW...SCREW
-
909471-12128 BULB (12V,21/5W)BULB (12V,21/5W)
-
1002142-06107 SCREWSCREW
-
1135671-38B00 BRACKET, (RIGHT)BRACKET, (RIGHT)
-
1235681-38B00 BRACKET, (LEFT)BRACKET, (LEFT)
-
1307130-06167 BOLTBOLT
-
1409250-05008 CAPCAP
-
1535603-38A02-999 LAMP, REAR TURNSIGNAL,R ASSY.LAMP, REAR TURNSIGNAL,R ASSY.
-
1635603-38A02-999 LAMP, REAR TURNSIGNAL,L ASSY.LAMP, REAR TURNSIGNAL,L ASSY.
-
1735612-38A01 ...LENS...LENS
-
1835613-38A00 ...GASKET...GASKET
-
1935624-39A00 ...REFLECTOR...REFLECTOR
-
2003211-04253 ...SCREW...SCREW
-
2135627-43010 ...GASKET...GASKET
-
2235619-38A01 ...STAY...STAY
-
2335623-38A01 ...SCREW...SCREW
-
2409471-12045 BULB (12V,21W)BULB (12V,21W)
-
2502142-06107 SCREWSCREW
-
2609308-08011 GROMMETGROMMET
-
27-238610-26E00 RELAY, TURN SIGNALRELAY, TURN SIGNAL
