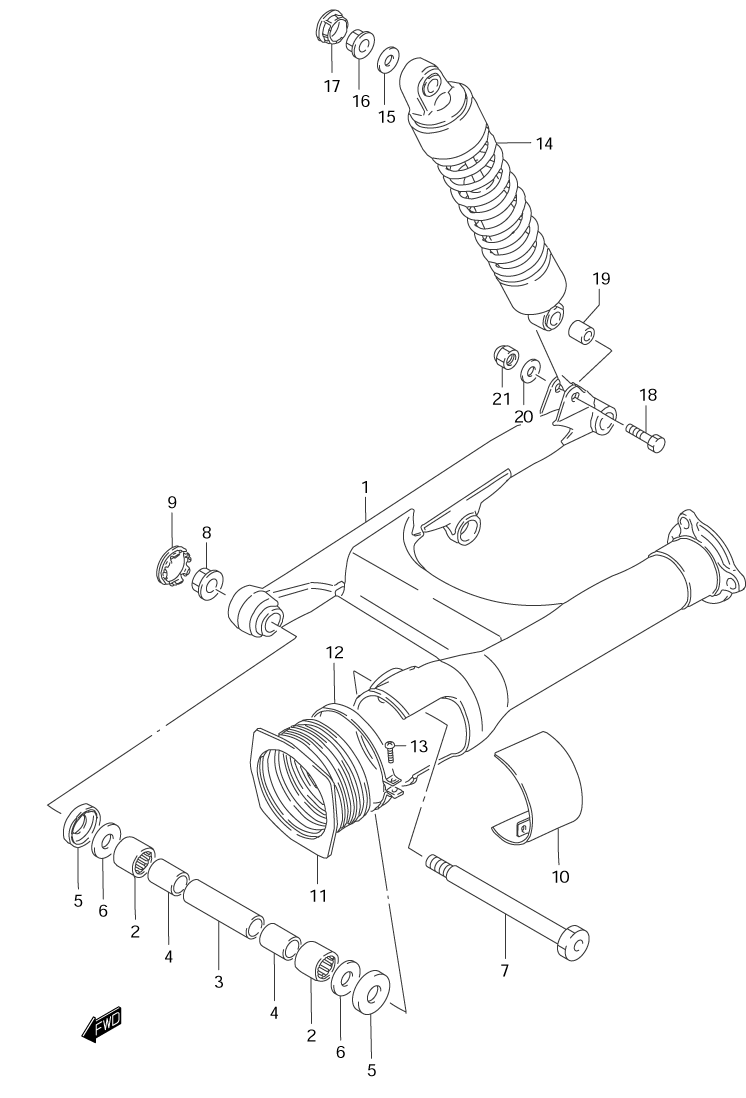

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki VS-1400GLP Y - 2000 года выпуска
-
№АртикулНазвание
-
1-761100-38B01-Y7G SWINGING ARM, REAR (GREEN)SWINGING ARM, REAR (GREEN)
-
209263-22017 BEARING (22X29X30)BEARING (22X29X30)
-
361282-38B00 SPACER, CENTERSPACER, CENTER
-
461251-38B00 SPACER, PIVOTSPACER, PIVOT
-
561262-14A00 DUST SEALDUST SEAL
-
608211-16341 THRUST WASHERTHRUST WASHER
-
761211-38B00 SHAFT, PIVOTSHAFT, PIVOT
-
808319-31148 NUTNUT
-
961222-38A01 CAP, (RIGHT)CAP, (RIGHT)
-
10-761230-38B00-Y7G CAP, (LEFT) (GREEN)CAP, (LEFT) (GREEN)
-
1161372-38B00 BOOT, SHAFTBOOT, SHAFT
-
1209402-92306 CLAMPCLAMP
-
1303211-04253 SCREWSCREW
-
14-262100-38B10 ABSORBER, REAR SHOCK ASSY.ABSORBER, REAR SHOCK ASSY.
-
1509160-10123 WASHER, UPPER (10.5X20X2.3)WASHER, UPPER (10.5X20X2.3)
-
1608316-10103 NUTNUT
-
1795672-24A00 CAP, UPPERCAP, UPPER
-
1809100-10247 BOLT, LOWER (RIGHT) (10X39)BOLT, LOWER (RIGHT) (10X39)
-
1909180-10139 SPACER, LOWER (RIGHT) (10.2X14X20.SPACER, LOWER (RIGHT) (10.2X14X20.
-
2009160-10127 WASHER, LOWER (10.5X24X2.3)WASHER, LOWER (10.5X24X2.3)
-
2108313-10107 NUTNUT
