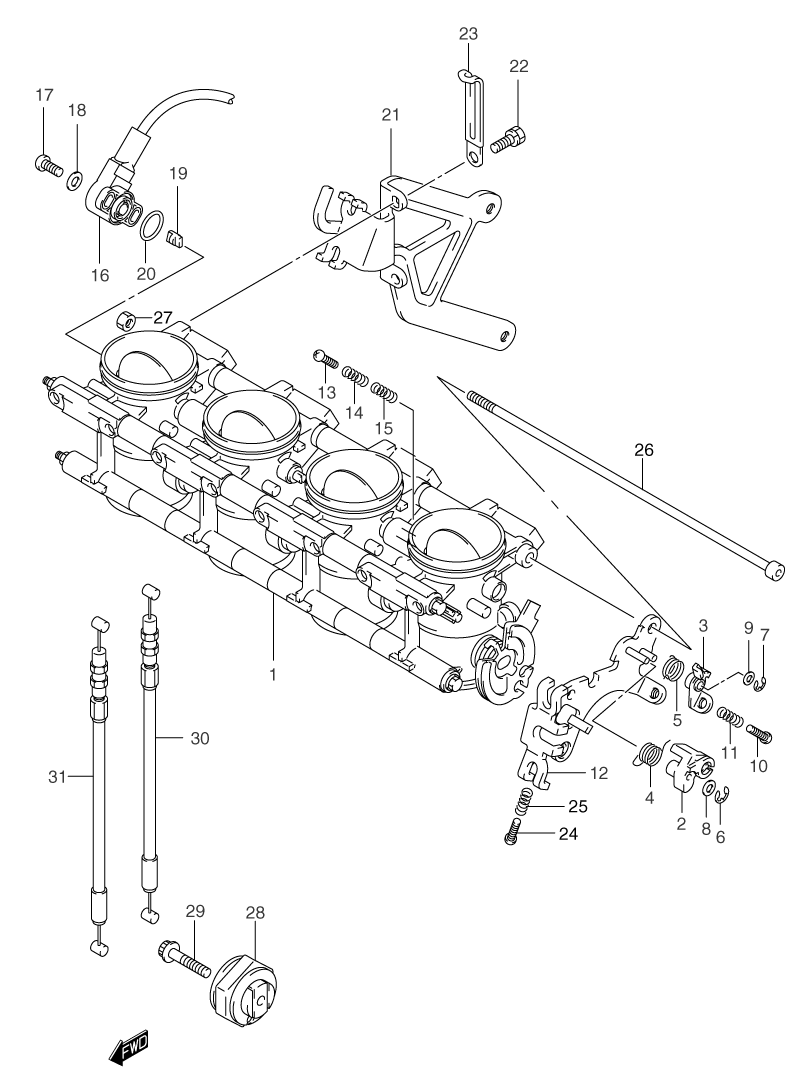

CARBURETOR - THROTTLE BODY для Suzuki GSX-R750 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-113460-35F00 BODY SET, THROTTLE (EXCEPT CALIF.)BODY SET, THROTTLE (EXCEPT CALIF.)
-
1-213460-35F10 BODY SET, THROTTLE (CALIFORNIA ONLY)BODY SET, THROTTLE (CALIFORNIA ONLY)
-
213413-35F00 LINK LEVERLINK LEVER
-
313414-35F00 LINK LEVERLINK LEVER
-
413426-35F00 SPRINGSPRING
-
513426-35F10 SPRINGSPRING
-
613424-35F00 E-CLIPE-CLIP
-
713424-35F10 E-CLIPE-CLIP
-
813427-35F00 WASHERWASHER
-
913427-35F10 WASHERWASHER
-
1013423-35F00 SCREW, STOPSCREW, STOP
-
1113271-26E10 SPRINGSPRING
-
1213565-35F00 PLATE, STAYPLATE, STAY
-
1313423-35F00 SCREW, STOPSCREW, STOP
-
1413543-24F00 SPRINGSPRING
-
1513268-03F50 SPRINGSPRING
-
1613580-24F00 SENSOR ASSY., THROTTLESENSOR ASSY., THROTTLE
-
1713613-24F00 SCREWSCREW
-
1813615-24F10 WASHERWASHER
-
1913582-24F00 COLLARCOLLAR
-
2013575-24F00 O-RINGO-RING
-
2113627-35F00 PLATE, STAYPLATE, STAY
-
2213611-35F00 BOLTBOLT
-
2313432-24F00 BINDERBINDER
-
2413267-35F00 SCREW, STOPSCREW, STOP
-
2513268-35F00 SPRINGSPRING
-
2613611-24F00 BOLTBOLT
-
2713607-24F00 NUTNUT
-
2811269-20A04 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
2907120-05203 BOLTBOLT
-
3013641-35F00 CABLE, THROTTLE ACTUATOR OPENCABLE, THROTTLE ACTUATOR OPEN
-
3113642-35F00 CABLE, THROTTLE ACTUATOR CLOSECABLE, THROTTLE ACTUATOR CLOSE
