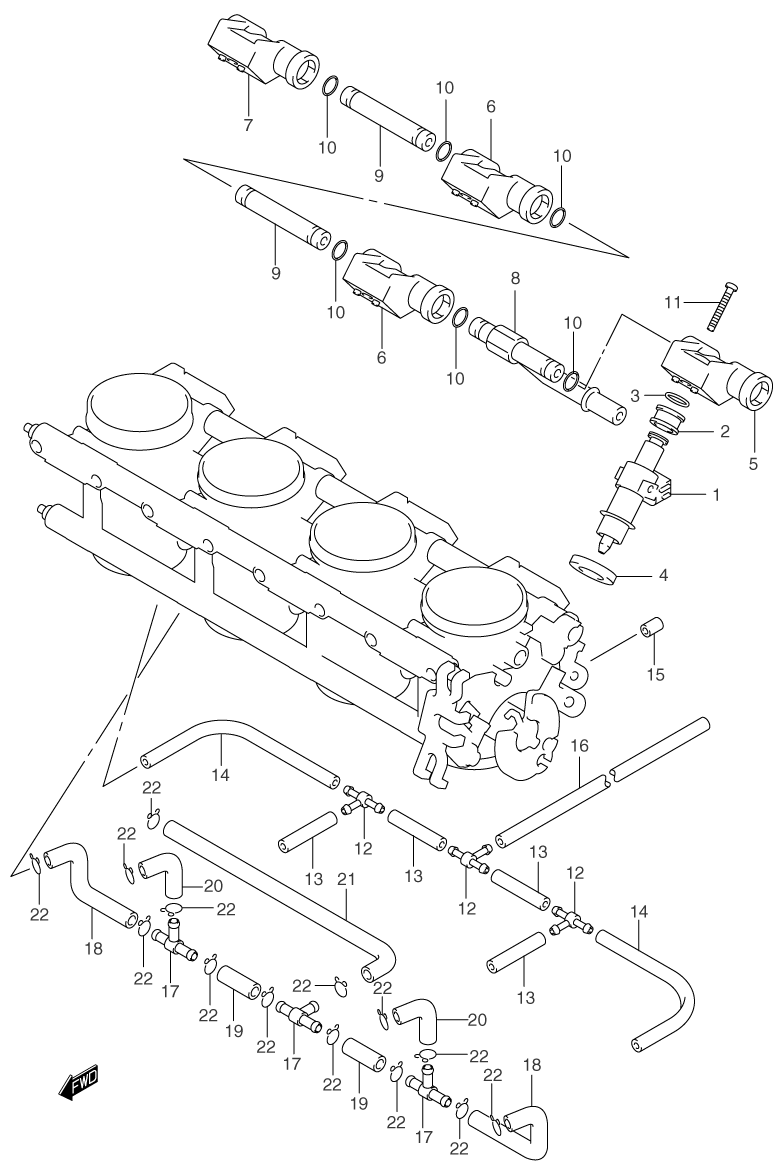

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R750 K1 - 2001 года выпуска
-
№АртикулНазвание
-
115710-24F00 INJECTOR ASSY.INJECTOR ASSY.
-
215722-24F00 RING, CUSHIONRING, CUSHION
-
315721-24F00 O-RINGO-RING
-
413672-24F00 RING, SEALRING, SEAL
-
513471-35F00 JOINT (LEFT)JOINT (LEFT)
-
613471-35F10 JOINT (MIDDLE LEFT/MIDDLE RIGHT)JOINT (MIDDLE LEFT/MIDDLE RIGHT)
-
713471-35F20 JOINT (RIGHT)JOINT (RIGHT)
-
813473-35F01 JOINTJOINT
-
913474-24F00 JOINTJOINT
-
1015721-24F00 O-RINGO-RING
-
1113601-35F00 SCREWSCREW
-
1213471-24F30 3 WAY3 WAY
-
1313697-24F00 HOSE (3X7X35)HOSE (3X7X35)
-
1413697-24F20 HOSE (3X7X100)HOSE (3X7X100)
-
1513508-24F00 CAP, RUBBERCAP, RUBBER
-
1613697-35F00 HOSE (3X7X170)HOSE (3X7X170)
-
1713685-36E50 3 WAY (CALIFORNIA ONLY)3 WAY (CALIFORNIA ONLY)
-
1813698-24F00 HOSE (5.3X10.5,L:80+25) (CALIFORNIA ONLY)HOSE (5.3X10.5,L:80+25) (CALIFORNIA ONLY)
-
1913698-24F10 HOSE (5.3X10.5,L:35) (CALIFORNIA ONLY)HOSE (5.3X10.5,L:35) (CALIFORNIA ONLY)
-
2013698-24F20 HOSE (5.3X10.5,L:30+30) (CALIFORNIA ONLY)HOSE (5.3X10.5,L:30+30) (CALIFORNIA ONLY)
-
2113698-35F00 HOSE (5.3X10.5,L:200+30) (CALIFORNIA ONLY)HOSE (5.3X10.5,L:200+30) (CALIFORNIA ONLY)
-
2213693-24F00 CLIP (CALIFORNIA ONLY)CLIP (CALIFORNIA ONLY)
