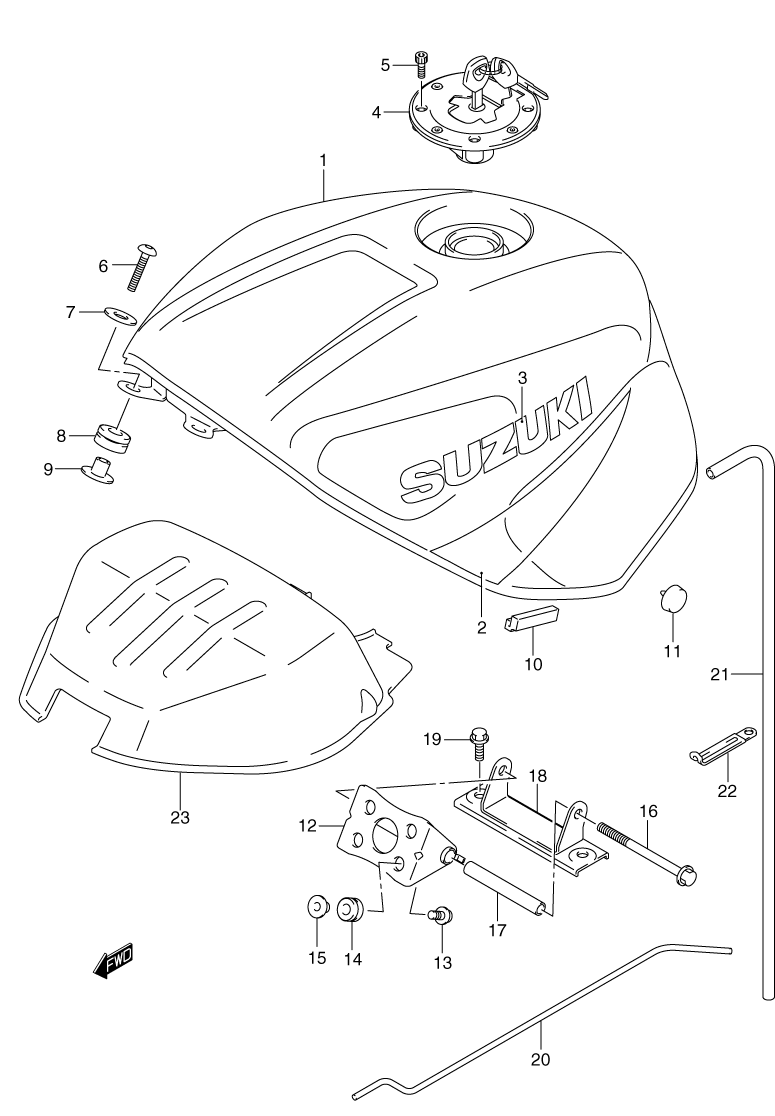

FUEL TANK для Suzuki GSX-R750 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-144100-35F10-L99 TANK ASSY., FUEL (US/CANADA) (L99 - WHITE/BLUE)TANK ASSY., FUEL (US/CANADA) (L99 - WHITE/BLUE)
-
1-244100-35F10-BP9 TANK ASSY., FUEL (CANADA) (BP9 - YELLOW/BLACK)TANK ASSY., FUEL (CANADA) (BP9 - YELLOW/BLACK)
-
1-344100-35F10-FP2 TANK ASSY., FUEL (US) (FN9 - RED/SILVER)TANK ASSY., FUEL (US) (FN9 - RED/SILVER)
-
1-444100-35F30-L99 TANK ASSY., FUEL (CALIFORNIA ONLY) (L99 - WHITE/BLUE)TANK ASSY., FUEL (CALIFORNIA ONLY) (L99 - WHITE/BLUE)
-
1-544100-35F30-FP2 TANK ASSY., FUEL (CALIFORNIA ONLY) (FN9 - RED/SILVER)TANK ASSY., FUEL (CALIFORNIA ONLY) (FN9 - RED/SILVER)
-
2-168110-39F00-1LE ...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99 - WHITE/BLUE)...TAPE SET, FUEL TANK (1LE - BLUE) (FOR L99 - WHITE/BLUE)
-
2-268110-39F00-Y7L ...TAPE SET, FUEL TANK (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)...TAPE SET, FUEL TANK (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
-
2-368110-39F00-Y7M ...TAPE SET, FUEL TANK (Y7M - RED) (FN9 - RED/SILVER)...TAPE SET, FUEL TANK (Y7M - RED) (FN9 - RED/SILVER)
-
3-168111-12C00-0JW ...EMBLEM (0JW - WHITE) (FOR L99 - WHITE/BLUE)...EMBLEM (0JW - WHITE) (FOR L99 - WHITE/BLUE)
-
3-268111-12C00-YD8 ...EMBLEM (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)...EMBLEM (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
-
4-144201-33820 CAP SET, FUEL TANK (US/CANADA)CAP SET, FUEL TANK (US/CANADA)
-
4-244200-33890 CAP SET, FUEL TANK (CALIFORNIA ONLY)CAP SET, FUEL TANK (CALIFORNIA ONLY)
-
509106-05017 BOLTBOLT
-
609139-06029 BOLT (FRONT)BOLT (FRONT)
-
709160-06054 WASHERWASHER
-
844511-19F00 CUSHION (FRONT)CUSHION (FRONT)
-
944512-19F00 SPACER (FRONT)SPACER (FRONT)
-
1044541-35F00 CUSHION, SIDECUSHION, SIDE
-
1144542-35F00 CUSHION, SIDE NO.2CUSHION, SIDE NO.2
-
1244530-35F00 BRACKET, NO.1 (REAR)BRACKET, NO.1 (REAR)
-
1309116-06152 BOLTBOLT
-
1409320-08001 CUSHIONCUSHION
-
1509169-06062 SPACERSPACER
-
1601550-06953 BOLT, JOINTBOLT, JOINT
-
1744561-35F00 SPACERSPACER
-
1844550-35F10 BRACKET, NO.2 (REAR)BRACKET, NO.2 (REAR)
-
1901550-08163 BOLTBOLT
-
2044574-35F00 STAY, FUEL TANKSTAY, FUEL TANK
-
2144423-35F00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2209404-06432 CLAMPCLAMP
-
2344191-40F00 SHIELD, TANK HEATSHIELD, TANK HEAT
