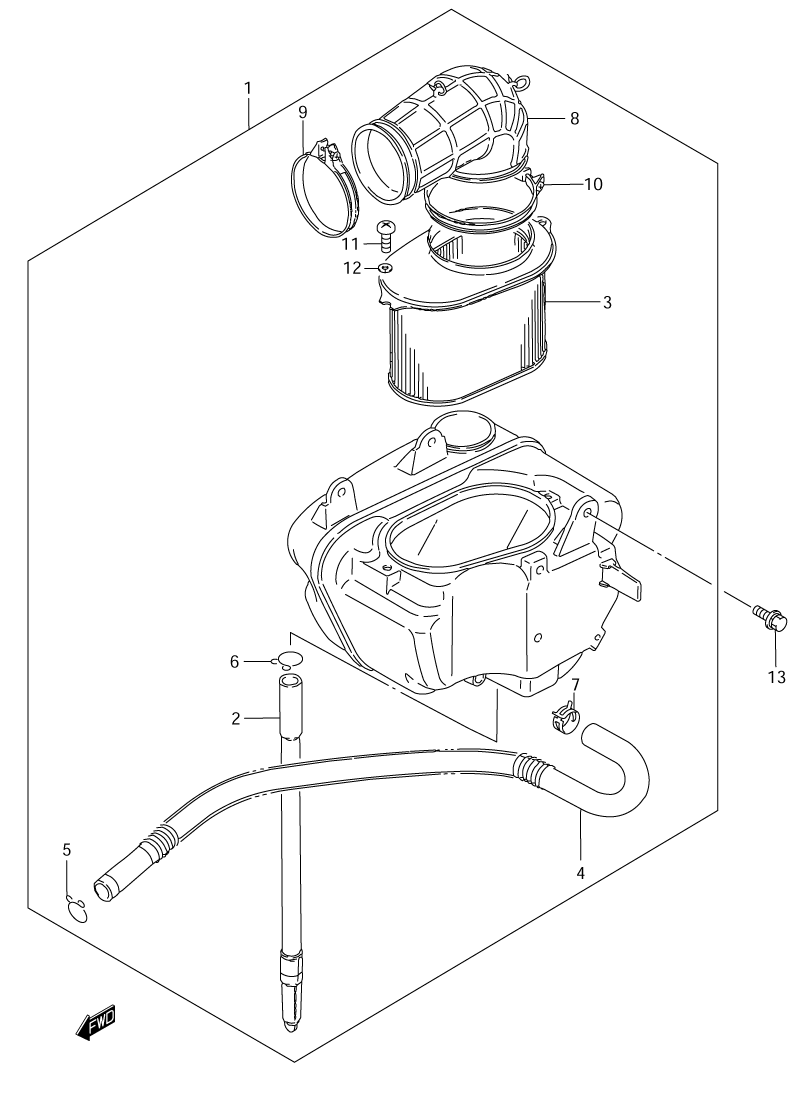

AIR CLEANER (REAR) для Suzuki VS800GL K1 - 2001 года выпуска
-
№АртикулНазвание
-
113700-38A51 CLEANER ASSY., AIR REARCLEANER ASSY., AIR REAR
-
213870-11458 ...TUBE, DRAIN...TUBE, DRAIN
-
313780-38A51 ...FILTER ASSY....FILTER ASSY.
-
413850-38A50 ...TUBE SET, BREATHER...TUBE SET, BREATHER
-
509401-14301 ...CLIP...CLIP
-
609401-13409 ...CLIP...CLIP
-
709401-14404 ...CLIP...CLIP
-
813881-38A50 ...TUBE, OUTLET...TUBE, OUTLET
-
909402-58208 ...CLAMP...CLAMP
-
1009402-78207 ...CLAMP...CLAMP
-
1102112-05083 ...SCREW...SCREW
-
1208321-01053 ...LOCK WASHER...LOCK WASHER
-
1301580-06163 BOLTBOLT
