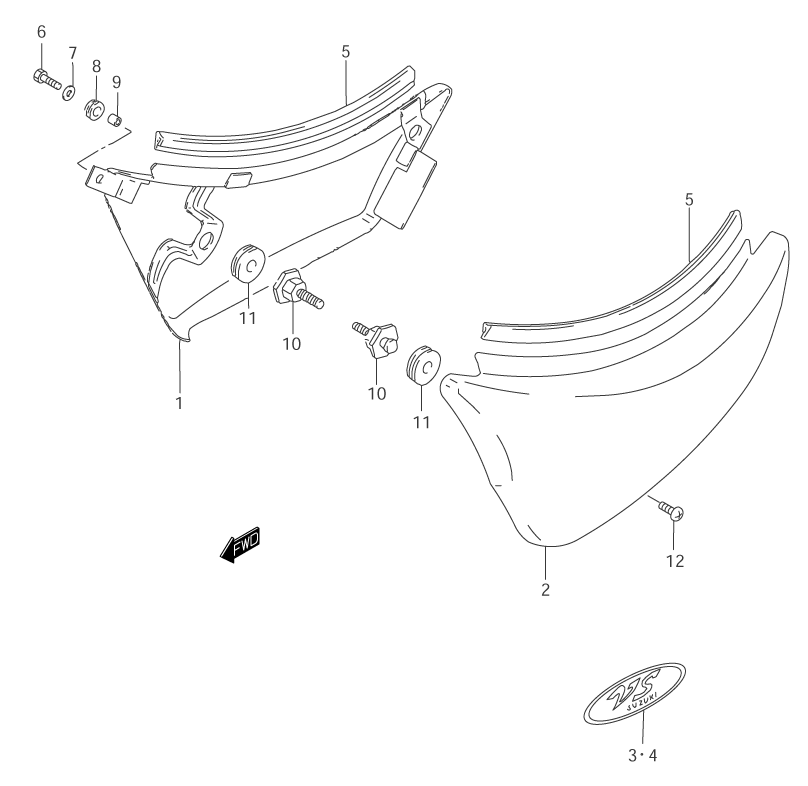

SIDE COVER для Suzuki VS800GL K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-147110-38A00-33J COVER, FRAME (RIGHT) (33J - BLACK)COVER, FRAME (RIGHT) (33J - BLACK)
-
1-247110-38A00-YC6 COVER, FRAME (RIGHT) (YC6 - RED)COVER, FRAME (RIGHT) (YC6 - RED)
-
2-147210-38A00-33J COVER, FRAME (LEFT) (33J - BLACK)COVER, FRAME (LEFT) (33J - BLACK)
-
2-247210-38A00-YC6 COVER, FRAME (LEFT) (YC6 - RED)COVER, FRAME (LEFT) (YC6 - RED)
-
3-168131-38E10-M7F EMBLEM (M7F - BLACK/SILVER/GREEN) (FOR 33J - BLACK)EMBLEM (M7F - BLACK/SILVER/GREEN) (FOR 33J - BLACK)
-
3-268131-38E10-ER7 EMBLEM (ER7 - RED/WHITE) (FOR YC6 - RED)EMBLEM (ER7 - RED/WHITE) (FOR YC6 - RED)
-
568241-04X50-300 MOLDINGMOLDING
-
601550-06167 BOLT, (RIGHT)BOLT, (RIGHT)
-
709160-06084 WASHERWASHER
-
809320-06017 CUSHIONCUSHION
-
909180-06246 SPACERSPACER
-
1047250-38A01 BOSS, FRAME COVERBOSS, FRAME COVER
-
1109320-08013 CUSHIONCUSHION
-
1202142-06103 SCREW, (LEFT)SCREW, (LEFT)
