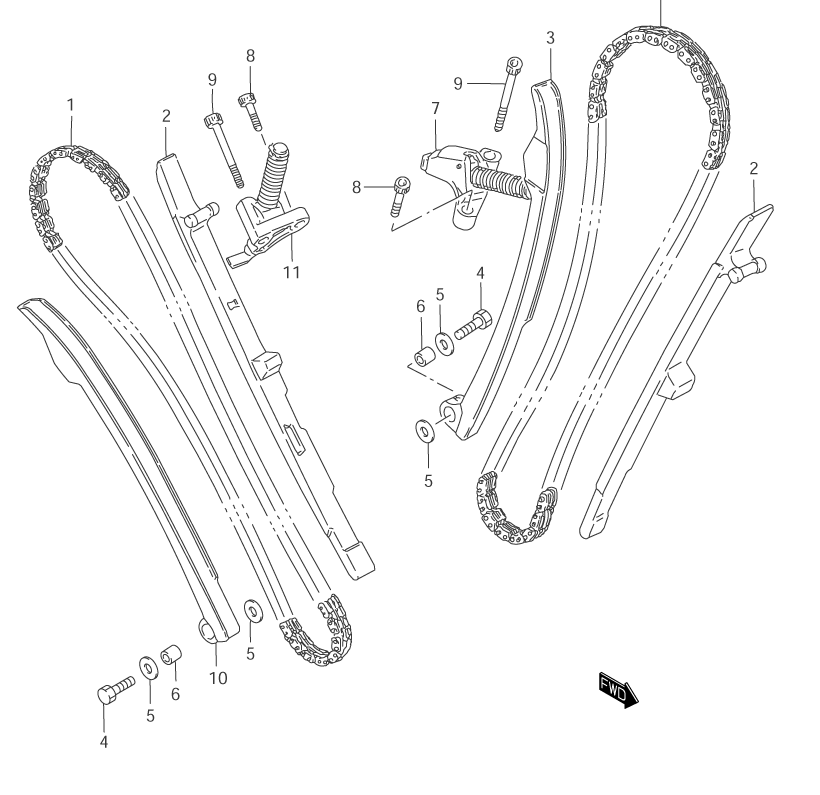

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VS800GL K1 - 2001 года выпуска
-
№АртикулНазвание
-
112760-38A20 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-38A02 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-38A01 TENSIONER, CAM CHAIN FRONTTENSIONER, CAM CHAIN FRONT
-
409100-06129 BOLT (6X26)BOLT (6X26)
-
508211-06182 WASHERWASHER
-
609180-06148 SPACERSPACER
-
712831-38A00 ADJUSTER ASSY., TENSIONER FRONADJUSTER ASSY., TENSIONER FRON
-
807130-06203 BOLTBOLT
-
907130-06453 BOLTBOLT
-
1012816-38A01 TENSIONER, CAM CHAIN REARTENSIONER, CAM CHAIN REAR
-
1112832-38A00 ADJUSTER ASSY., TENSIONER REARADJUSTER ASSY., TENSIONER REAR
