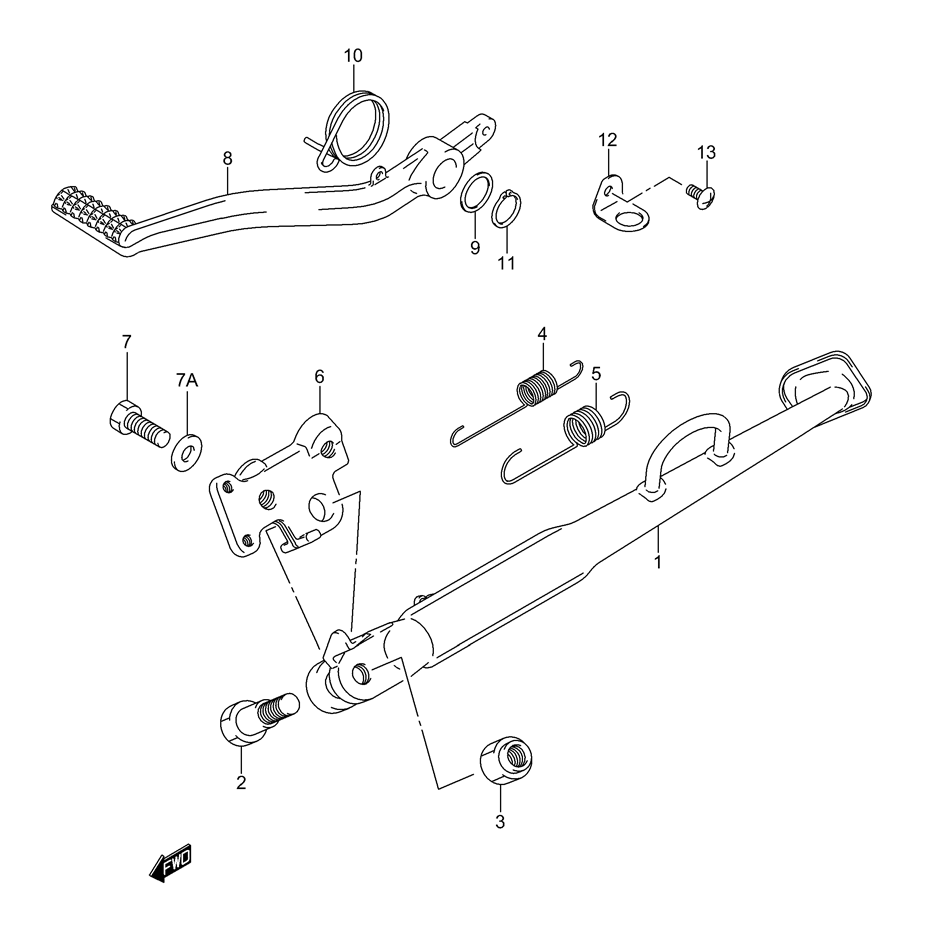

BRAKE PEDAL W/ STAND для Suzuki DL1000 K2 - 2002 года выпуска
-
№АртикулНазвание
-
142310-06G00 STAND, PROPSTAND, PROP
-
209111-10058 BOLTBOLT
-
342321-03FK0 NUTNUT
-
409443-14058 SPRING, INNERSPRING, INNER
-
509443-19011 SPRING, OUTERSPRING, OUTER
-
642330-06G00 BRACKET, PROP STANDBRACKET, PROP STAND
-
709100-12084 BOLTBOLT
-
7A09160-12061 WASHERWASHER
-
843111-06G00 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHERWASHER
-
1009448-41005 SPRINGSPRING
-
1108331-31186 CLIPCLIP
-
1243251-06G00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1302142-06123 SCREWSCREW
