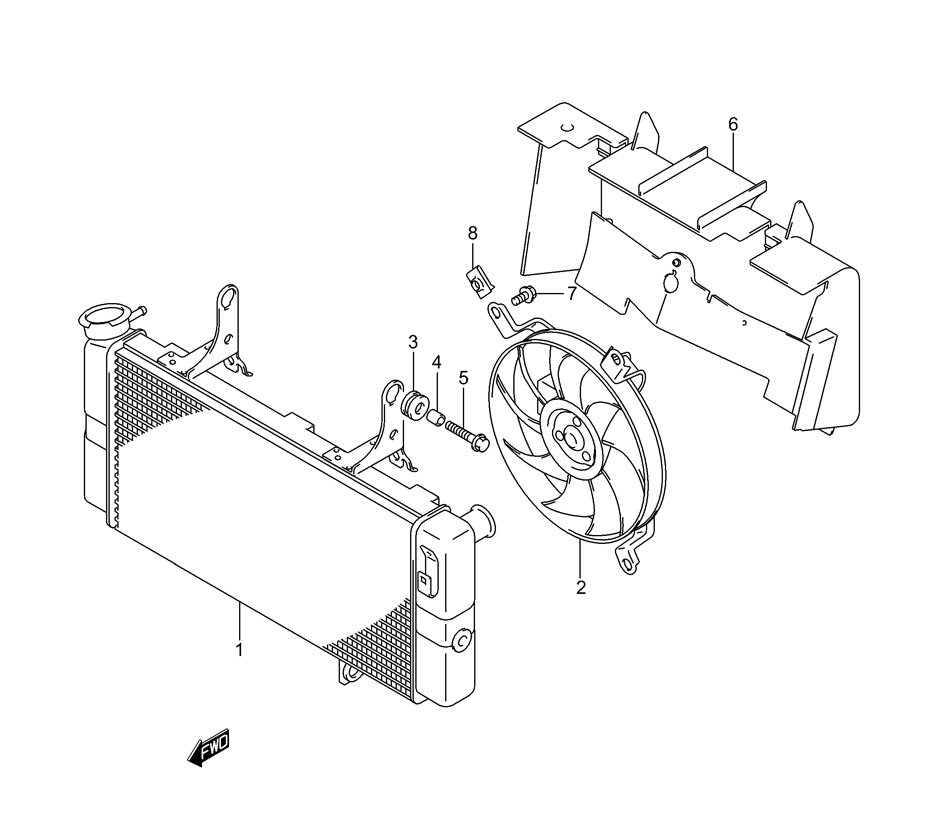

RADIATOR для Suzuki DL1000 K2 - 2002 года выпуска
-
№АртикулНазвание
-
117710-06G00 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
217800-06G00 FAN ASSYFAN ASSY
-
309320-10042 CUSHIONCUSHION
-
409180-06290 SPACERSPACER
-
509118-06097 BOLT (6X20)BOLT (6X20)
-
617760-06G00 SHIELD, RADIATOR HEATSHIELD, RADIATOR HEAT
-
717711-40F00 BOLTBOLT
-
817712-40F00 NUTNUT
