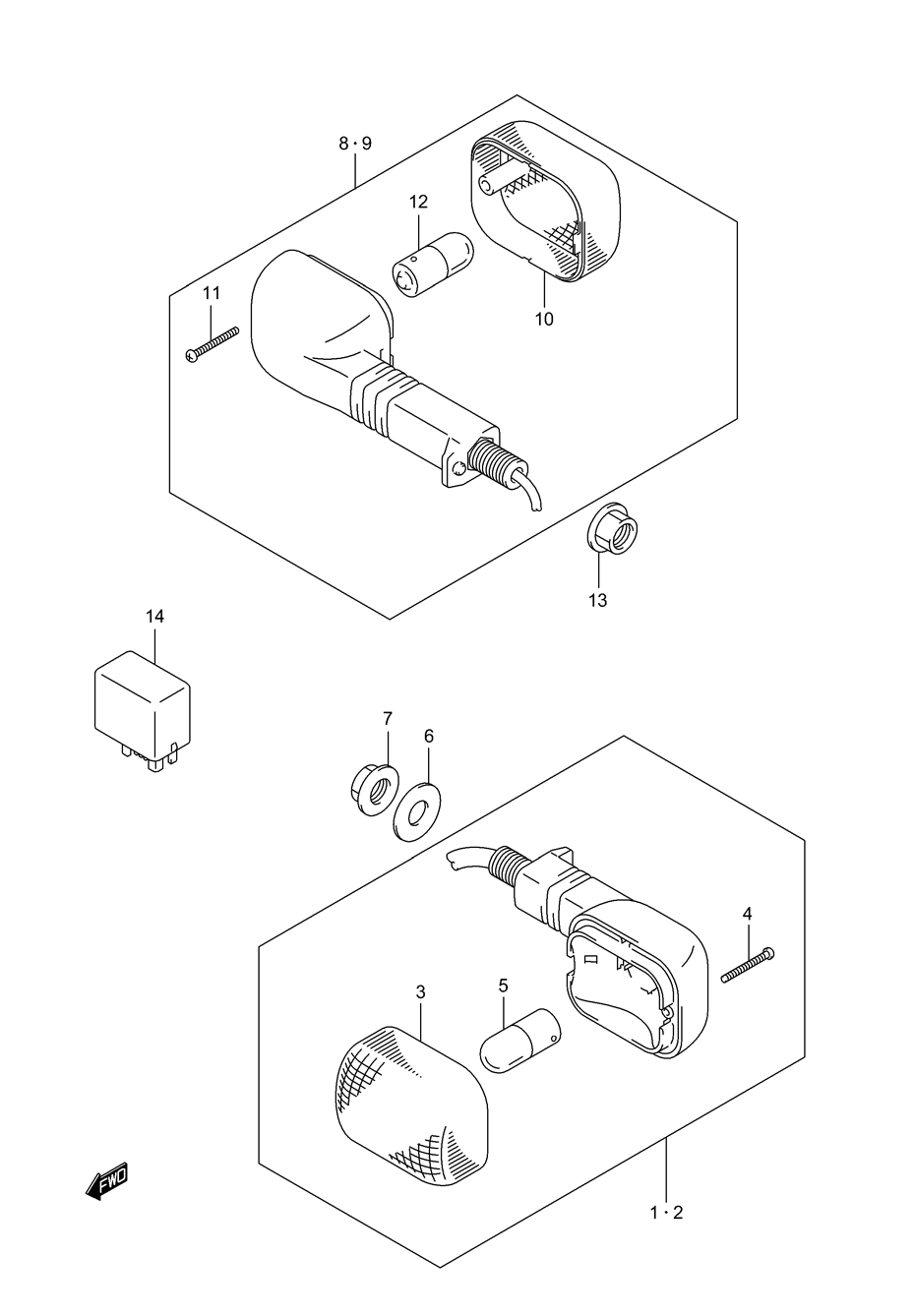

TURN SIGNAL ASSY. для Suzuki DL1000 K2 - 2002 года выпуска
-
№АртикулНазвание
-
135601-06G30 LAMP ASSY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSY, FRONT TURNSIGNAL RIGHT HAND
-
235602-06G30 LAMP ASSY, FRONT TURNSIGNAL LEFT HANDLAMP ASSY, FRONT TURNSIGNAL LEFT HAND
-
335612-06G00 LENSLENS
-
435623-06G00 SCREWSCREW
-
509471-12177 BULB (12V,10W)BULB (12V,10W)
-
609160-12092 WASHERWASHER
-
708316-10123 NUTNUT
-
835601-06G00 LAMP ASSY, REAR TURNSIGNAL RIGHT HANDLAMP ASSY, REAR TURNSIGNAL RIGHT HAND
-
935602-06G00 LAMP ASSY, REAR TURNSIGNAL LEFT HANDLAMP ASSY, REAR TURNSIGNAL LEFT HAND
-
1035612-06G00 LENSLENS
-
1135623-06G00 SCREWSCREW
-
1209471-12177 BULB (12V,10W)BULB (12V,10W)
-
1308316-10123 NUTNUT
-
1438610-12FA0 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
