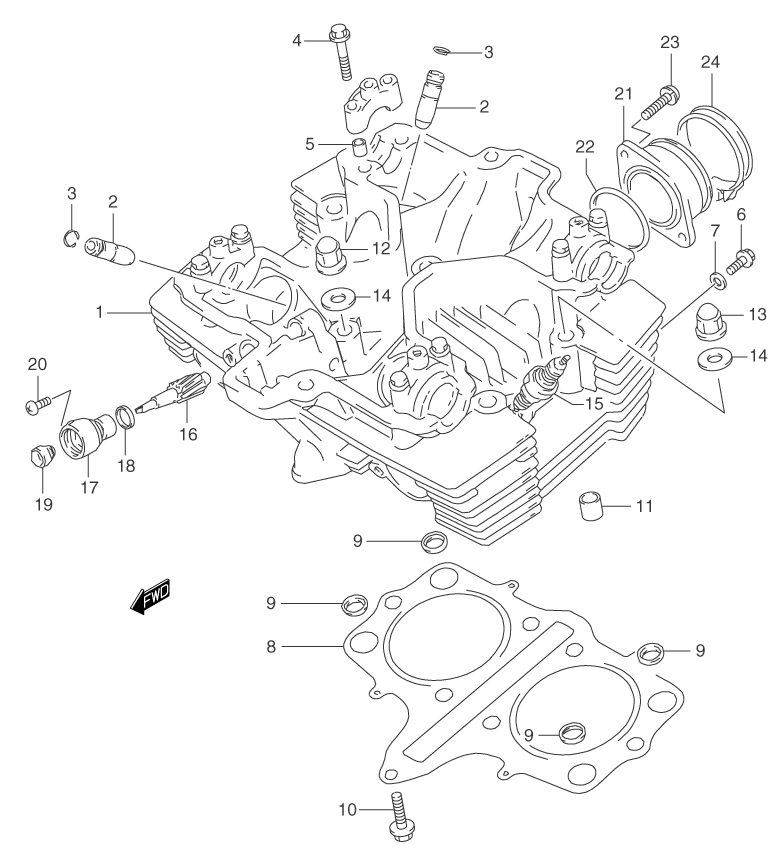

CYLINDER HEAD для Suzuki GS500 K2 - 2002 года выпуска
-
№АртикулНазвание
-
111100-01D20 HEAD ASSY., CYLINDERHEAD ASSY., CYLINDER
-
211115-45740 ...GUIDE, VALVE(0S:0.3)...GUIDE, VALVE(0S:0.3)
-
309381-10003 ...RING, VALVE GUIDE...RING, VALVE GUIDE
-
409103-06071 ...BOLT (6X39)...BOLT (6X39)
-
509206-08001 ...PIN...PIN
-
607120-06123 ...BOLT, OIL GALLERY...BOLT, OIL GALLERY
-
709168-06023 ...GASKET...GASKET
-
811141-01D10 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
911143-06B00 O-RING, CYLINDER HEADO-RING, CYLINDER HEAD
-
1001550-06303 BOLTBOLT
-
1104211-11189 PINPIN
-
1209159-10069 NUTNUT
-
1309159-10026 NUTNUT
-
1409168-10031 GASKETGASKET
-
15-109482-00334 SPARK PLUG (NGK,DPR8EA-9)SPARK PLUG (NGK,DPR8EA-9)
-
15-209482-00335 SPARK PLUG (ND,X24EPR-U9)SPARK PLUG (ND,X24EPR-U9)
-
1626431-45002 GEAR, TACHO. DRIVEN (NT:10)GEAR, TACHO. DRIVEN (NT:10)
-
1726441-49000 SLEEVESLEEVE
-
1826451-45000 SEAL BANDSEAL BAND
-
1909289-05002 OIL SEAL (5X12X8)OIL SEAL (5X12X8)
-
2009128-05101 SCREW (5X12)SCREW (5X12)
-
2113101-01D40 PIPE, INTAKEPIPE, INTAKE
-
2209280-40010 O-RING (D:2.4,ID:39.7)O-RING (D:2.4,ID:39.7)
-
2302112-16163 SCREWSCREW
-
2409402-54208 CLAMPCLAMP
