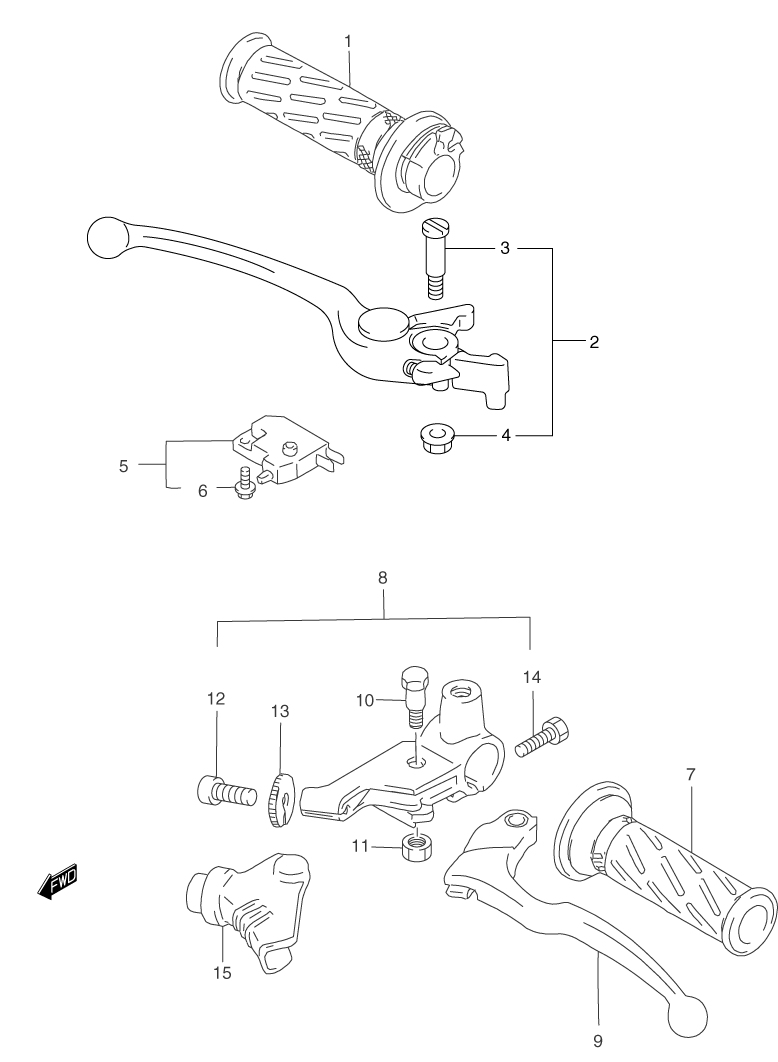

HANDLEBAR - LEVERS / SWITCHES/GRIPS для Suzuki GS500 K2 - 2002 года выпуска
-
№АртикулНазвание
-
157110-22D02 GRIP, THROTTLEGRIP, THROTTLE
-
257300-33E01 LEVER ASSY., BRAKELEVER ASSY., BRAKE
-
357431-17C00 ...BOLT, PIVOT...BOLT, PIVOT
-
408316-10063 ...NUT...NUT
-
557460-17C00 SWITCH ASSY., STOPSWITCH ASSY., STOP
-
657465-17C00 ...SCREW...SCREW
-
757211-22D01 GRIP (LEFT)GRIP (LEFT)
-
857500-01D01 LEVER ASSY., CLUTCHLEVER ASSY., CLUTCH
-
957620-01D00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057531-14A00 ...BOLT...BOLT
-
1108319-21063 ...NUT...NUT
-
1257441-11010 ...ADJUSTER...ADJUSTER
-
1357442-11010 ...NUT...NUT
-
1401547-06203 ...BOLT...BOLT
-
1557661-33400 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
