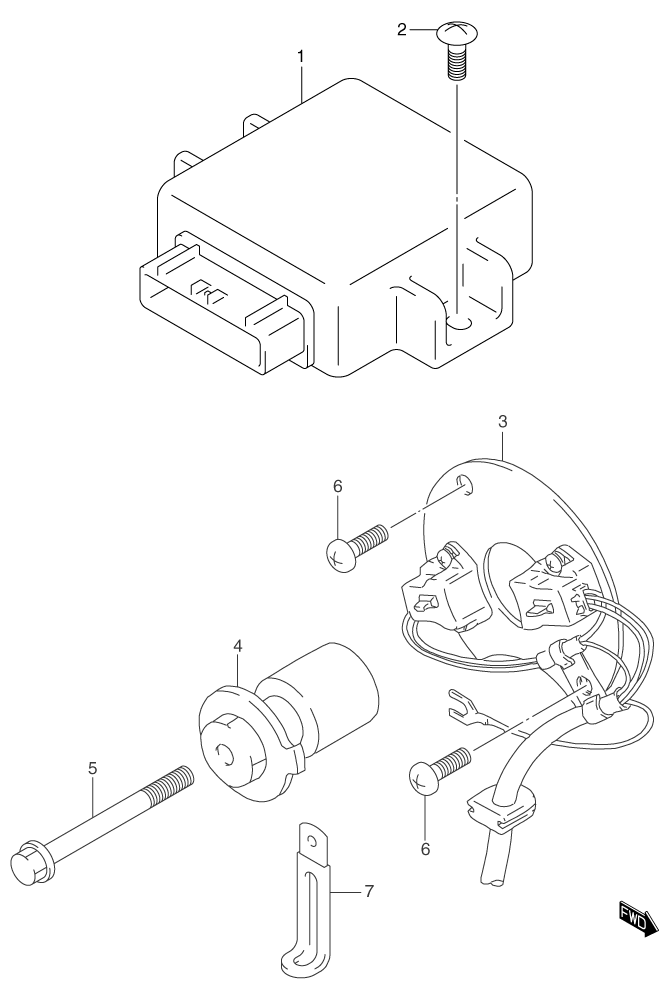

IGNITER ASSY. W/ SIGNAL GENERATOR для Suzuki GS500 K2 - 2002 года выпуска
-
№АртикулНазвание
-
132900-01D10 IGNITERIGNITER
-
202142-06163 SCREWSCREW
-
333110-44420 SIGNAL GENERATOR ASSY.SIGNAL GENERATOR ASSY.
-
433120-01D10 ROTOR, SIGNALROTOR, SIGNAL
-
509103-06064 BOLT (6X60)BOLT (6X60)
-
602112-05103 SCREWSCREW
-
709404-06432 CLAMP (L:80)CLAMP (L:80)
