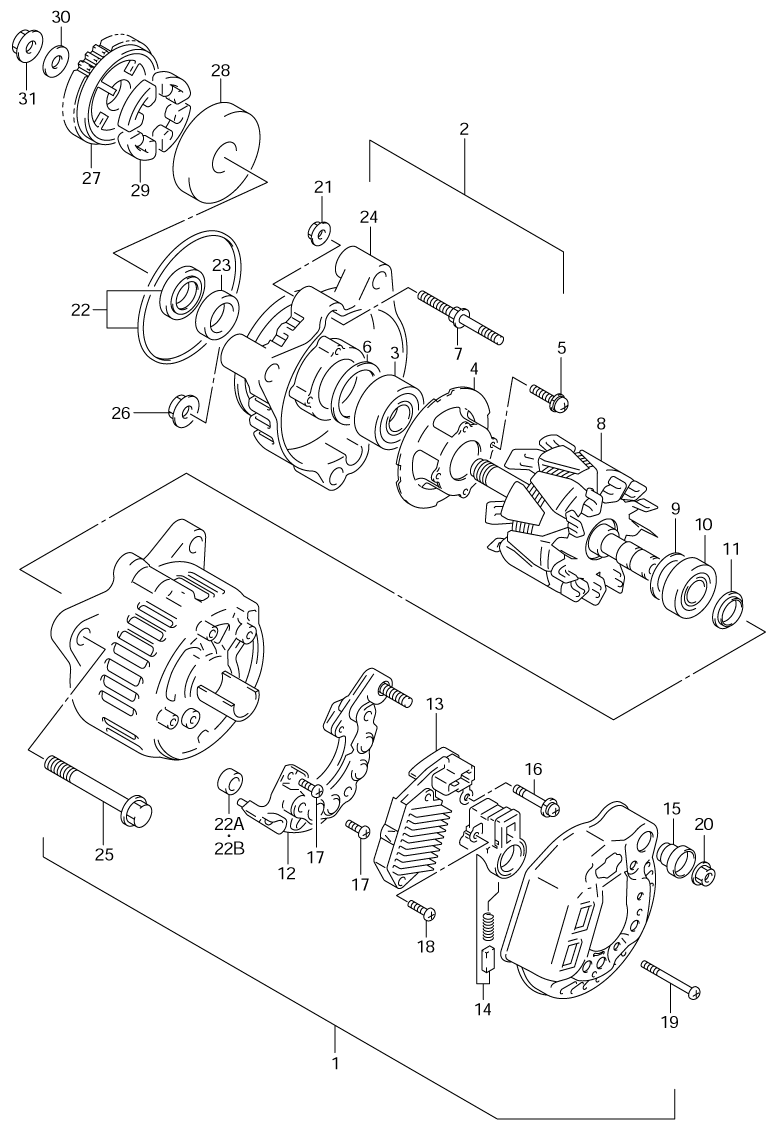

ALTERNATOR для Suzuki GSF600S K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-231400-03F03 ALTERNATOR ASSY.ALTERNATOR ASSY.
-
231580-03F00 ...FRAME, DRIVE END...FRAME, DRIVE END
-
331612-06B00 ......BREARING......BREARING
-
431585-03F00 ......RETAINER......RETAINER
-
531586-03F00 ......SCREW (4X14)......SCREW (4X14)
-
631613-48B00 ......COVER, BEARING......COVER, BEARING
-
731587-85250 ...STUD BOLT...STUD BOLT
-
831710-03F00 ...ROTOR ASSY....ROTOR ASSY.
-
931613-82610 ...COVER, BEARING...COVER, BEARING
-
1031612-48B00 ...BEARING...BEARING
-
1131613-27A10 ...COVER, NO.2...COVER, NO.2
-
1231621-03F00 ...HOLDER, RECTIFIER...HOLDER, RECTIFIER
-
13-232500-03F10 ...REGULATOR ASSY....REGULATOR ASSY.
-
1431656-03F00 ...HOLDER, BRUSH...HOLDER, BRUSH
-
1531514-85250 ...INSULATOR, TERMINAL...INSULATOR, TERMINAL
-
1602112-34253 ...SCREW...SCREW
-
1702112-04063 ...SCREW...SCREW
-
1802112-04087 ...SCREW...SCREW
-
1902112-04253 ...SCREW...SCREW
-
2008361-15063 ...NUT...NUT
-
2108316-10053 ...NUT...NUT
-
2231780-27X50 ...SERVICE KIT, A...SERVICE KIT, A
-
2331776-06B00 ...SPACER...SPACER
-
24-131611-03F01 ...FRAME, END...FRAME, END
-
2501550-08653 BOLTBOLT
-
2608361-35068 NUTNUT
-
2722730-19C02 GEAR, GENERATOR DRIVEN (NT:30GEAR, GENERATOR DRIVEN (NT:30
-
2822733-27A05 HOUSING DAMPERHOUSING DAMPER
-
2921231-06B00 DAMPERDAMPER
-
3008211-10283 WASHERWASHER
-
3108316-20103 NUTNUT
