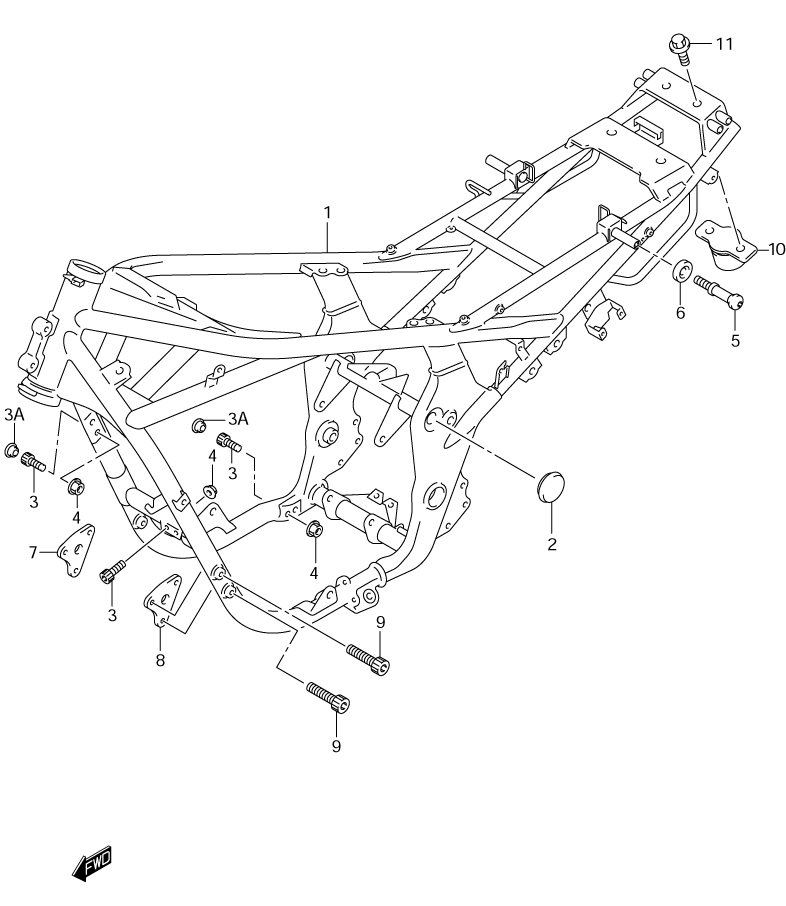

FRAME для Suzuki GSF600S K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-141100-31F00-19A FRAME (19A - RED)FRAME (19A - RED)
-
1-241100-31F00-33J FRAME (33J - BLACK)FRAME (33J - BLACK)
-
1-341100-31F00-YC2 FRAME (YC2 - BLUE)FRAME (YC2 - BLUE)
-
1-441100-31F00-YD8 FRAME (YD8 - SILVER)FRAME (YD8 - SILVER)
-
243585-03F00 CAP, PIVOTCAP, PIVOT
-
309106-10068 BOLTBOLT
-
3A09250-08012 CAP, (RIGHT)CAP, (RIGHT)
-
408319-31103 NUTNUT
-
546315-31F00 HOOK, SEAT RAILHOOK, SEAT RAIL
-
646317-31F00 WASHERWASHER
-
7-141910-26E10-19A PLATE, MOUNT - RIGHT (19A - RED)PLATE, MOUNT - RIGHT (19A - RED)
-
7-241910-26E10-33J PLATE, MOUNT - RIGHT (33J - BLACK)PLATE, MOUNT - RIGHT (33J - BLACK)
-
7-341910-26E10-YC2 PLATE, MOUNT - RIGHT (YC2 - BLUE)PLATE, MOUNT - RIGHT (YC2 - BLUE)
-
7-441910-26E10-YD8 PLATE, MOUNT - RIGHT (YD8 - SILVER)PLATE, MOUNT - RIGHT (YD8 - SILVER)
-
8-141920-26E00-19A PLATE, MOUNT - LEFT (19A - RED)PLATE, MOUNT - LEFT (19A - RED)
-
8-241920-26E00-33J PLATE, MOUNT - LEFT (33J - BLACK)PLATE, MOUNT - LEFT (33J - BLACK)
-
8-341920-26E00-YC2 PLATE, MOUNT - LEFT (YC2 - BLUE)PLATE, MOUNT - LEFT (YC2 - BLUE)
-
8-441920-26E00-YD8 PLATE, MOUNT - LEFT (YD8 - SILVER)PLATE, MOUNT - LEFT (YD8 - SILVER)
-
907130-08503 BOLTBOLT
-
1042550-31F00 DAMPER, FRAME (REAR)DAMPER, FRAME (REAR)
-
1101550-06123 BOLTBOLT
