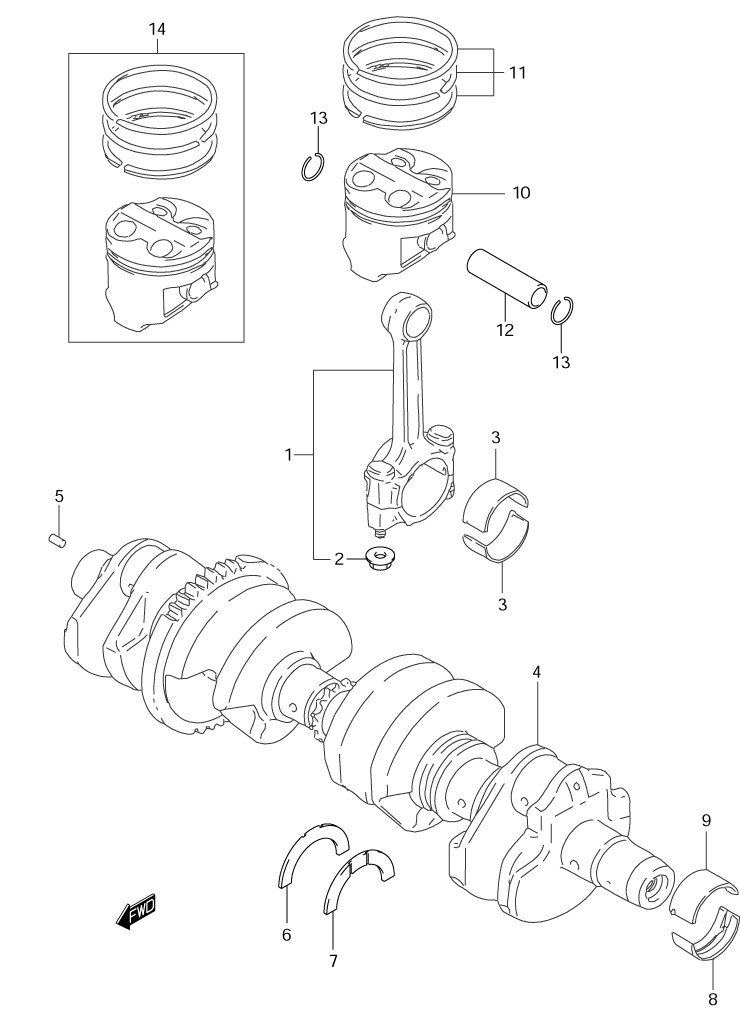

CRANKSHAFT W/ PISTON для Suzuki GSF600S K2 - 2002 года выпуска
-
№АртикулНазвание
-
112160-27A14 ROD ASSY., CONNECTINGROD ASSY., CONNECTING
-
209159-08033 ...NUT...NUT
-
3-112164-26E00-0A0 ...BEARING, CRANK PIN (BREEN)...BEARING, CRANK PIN (BREEN)
-
3-212164-26E00-0B0 ...BEARING, CRANK PIN (BLACK)...BEARING, CRANK PIN (BLACK)
-
3-312164-26E00-0C0 ...BEARING, CRANK PIN (BROWN)...BEARING, CRANK PIN (BROWN)
-
3-412164-26E00-0D0 ...BEARING, CRANK PIN (YELLOW)...BEARING, CRANK PIN (YELLOW)
-
412000-26831 CRANKSHAFT SETCRANKSHAFT SET
-
504221-04089 ...PIN...PIN
-
612228-43414 ...BEARING, THRUST (RIGHT/GREEN)...BEARING, THRUST (RIGHT/GREEN)
-
7-112228-43411 ...BEARING, THRUST (LEFT/RED)...BEARING, THRUST (LEFT/RED)
-
7-212228-43412 ...BEARING, THRUST (LEFT/BLACK)...BEARING, THRUST (LEFT/BLACK)
-
7-312228-43413 ...BEARING, THRUST (LEFT/BLUE)...BEARING, THRUST (LEFT/BLUE)
-
7-412228-43414 ...BEARING, THRUST (LEFT/GREEN)...BEARING, THRUST (LEFT/GREEN)
-
7-512228-43415 ...BEARING, THRUST (LEFT/YELLOW)...BEARING, THRUST (LEFT/YELLOW)
-
7-612228-43416 ...BEARING, THRUST (LEFT/WHITE)...BEARING, THRUST (LEFT/WHITE)
-
8-112229-27A00-0A0 BEARING, CRANKSHAFT (GREEN/LOWER)BEARING, CRANKSHAFT (GREEN/LOWER)
-
8-212229-27A00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
8-312229-27A00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
8-412229-27A00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
9-112229-27A10-0A0 BEARING, CRANKSHAFT (GREEN/UPPER)BEARING, CRANKSHAFT (GREEN/UPPER)
-
9-212229-27A10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
9-312229-27A10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
9-412229-27A10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
1012111-19C30-0F0 PISTONPISTON
-
1112140-19C20 RING SET, PISTONRING SET, PISTON
-
1212151-19C02 PIN, PISTONPIN, PISTON
-
1309381-18003 CIRCLIPCIRCLIP
-
1412100-19C30-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
