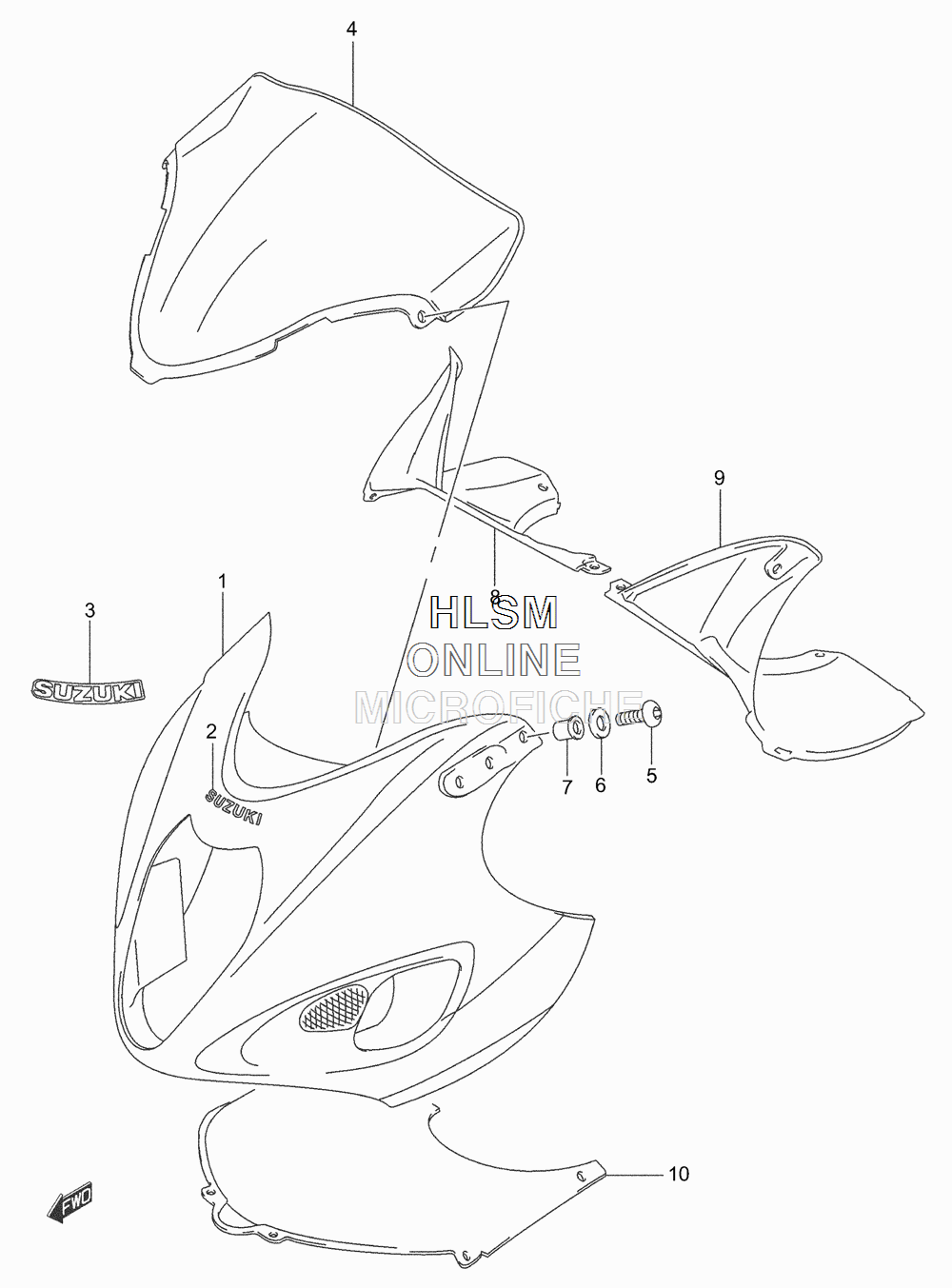

COWLING BODY для Suzuki GSX-1300R K3 - 2003 года выпуска
-
№АртикулНазвание
-
194401-24F60-CN5 COWLING ASSY, BODY (INCL. 2-3)COWLING ASSY, BODY (INCL. 2-3)
-
194401-24F60-KT7 COWLING ASSY, BODY (INCL. 2-3)COWLING ASSY, BODY (INCL. 2-3)
-
194401-24F70-LA1 COWLING ASSY, BODY (INCL. 2-3)COWLING ASSY, BODY (INCL. 2-3)
-
268281-24F10-CN5 EMBLEM (FOR CN5)EMBLEM (FOR CN5)
-
268281-24F10-KT7 EMBLEM (FOR KT7)EMBLEM (FOR KT7)
-
268281-24F20-GW5 EMBLEM (FOR LA1)EMBLEM (FOR LA1)
-
494611-24F00 WINDSCREENWINDSCREEN
-
509139-05025 SCREWSCREW
-
608322-01053 WASHERWASHER
-
709159-05019 NUTNUT
-
894641-24F00 PANEL, UPPER RIGHT HANDPANEL, UPPER RIGHT HAND
-
994651-24F00 PANEL, UPPER LEFT HANDPANEL, UPPER LEFT HAND
-
1094419-24F00 COVER, BODY COWLCOVER, BODY COWL
