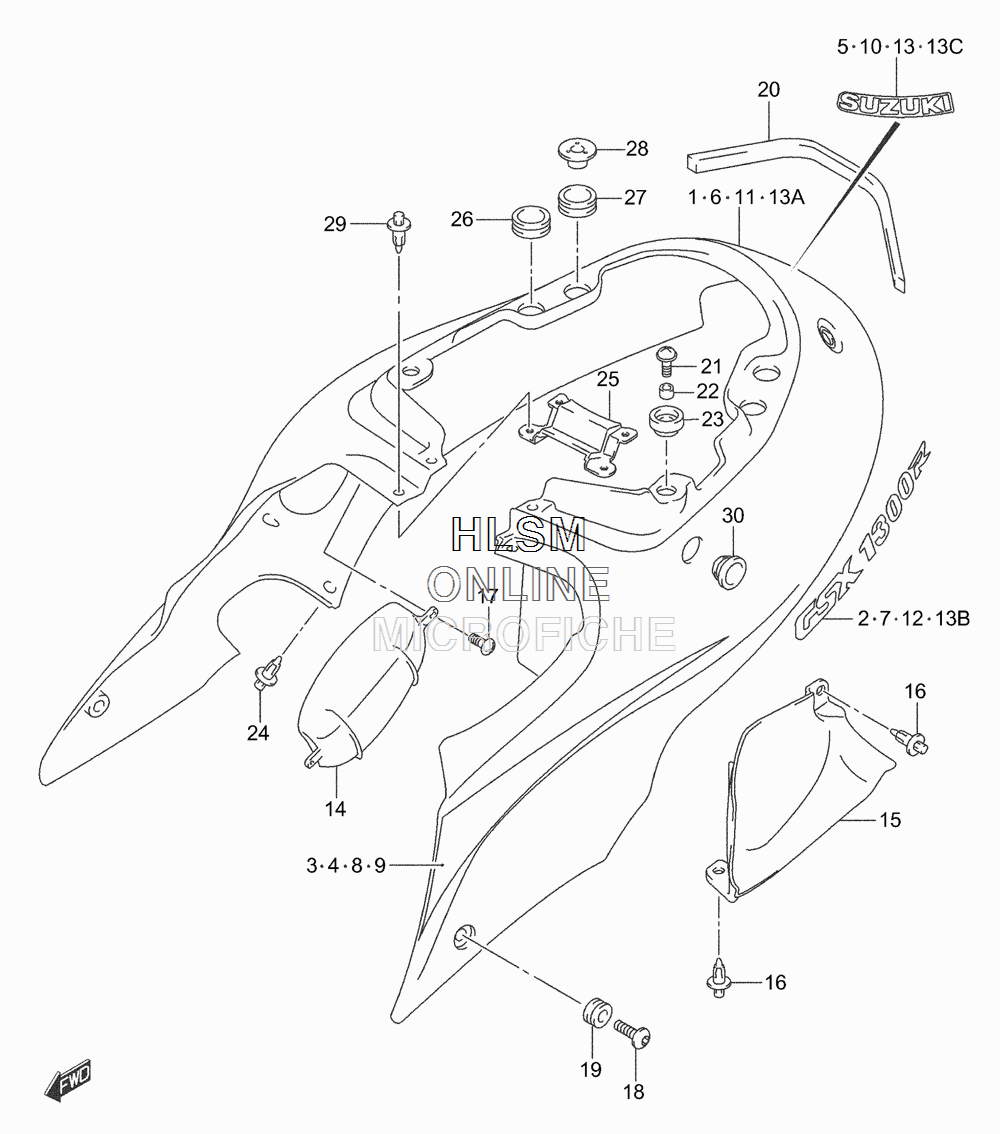

SIDE COVER для Suzuki GSX-1300R K3 - 2003 года выпуска
-
№АртикулНазвание
-
147110-24F60-YD8 COVER, FRAME (SILVER) (FOR CN5)COVER, FRAME (SILVER) (FOR CN5)
-
147110-24F60-YU8 COVER, FRAME (GRAY) (FOR KT7)COVER, FRAME (GRAY) (FOR KT7)
-
268131-24F30-LK7 EMBLEM (FOR YD8)EMBLEM (FOR YD8)
-
268131-24F30-LK8 EMBLEM (FOR YU8)EMBLEM (FOR YU8)
-
368135-24F00-1LF TAPE, RIGHT HAND (BLUE) (FOR YD8)TAPE, RIGHT HAND (BLUE) (FOR YD8)
-
368135-24F00-33J TAPE, RIGHT HAND (BLACK) (FOR YU8)TAPE, RIGHT HAND (BLACK) (FOR YU8)
-
465145-24F00-1LF TAPE, LEFT HAND (BLUE) (FOR YD8)TAPE, LEFT HAND (BLUE) (FOR YD8)
-
468145-24F00-33J TAPE, LEFT HAND (BLACK) (FOR YU8)TAPE, LEFT HAND (BLACK) (FOR YU8)
-
568641-19F00-1LF EMBLEM, REAR (BLUE) (FOR YD8)EMBLEM, REAR (BLUE) (FOR YD8)
-
568641-19F00-33J EMBLEM, REAR (BLACK) (FOR YU8)EMBLEM, REAR (BLACK) (FOR YU8)
-
647110-24F70-YD8 COVER, FRAME (SILVER) (FOR LA1) (INCL. 7-10)COVER, FRAME (SILVER) (FOR LA1) (INCL. 7-10)
-
768131-24F30-LK9 EMBLEMEMBLEM
-
868135-24F00-YU8 TAPE, RIGHT HAND (GRAY)TAPE, RIGHT HAND (GRAY)
-
968145-24F00-YU8 TAPE, LEFT HAND (GRAY)TAPE, LEFT HAND (GRAY)
-
1068641-14F30-GW5 EMBLEM, REAREMBLEM, REAR
-
1447511-24F10 COVER, FRAME HEAD RIGHT HANDCOVER, FRAME HEAD RIGHT HAND
-
1547521-24F00 COVER, FRAME HEAD LEFT HANDCOVER, FRAME HEAD LEFT HAND
-
1609409-06314-5PK CLIP, LEFT HAND (BLACK)CLIP, LEFT HAND (BLACK)
-
1703541-04123 SCREWSCREW
-
1809139-06087 SCREWSCREW
-
1909320-09016 CUSHIONCUSHION
-
2047161-27E00 CUSHION, REARCUSHION, REAR
-
2109136-06105 SCREW, UPPERSCREW, UPPER
-
2209180-06288 SPACERSPACER
-
2309320-10045 CUSHIONCUSHION
-
2409409-06314-5PK CLIP, LOWER (BLACK)CLIP, LOWER (BLACK)
-
2547311-24F00-YD8 COVER, CENTER (SILVER) (FOR CN5,LA1)COVER, CENTER (SILVER) (FOR CN5,LA1)
-
2547311-24F00-YU8 COVER, CENTER (GRAY) (FOR KT7)COVER, CENTER (GRAY) (FOR KT7)
-
2647191-24F00 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
2747191-24F30 CUSHION, PILLION HANDLE REARCUSHION, PILLION HANDLE REAR
-
2847190-24F20 WASHER, REARWASHER, REAR
-
2909409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
3047191-24F20 CUSHION, CENTERCUSHION, CENTER
