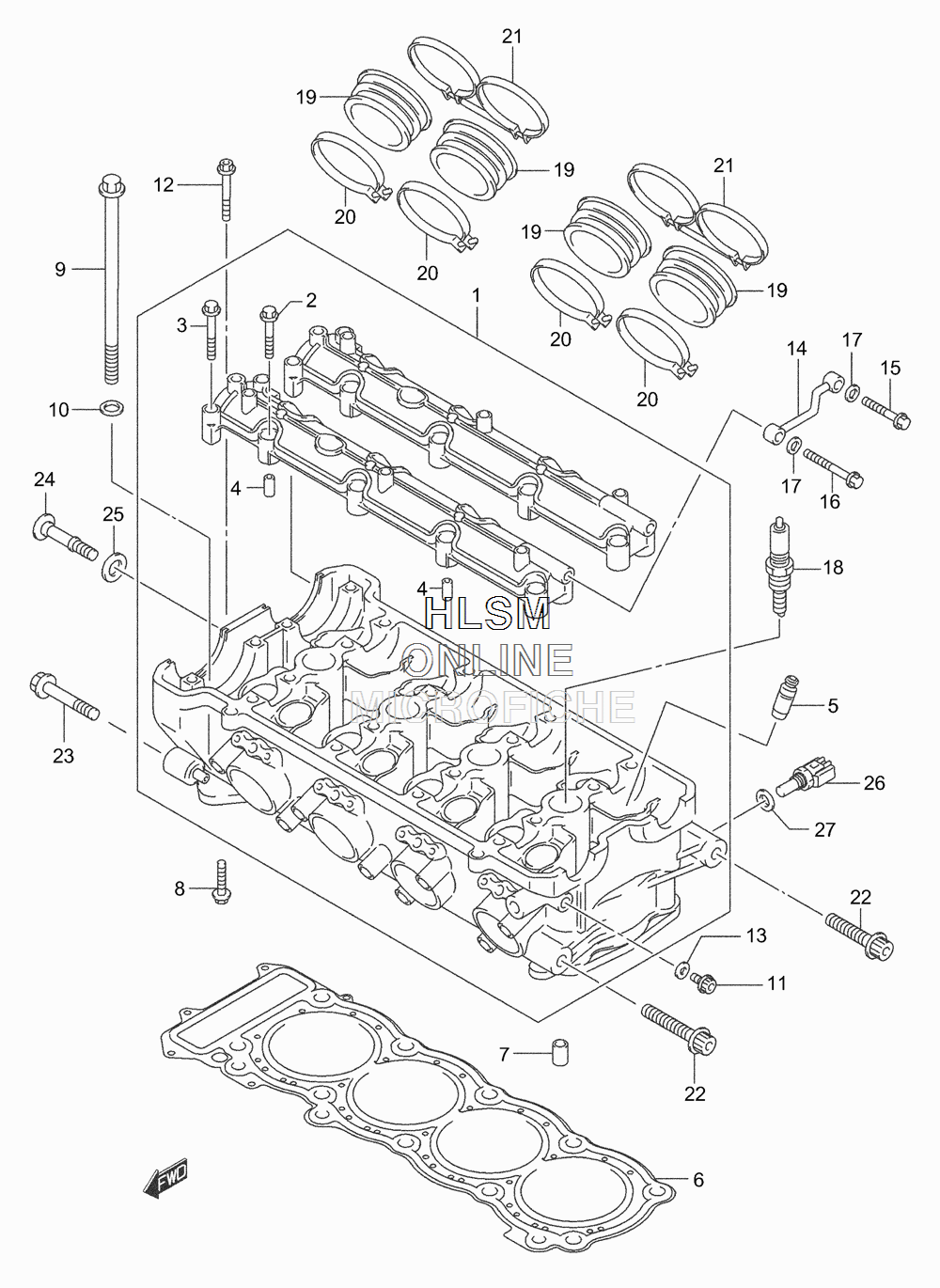

CYLINDER HEAD для Suzuki GSX-1300R K3 - 2003 года выпуска
-
№АртикулНазвание
-
111100-24F00 HEAD ASSY, CYLINDER (INCL. 2-4)HEAD ASSY, CYLINDER (INCL. 2-4)
-
209103-06026 BOLT (6X39)BOLT (6X39)
-
309103-06165 BOLT (6X45)BOLT (6X45)
-
409206-08007 PINPIN
-
511115-14D71 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-24F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-11169 PINPIN
-
801550-06303 BOLTBOLT
-
909103-10276 BOLT (10X175)BOLT (10X175)
-
1009160-10082 WASHERWASHER
-
1107120-06123 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1207120-06503 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
1309168-06023 GASKETGASKET
-
1411131-33E00 PIPE, OILPIPE, OIL
-
1501550-06353 BOLTBOLT
-
1601550-06453 BOLTBOLT
-
1708322-01063 WASHERWASHER
-
1809482-00458 SPARK PLUG (NGK,CR9E)SPARK PLUG (NGK,CR9E)
-
1809482-00459 SPARK PLUG (DENSO,U27ESR-N)SPARK PLUG (DENSO,U27ESR-N)
-
1809482-00456 SPARK PLUG (NGK,CR8E) (OPT)SPARK PLUG (NGK,CR8E) (OPT)
-
1809482-00460 SPARK PLUG (NGK,CR10E) (OPT)SPARK PLUG (NGK,CR10E) (OPT)
-
1809482-00457 SPARK PLUG (DENSO,U24ESR-N) (OPT)SPARK PLUG (DENSO,U24ESR-N) (OPT)
-
1809482-00461 SPARK PLUG (DENSO,U31ESR-N) (OPT)SPARK PLUG (DENSO,U31ESR-N) (OPT)
-
1913111-24F00 PIPE, INTAKE NO.1PIPE, INTAKE NO.1
-
2009402-60208 CLAMPCLAMP
-
2113170-24F01 CLAMP,INTAKECLAMP,INTAKE
-
2207120-10453 BOLTBOLT
-
2307120-10553 BOLTBOLT
-
2411161-33E00 BOLT, CYL HEAD SIDE FACEBOLT, CYL HEAD SIDE FACE
-
2511191-13E00 WASHERWASHER
-
2613650-10G00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2709168-12017 GASKETGASKET
