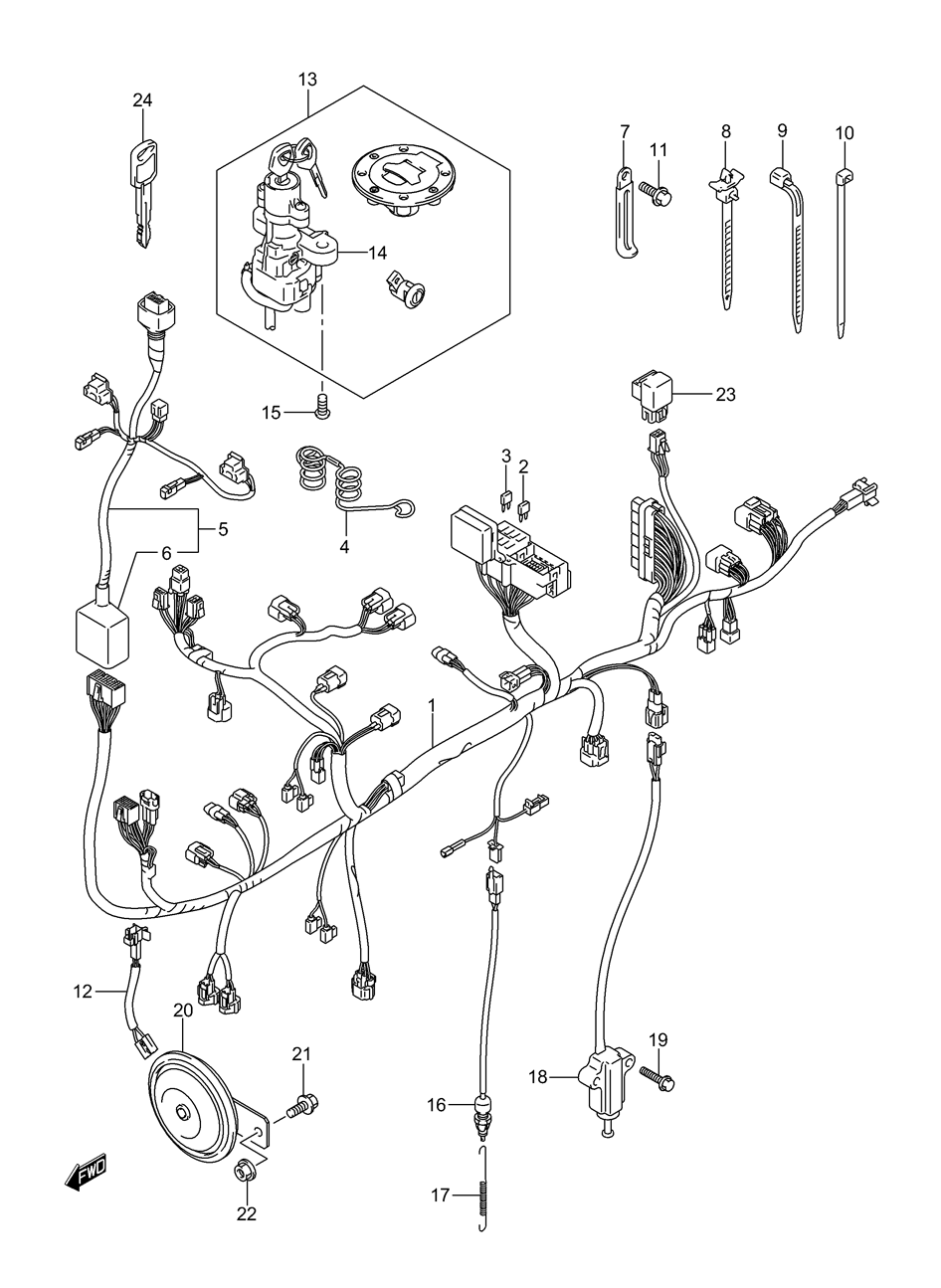

ELECTRICAL - WIRING HARNESS для Suzuki DL650 K4 V-STROM - 2004 года выпуска
-
№АртикулНазвание
-
136610-27G30 HARNESS, WIRING, NO.1HARNESS, WIRING, NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436619-06G01 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-27G30 HARNESS, WIRING, NO.2HARNESS, WIRING, NO.2
-
636618-18G10 COVER, CONNECTORCOVER, CONNECTOR
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
709404-06431 CLAMP (L:80)CLAMP (L:80)
-
809407-11402 CLAMPCLAMP
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1101547-06103 BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1236852-06G00 WIRE, HORN LEADWIRE, HORN LEAD
-
1337000-27860 LOCK SET (EXCEPT CALIF)LOCK SET (EXCEPT CALIF)
-
1337000-27870 LOCK SET (CALIF ONLY)LOCK SET (CALIF ONLY)
-
1437100-27G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1509139-08016 BOLT (8X20)BOLT (8X20)
-
1637740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1709443-06012 SPRINGSPRING
-
1837840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1901550-06163 BOLTBOLT
-
2038500-27G00 HORN ASSYHORN ASSY
-
2101550-08123 BOLT, HORNBOLT, HORN
-
2208316-10083 NUT, HORNNUT, HORN
-
2338740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2437146-33E00 KEY, BLANKKEY, BLANK
