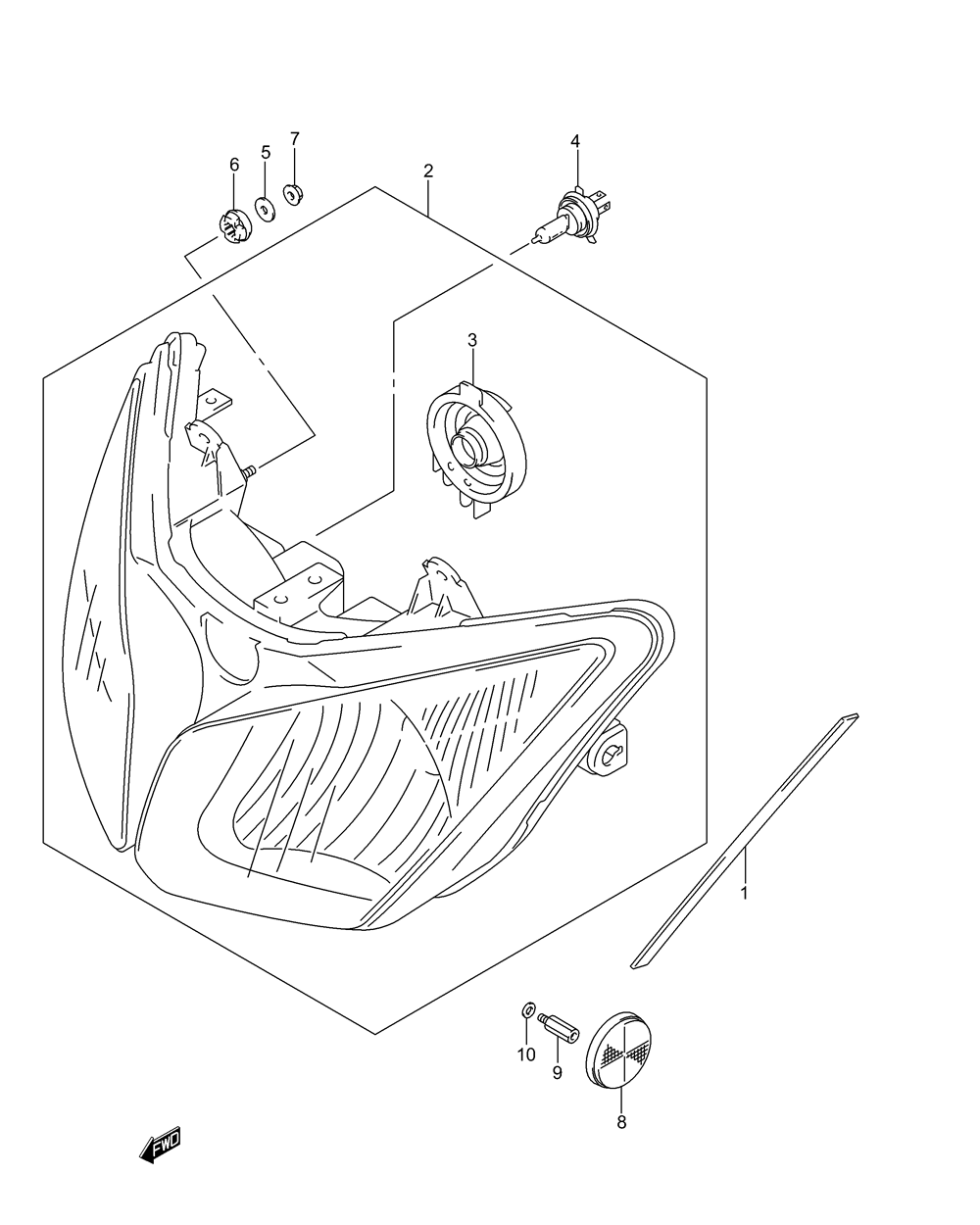

HEADLAMP для Suzuki DL650 K4 V-STROM - 2004 года выпуска
-
№АртикулНазвание
-
133652-06G10 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
235100-06G30-999 HEADLAMP ASSYHEADLAMP ASSY
-
335125-77A00 COVER, SOCKETCOVER, SOCKET
-
409471-12182 BULB (12V60/55W,H4)BULB (12V60/55W,H4)
-
509160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
609320-09010 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
708310-00063 NUTNUT
-
835950-14A00 REFLEX REFLECTOR ASSY, FRONTREFLEX REFLECTOR ASSY, FRONT
-
909119-05023 BOLTBOLT
-
1008322-01053 WASHERWASHER
