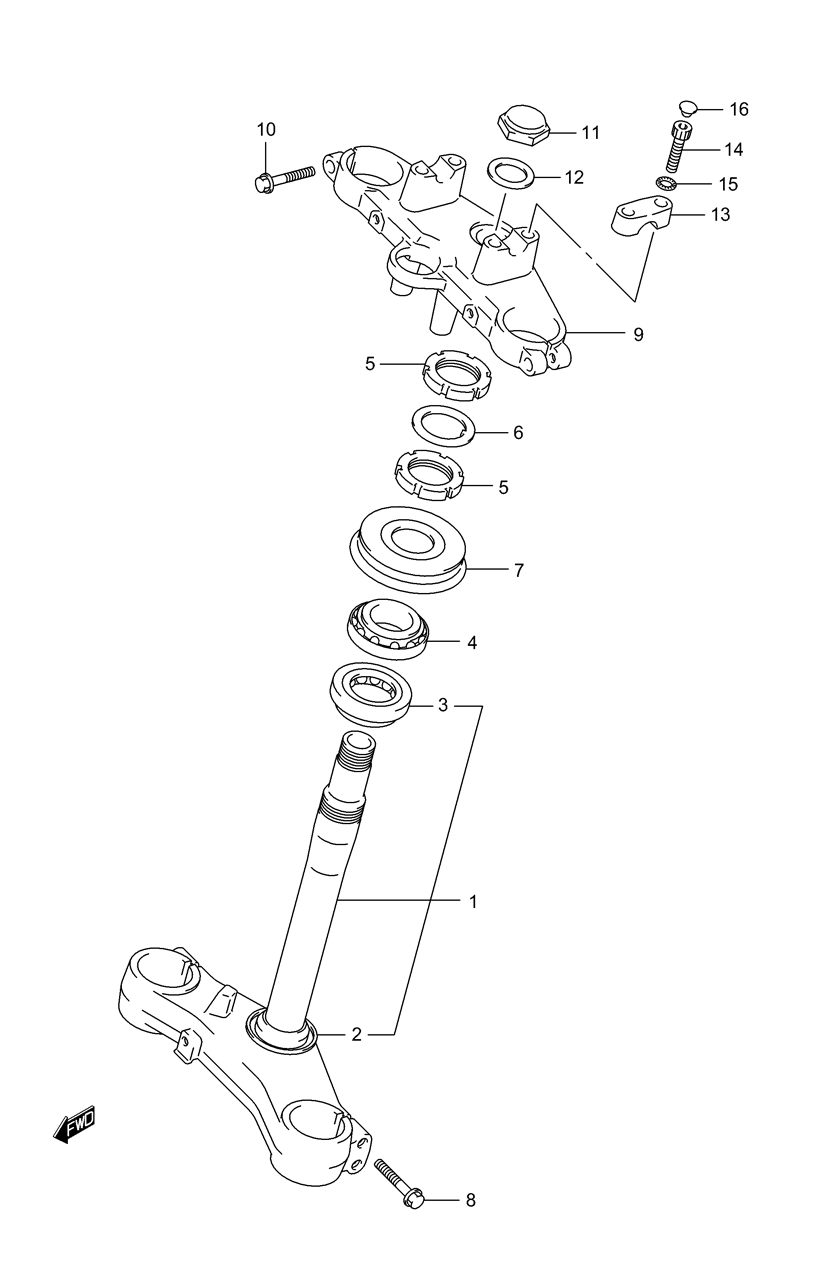

STEERING STEM для Suzuki DL650 K4 V-STROM - 2004 года выпуска
-
№АртикулНазвание
-
151410-27G00 STEM, STEERINGSTEM, STEERING
-
251644-12C00 SEAL, STEERING LOWERSEAL, STEERING LOWER
-
309267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
409267-30010 BEARING, UPPER (30X55X17)BEARING, UPPER (30X55X17)
-
551631-33E00 NUTNUT
-
651641-33E00 WASHERWASHER
-
751643-33E00 SEAL, STEERING UPPER, DUSTSEAL, STEERING UPPER, DUST
-
851166-35F00 BOLTBOLT
-
951311-27G00 HEAD, STEERING STEMHEAD, STEERING STEM
-
1051166-35F00 BOLTBOLT
-
1151353-27G00 NUTNUT
-
1251354-06G00 WASHERWASHER
-
1356211-32F00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1451321-06G00 BOLTBOLT
-
1509164-08015 WASHERWASHER
-
1609250-06011 CAPCAP
