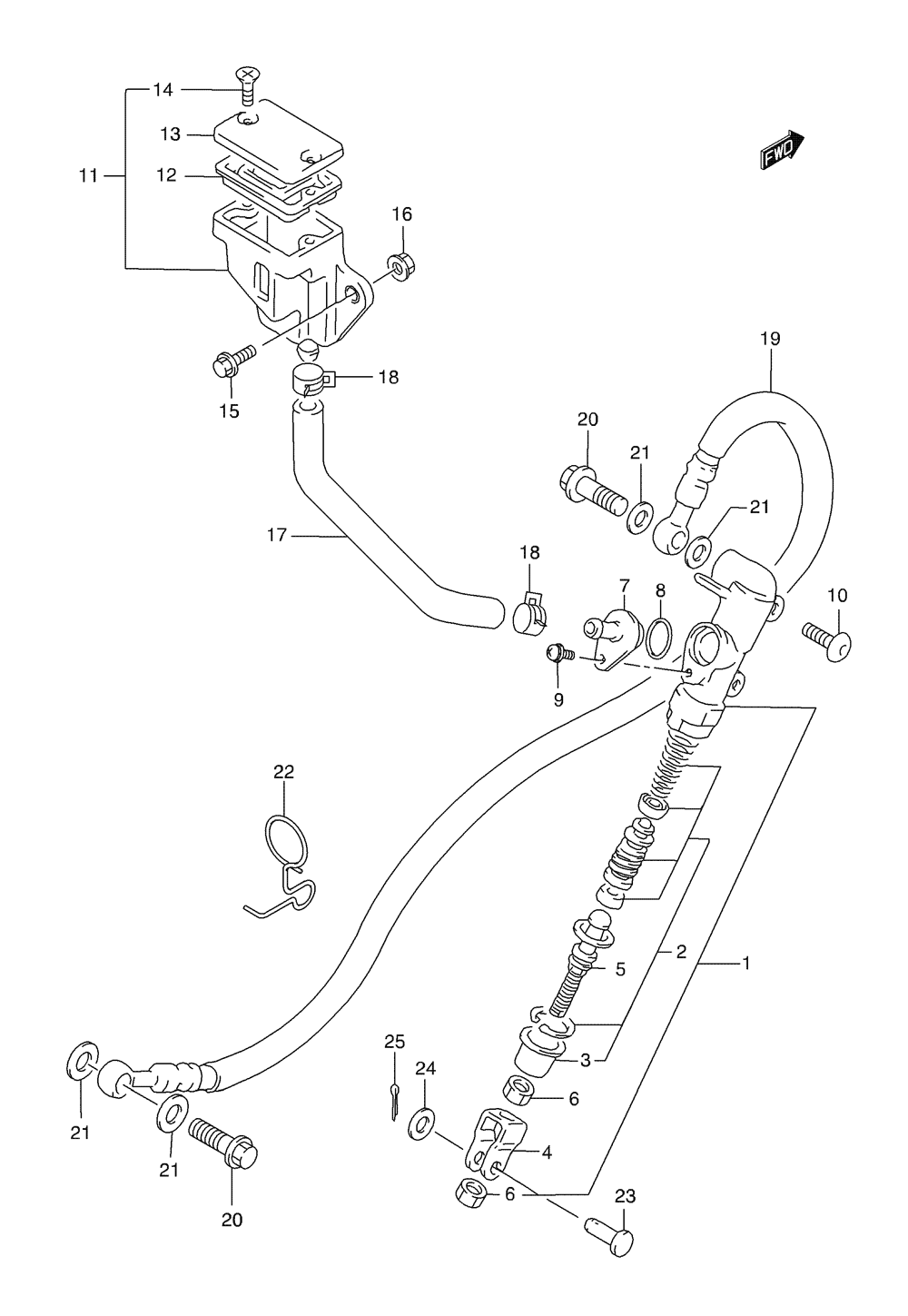

BRAKE - REAR MASTER CYLINDER для Suzuki GS-500F K4 - 2004 года выпуска
-
№АртикулНазвание
-
169600-01DA0 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-0BE00 PISTON/CAP SETPISTON/CAP SET
-
369691-0BE00 BOOTBOOT
-
469692-0BE00 YOKEYOKE
-
569670-0BE00 ROD, PUSHROD, PUSH
-
669693-0BE00 NUTNUT
-
769672-0BE00 CONNECTORCONNECTOR
-
869686-0BE00 O RINGO RING
-
902112-0BE00 SCREWSCREW
-
1009139-06057 SCREW (6X25)SCREW (6X25)
-
1169740-01DA0 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1259667-0BE00 DIAPHRAGMDIAPHRAGM
-
1359669-0BE00 CAPCAP
-
1469689-0BE00 SCREWSCREW
-
15D1557-06165 BOLTBOLT
-
16D8320-10065 NUTNUT
-
1769731-01D02 HOSE, RESERVOIRHOSE, RESERVOIR
-
1809401-13417 CLAMPCLAMP
-
1969480-01DA0 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2009360-10041 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
2109161C10009J000 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2269243-01D20 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
2309200-06037 PINPIN
-
24D8322-01065 WASHERWASHER
-
25D4111-20158 PIN, COTTERPIN, COTTER
