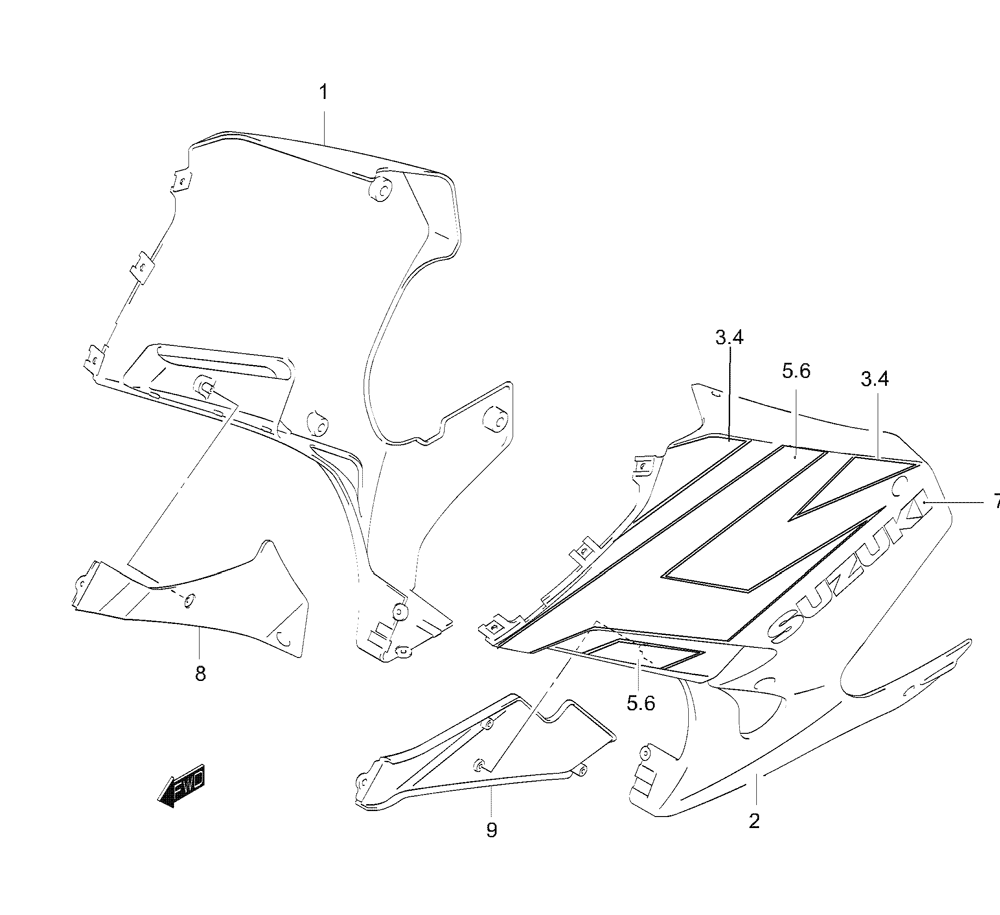

COWLING - UNDER BODY для Suzuki GS-500F K4 - 2004 года выпуска
-
№АртикулНазвание
-
194471C0BE10J0JW COWL, UNDER RIGHT HAND (WHITE) (FOR HU9)COWL, UNDER RIGHT HAND (WHITE) (FOR HU9)
-
194471C0BE10JYD8 COWL, UNDER RIGHT HAND (SILVER) (FOR FP2)COWL, UNDER RIGHT HAND (SILVER) (FOR FP2)
-
194471C0BE10JY7L COWL, UNDER RIGHT HAND (BLACK) (FOR BP9)COWL, UNDER RIGHT HAND (BLACK) (FOR BP9)
-
294481C0BE10J0JW COWL, UNDER LEFT HAND (WHITE) (FOR HU9)COWL, UNDER LEFT HAND (WHITE) (FOR HU9)
-
294481C0BE10JYD8 COWL, UNDER LEFT HAND (SILVER) (FOR FP2)COWL, UNDER LEFT HAND (SILVER) (FOR FP2)
-
294481C0BE10JY7L COWL, UNDER LEFT HAND (BLACK) (FOR BP9)COWL, UNDER LEFT HAND (BLACK) (FOR BP9)
-
368180-01DB0-HU9 TAPE SET, RIGHT HAND NO. 1 (FOR HU9)TAPE SET, RIGHT HAND NO. 1 (FOR HU9)
-
368180-01DB0-FP2 TAPE SET, RIGHT HAND NO. 1 (FOR FP2)TAPE SET, RIGHT HAND NO. 1 (FOR FP2)
-
368180-01DB0-BP9 TAPE SET, RIGHT HAND NO. 1 (FOR BP9)TAPE SET, RIGHT HAND NO. 1 (FOR BP9)
-
468190-01DB0-HU9 TAPE SET, LEFT HAND NO. 1 (FOR HU9)TAPE SET, LEFT HAND NO. 1 (FOR HU9)
-
468190-01DB0-FP2 TAPE SET, LEFT HAND NO. 1 (FOR FP2)TAPE SET, LEFT HAND NO. 1 (FOR FP2)
-
468190-01DB0-BP9 TAPE SET, LEFT HAND NO. 1 (FOR BP9)TAPE SET, LEFT HAND NO. 1 (FOR BP9)
-
568180-01DC0-BVU TAPE SET, RIGHT HAND NO. 2 (FOR HU9)TAPE SET, RIGHT HAND NO. 2 (FOR HU9)
-
568180-01DC0-BVV TAPE SET, RIGHT HAND NO. 2 (FOR FP2)TAPE SET, RIGHT HAND NO. 2 (FOR FP2)
-
568180-01DC0-FP2 TAPE SET, RIGHT HAND NO. 2 (FOR BP9)TAPE SET, RIGHT HAND NO. 2 (FOR BP9)
-
668190-01DC0-BVU TAPE SET, LEFT HAND NO. 2 (FOR HU9)TAPE SET, LEFT HAND NO. 2 (FOR HU9)
-
668190-01DC0-BVV TAPE SET, LEFT HAND NO. 2 (FOR FP2)TAPE SET, LEFT HAND NO. 2 (FOR FP2)
-
668190-01DC0-FP2 TAPE SET, LEFT HAND NO. 2 (FOR BP9)TAPE SET, LEFT HAND NO. 2 (FOR BP9)
-
768181-01DA0-019 EMBLEM, ''SUZUKI'' (BLACK) (FOR HU9)EMBLEM, ''SUZUKI'' (BLACK) (FOR HU9)
-
768181-01DA0-Y7L EMBLEM, ''SUZUKI'' (BLACK) (FOR FP2)EMBLEM, ''SUZUKI'' (BLACK) (FOR FP2)
-
768181-01DA0-YD8 EMBLEM, ''SUZUKI'' (SILVER) (FOR BP9)EMBLEM, ''SUZUKI'' (SILVER) (FOR BP9)
-
894461-01D00-NE2 COWL, INNER RIGHT HANDCOWL, INNER RIGHT HAND
-
994462-01D00-NE2 COWL, INNER LEFT HANDCOWL, INNER LEFT HAND
-
1094472-01D00 SHIELD, UNDER COWL HEAT, RIGHT HANDSHIELD, UNDER COWL HEAT, RIGHT HAND
-
1194482-01D00 SHIELD, UNDER COWL HEAT, LEFT HANDSHIELD, UNDER COWL HEAT, LEFT HAND
-
1294473-01D00 SHIELD, UNDER HEAT, RIGHT HANDSHIELD, UNDER HEAT, RIGHT HAND
-
1394483-01D00 SHIELD, UNDDER HEAT, LEFT HANDSHIELD, UNDDER HEAT, LEFT HAND
