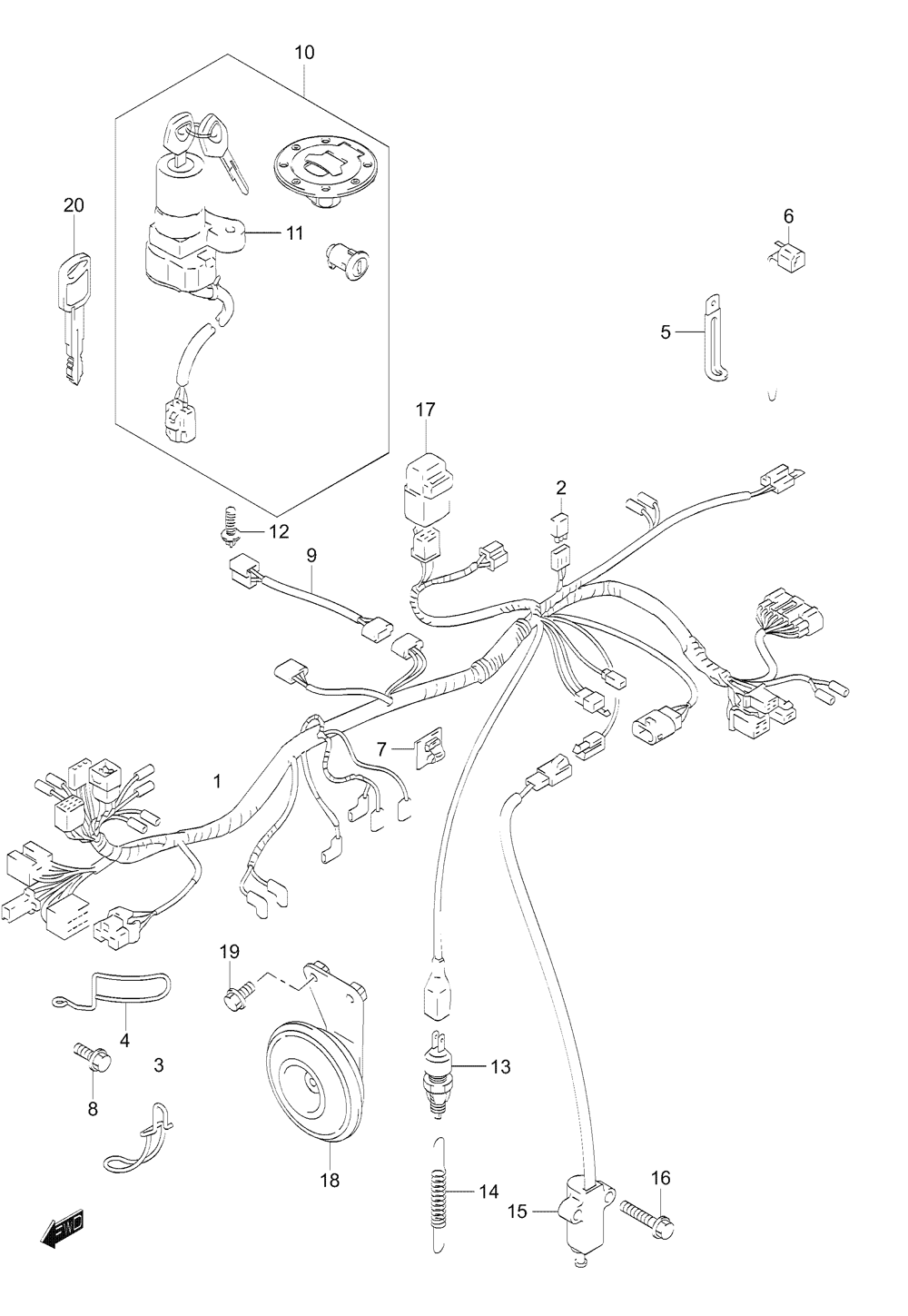

ELECTRICAL - WIRING HARNESS (NOT FOR U.S. MARKET) (A) для Suzuki GS-500F K4 - 2004 года выпуска
-
№АртикулНазвание
-
136610-0BEK0 HARNESS, WIRINGHARNESS, WIRING
-
236611-02E01 DIODEDIODE
-
336611-01D00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
436611-01D10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
509404-06429 CLAMP (L:65)CLAMP (L:65)
-
509404-06431 CLAMP (L:85)CLAMP (L:85)
-
509404-06434 CLAMP (L:95)CLAMP (L:95)
-
509404-08419 CLAMP (L:97)CLAMP (L:97)
-
6D9436-01425 CLAMP (L:125)CLAMP (L:125)
-
6D9448-01885 CLAMPCLAMP
-
609407-19401 CLAMP (L:190)CLAMP (L:190)
-
709403-06310 CLAMPCLAMP
-
8D1557-06165 BOLT, WIRING HARNESS GUIDEBOLT, WIRING HARNESS GUIDE
-
936852-01D40 WIRE, AIR SOLENOIDWIRE, AIR SOLENOID
-
1037000-01870 LOCK SETLOCK SET
-
1137100-01D40 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1209139-06026 BOLTBOLT
-
1337740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06042 SPRINGSPRING
-
1537840-26D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
16D1557-06305 BOLTBOLT
-
1738740-24B00 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
1838500C01D20J000 HORN ASSYHORN ASSY
-
19D1557-06125 BOLTBOLT
-
2037146-33E00 KEY, BLANKKEY, BLANK
