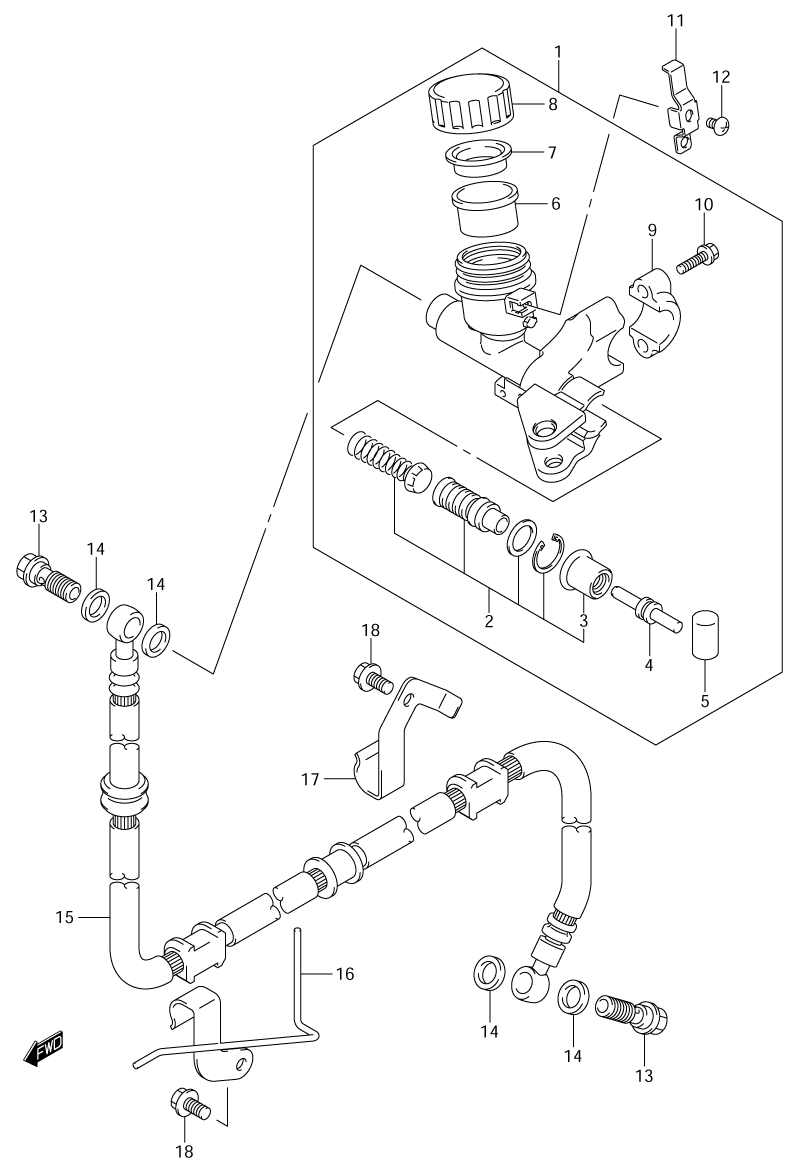

CLUTCH MASTER CYLINDER для Suzuki SV1000S K4 - 2004 года выпуска
-
№АртикулНазвание
-
159800-02FA1 CYLINDER ASSY., CLUTCH MASTERCYLINDER ASSY., CLUTCH MASTER
-
259800-08810 ...PISTON & CUP SET...PISTON & CUP SET
-
359666-44300 ......BOOT......BOOT
-
459871-38A00 ...PUSH ROD...PUSH ROD
-
559892-08A00 ...BUSH...BUSH
-
669667-00B20 ...DIAPHRAGM...DIAPHRAGM
-
769668-00B20 ...PLATE...PLATE
-
869669-03D10 ...CAP...CAP
-
959671-36500 ...HOLDER...HOLDER
-
1059675-02FA0 ...BOLT (6X22)...BOLT (6X22)
-
1159743-17C00 PLATE, TANK CAPPLATE, TANK CAP
-
1202142-04103 SCREWSCREW
-
1309360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
1409161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1559910-16G00 HOSE ASSY., CLUTCHHOSE ASSY., CLUTCH
-
1659920-16G00 CLAMP, CLUTCH HOSECLAMP, CLUTCH HOSE
-
1759921-16G00 CLAMP, CLUTCH HOSE NO.2CLAMP, CLUTCH HOSE NO.2
-
1801550-06123 BOLTBOLT
