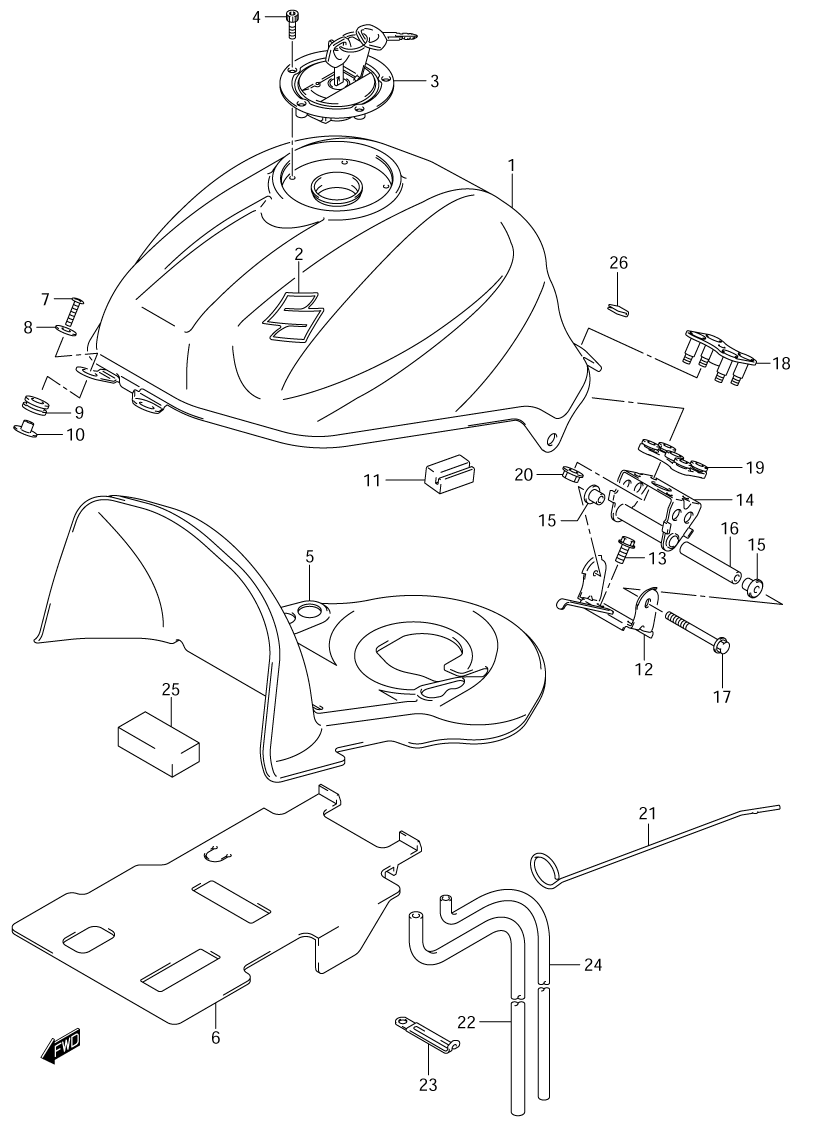

FUEL TANK для Suzuki SV1000S K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-144100-16G30-YD8 TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)
-
1-244100-16G30-Y7H TANK ASSY., FUEL (Y7H - BLUE) (EXCEPT CALIF.)TANK ASSY., FUEL (Y7H - BLUE) (EXCEPT CALIF.)
-
1-344100-16G30-YU7 TANK ASSY., FUEL (YU7 - RED) (EXCEPT CALIF.)TANK ASSY., FUEL (YU7 - RED) (EXCEPT CALIF.)
-
1-444100-16G50-YD8 TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)
-
1-544100-16G50-Y7H TANK ASSY., FUEL (Y7H - BLUE) (CALIF. ONLY)TANK ASSY., FUEL (Y7H - BLUE) (CALIF. ONLY)
-
1-644100-16G50-YU7 TANK ASSY., FUEL (YU7 - RED) (CALIF. ONLY)TANK ASSY., FUEL (YU7 - RED) (CALIF. ONLY)
-
2-168111-18G00-ASL ...EMBLEM (ASL - BLACK/SILVER) (FOR YD8 - SILVER)...EMBLEM (ASL - BLACK/SILVER) (FOR YD8 - SILVER)
-
2-268111-18G00-M2S ...EMBLEM (M2S - SILVER/BLUE) (FOR Y7H - BLUE)...EMBLEM (M2S - SILVER/BLUE) (FOR Y7H - BLUE)
-
2-368111-18G00-APJ ...EMBLEM (APJ - SILVER/RED) (FOR YU7 - RED)...EMBLEM (APJ - SILVER/RED) (FOR YU7 - RED)
-
3-144200-16850 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
3-244200-16860 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
409106-05017 BOLTBOLT
-
544191-16G00 SHIELD, HEATSHIELD, HEAT
-
644271-16G10 SHEET, HEAT RUBBERSHEET, HEAT RUBBER
-
709139-06029 SCREW, FRONTSCREW, FRONT
-
809160-06054 WASHERWASHER
-
944511-16G00 CUSHIONCUSHION
-
1044512-16G00 SPACERSPACER
-
1144541-16G00 CUSHION, SIDECUSHION, SIDE
-
12-144550-16G10 BRACKET, REAR (EXCEPT CALIF.)BRACKET, REAR (EXCEPT CALIF.)
-
12-244550-16G20 BRACKET, REAR (CALIF. ONLY)BRACKET, REAR (CALIF. ONLY)
-
1301550-08203 BOLTBOLT
-
1444530-16G10 BRACKET, CENTERBRACKET, CENTER
-
1544543-16G00 CUSHION, BRACKETCUSHION, BRACKET
-
1644561-35F00 SPACER, JOINTSPACER, JOINT
-
1709103-06060 BOLT, JOINTBOLT, JOINT
-
1844570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1944542-16G00 CUSHIONCUSHION
-
2008319-31063 NUTNUT
-
2144574-16G00 STAY, FUEL TANKSTAY, FUEL TANK
-
2244423-16G10 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2309404-06433 CLAMPCLAMP
-
2444424-16G00 HOSE, BREATHERHOSE, BREATHER
-
2544545-16G00 CUSHIONCUSHION
-
2668241-16G00 MOLDING, TANKMOLDING, TANK
