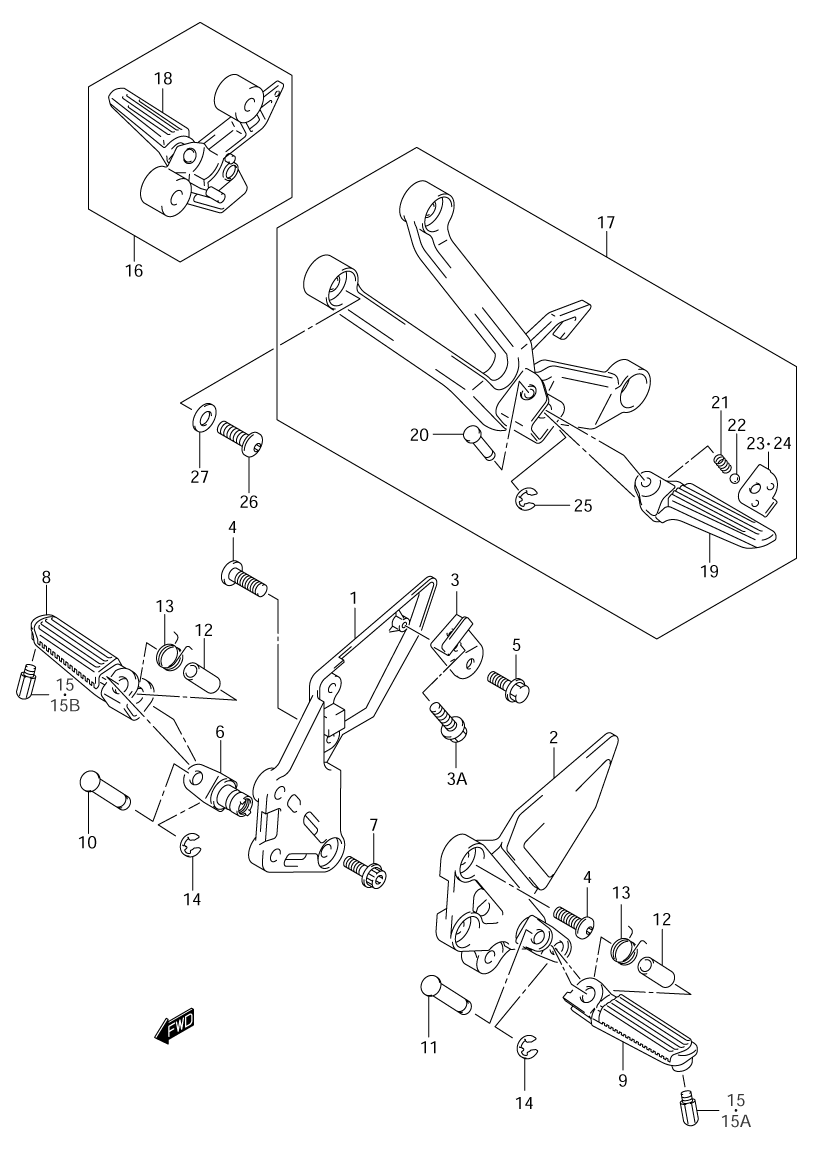

FOOTREST для Suzuki SV1000S K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-243511-16G21 BRACKET, FRONT FOOTREST (RIGHT)BRACKET, FRONT FOOTREST (RIGHT)
-
2-243521-16G21 BRACKET, FRONT FOOTREST (LEFT)BRACKET, FRONT FOOTREST (LEFT)
-
343571-16G00 PLATE, BRACKETPLATE, BRACKET
-
3A01550-08203 BOLT, PLATEBOLT, PLATE
-
4-109106-08118 BOLT, BRACKETBOLT, BRACKET
-
501550-06103 BOLT, (RIGHT)BOLT, (RIGHT)
-
643530-16G00 HOLDER, FOOTREST (RIGHT)HOLDER, FOOTREST (RIGHT)
-
709106-10064 BOLT, HOLDERBOLT, HOLDER
-
843510-02F11 BAR, FRONT FOOTREST (RIGHT)BAR, FRONT FOOTREST (RIGHT)
-
943520-02F11 BAR, FRONT FOOTREST (LEFT)BAR, FRONT FOOTREST (LEFT)
-
1009208-08014 PIN, (RIGHT)PIN, (RIGHT)
-
1109208-08016 PIN, (LEFT)PIN, (LEFT)
-
1209180-08149 SPACERSPACER
-
1309448-18022 SPRINGSPRING
-
1408332-11063 E-RINGE-RING
-
1543576-48B02 BOLT, BANK SENSORBOLT, BANK SENSOR
-
16-243600-16G30 FOOTREST ASSY., PILLION (RIGHT)FOOTREST ASSY., PILLION (RIGHT)
-
17-243700-16G30 FOOTREST ASSY., PILLION (LEFT)FOOTREST ASSY., PILLION (LEFT)
-
1843610-35F00 ...BAR, PILLION (RIGHT)...BAR, PILLION (RIGHT)
-
1943620-35F00 ...BAR, PILLION (LEFT)...BAR, PILLION (LEFT)
-
2087259-85510 ...PIN...PIN
-
2109440-05005 ...SPRING...SPRING
-
2206111-07004 ...BALL...BALL
-
2343816-33E21 ...PLATE, (RIGHT)...PLATE, (RIGHT)
-
2443826-33E22 ...PLATE, (LEFT)...PLATE, (LEFT)
-
2508332-11043 ...E-RING...E-RING
-
2609106-08150 BOLT, BRACKETBOLT, BRACKET
-
2709164-08020 WASHERWASHER
