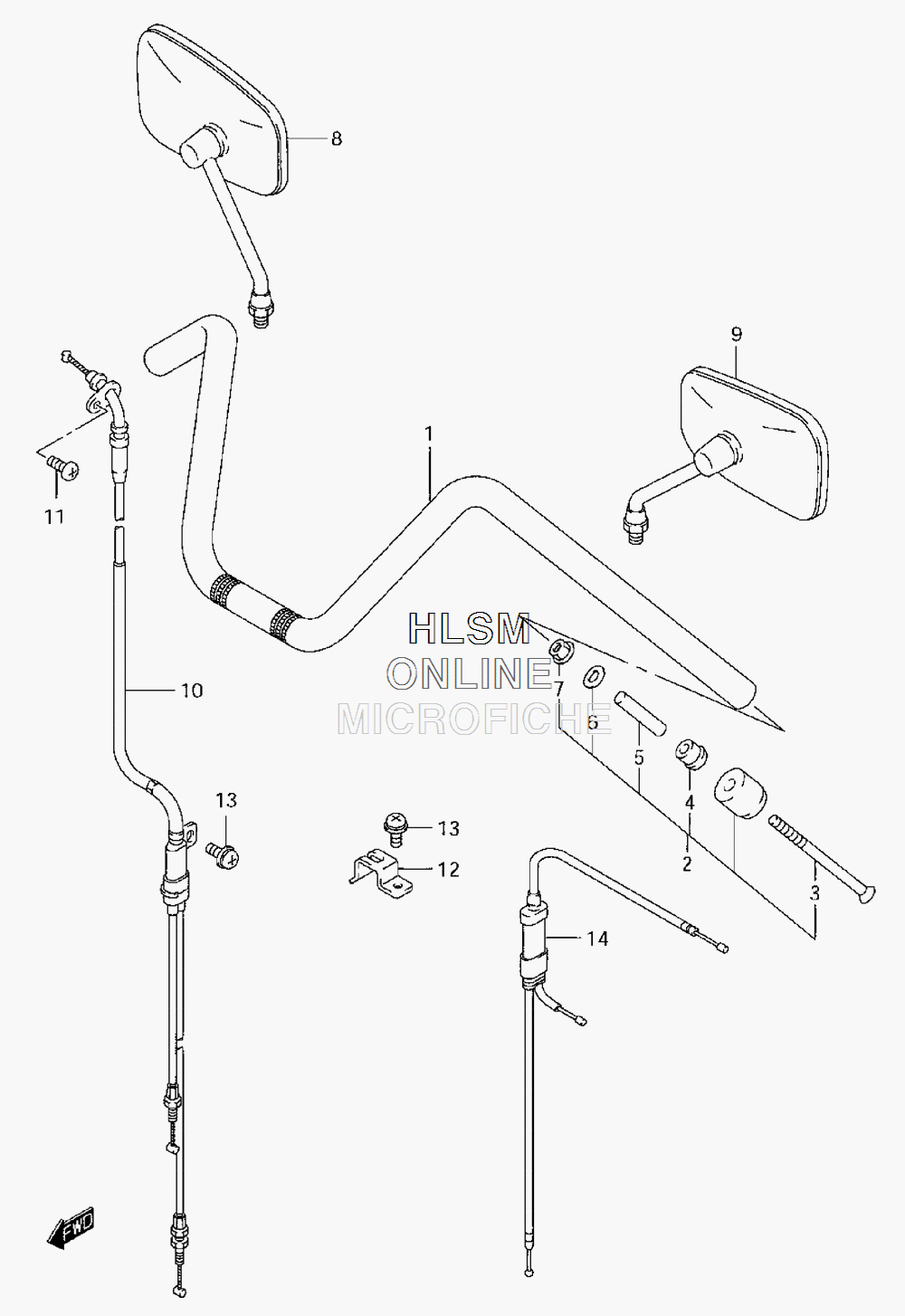

HANDLEBAR для Suzuki VS1400 GLP K4 - 2004 года выпуска
-
№АртикулНазвание
-
156111-38E00 HANDLEBARHANDLEBAR
-
256200-48831 BALANCER SET, HANDLEBAR (INC 3 - 7)BALANCER SET, HANDLEBAR (INC 3 - 7)
-
309127-06019 SCREW (6X110)SCREW (6X110)
-
456272-26D01 EXPANDER, HANDLE BALANCEREXPANDER, HANDLE BALANCER
-
556276-17D00 SPACER, EXPANDERSPACER, EXPANDER
-
609160-06121 WASHER (6.5X18X2)WASHER (6.5X18X2)
-
709159-06024 NUTNUT
-
856500-38B01 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
956600-38B01 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1058300-38B30 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1102142-05087 SCREWSCREW
-
1258621-38B00 CLAMPCLAMP
-
1302112-75123 SCREWSCREW
-
1458400-38B01 CABLE, STARTERCABLE, STARTER
