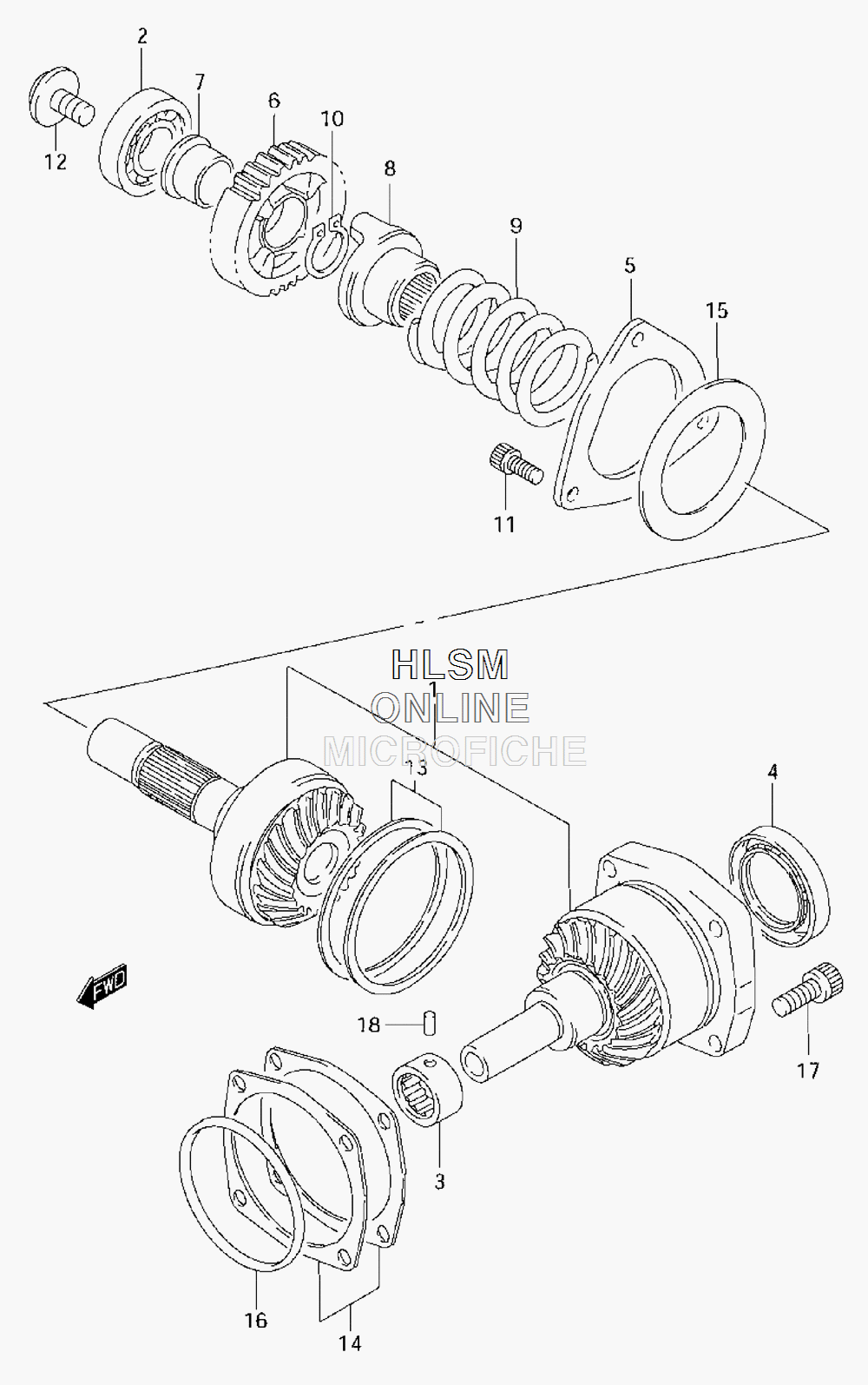

SECONDARY DRIVE GEAR для Suzuki VS1400 GLP K4 - 2004 года выпуска
-
№АртикулНазвание
-
124900-38830 GEAR & HOUSING SET, SECONDARY NT:19/19; (INC 2 - 4)GEAR & HOUSING SET, SECONDARY NT:19/19; (INC 2 - 4)
-
209262-25080 BEARING (25X62X17)BEARING (25X62X17)
-
309263-20038 BEARING (20X34X16)BEARING (20X34X16)
-
409283-44010 OIL SEAL (44X68X8)OIL SEAL (44X68X8)
-
524931-38B00 STOPPER, BEARINGSTOPPER, BEARING
-
624631-38B00 GEAR, OVER DRIVING DRIVEN NT:29GEAR, OVER DRIVING DRIVEN NT:29
-
724632-38B01 BUSHBUSH
-
824922-38B01 DOG, OUTPUT CAMDOG, OUTPUT CAM
-
909440-57001 SPRINGSPRING
-
1008331-3126A CIRCLIPCIRCLIP
-
1109106-08106 BOLT, BEARING STOPPER 8X20BOLT, BEARING STOPPER 8X20
-
1209103-14005 BOLT 14X21BOLT 14X21
-
1324935-38820 SHIM SET, SEC DRIVE T:1.1/1.15/1.2/1.25/ 1.3/1.35/1.4SHIM SET, SEC DRIVE T:1.1/1.15/1.2/1.25/ 1.3/1.35/1.4
-
1424945-38810 SHIM SET, SEC DRIVE T:0.3/0.35/0.4/0.5/0.6SHIM SET, SEC DRIVE T:0.3/0.35/0.4/0.5/0.6
-
1509160-57001 WASHER (57X90X3)WASHER (57X90X3)
-
1609280-78003 O RING (D:3.7,ID:76.5)O RING (D:3.7,ID:76.5)
-
1709106-08097 BOLT (8X25)BOLT (8X25)
-
1804221-07129 PIN 7 X 12PIN 7 X 12
