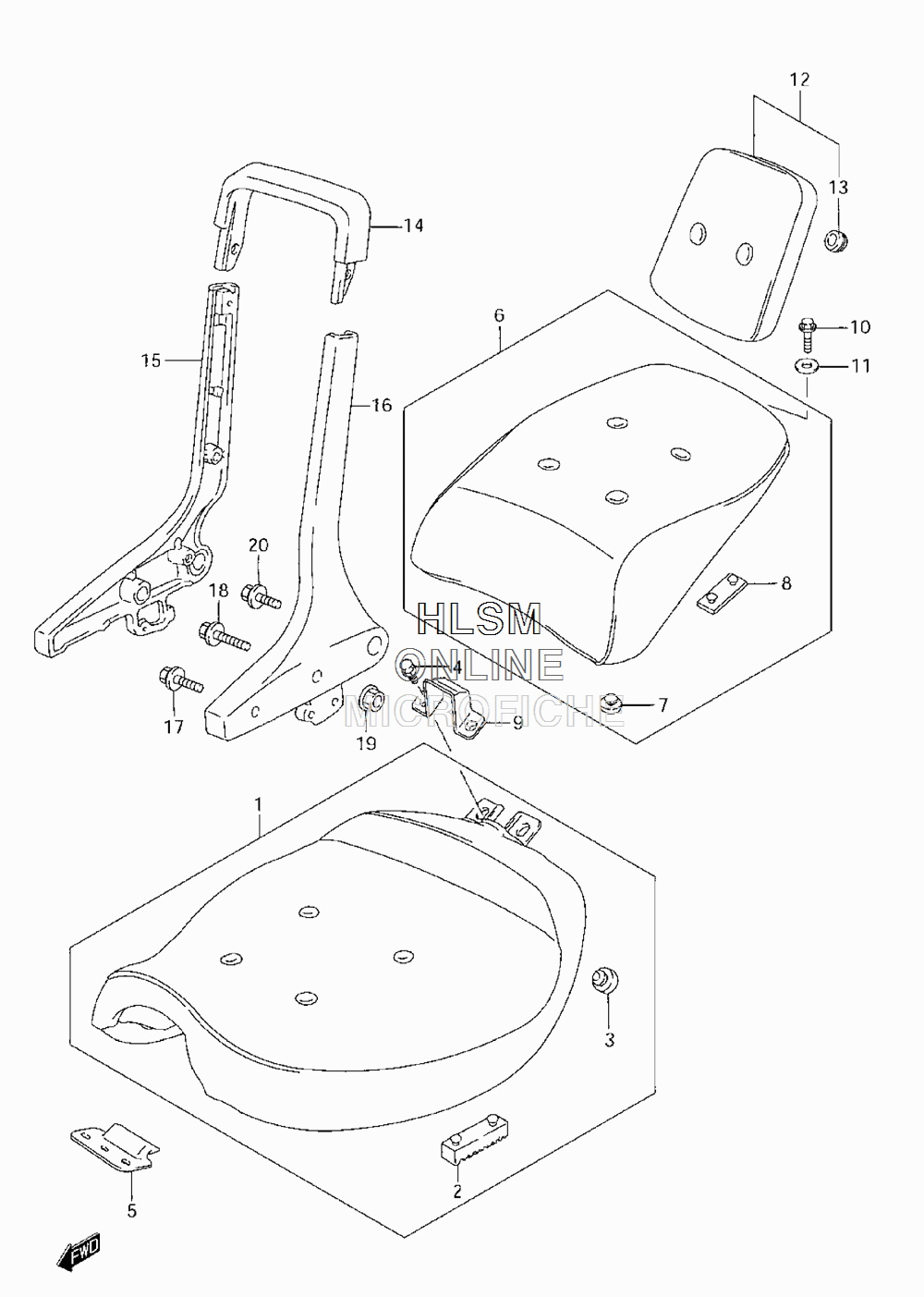

SEAT для Suzuki VS1400 GLP K4 - 2004 года выпуска
-
№АртикулНазвание
-
145100-38B60-E7T SEAT ASSY (INC 2 - 3)SEAT ASSY (INC 2 - 3)
-
245148-38B01 CUSHIONCUSHION
-
309321-10012 CUSHIONCUSHION
-
402162-06203 BOLTBOLT
-
545210-38B00 BRACKET, SEAT FRONTBRACKET, SEAT FRONT
-
645300-38B60-E7T SEAT ASSY, PILLION (INC 7 - 8)SEAT ASSY, PILLION (INC 7 - 8)
-
709321-10022 CUSHION, FRONTCUSHION, FRONT
-
845149-38B00 CUSHION, REARCUSHION, REAR
-
945119-38B00 BRACKET, SEAT FRONTBRACKET, SEAT FRONT
-
1009111-06057 BOLT, PILLION REAR (6X17.5)BOLT, PILLION REAR (6X17.5)
-
1109160-09016 WASHERWASHER
-
1245350-38A60-E7T PAD ASSY, SEAT (INC 13)PAD ASSY, SEAT (INC 13)
-
1309320-09026 CUSHIONCUSHION
-
1446211-38B01 HANDLE, PILLION RIDER UPPERHANDLE, PILLION RIDER UPPER
-
1546212-38B01 HANDLE, PILLION RIDER RIGHT HANDHANDLE, PILLION RIDER RIGHT HAND
-
1646213-38B01 HANDLE, PILLION RIDER LEFT HANDHANDLE, PILLION RIDER LEFT HAND
-
1701580-06403 BOLT, FRONTBOLT, FRONT
-
1801580-08453 BOLT, CENTERBOLT, CENTER
-
1908316-10083 NUTNUT
-
2001580-06203 BOLT, REARBOLT, REAR
