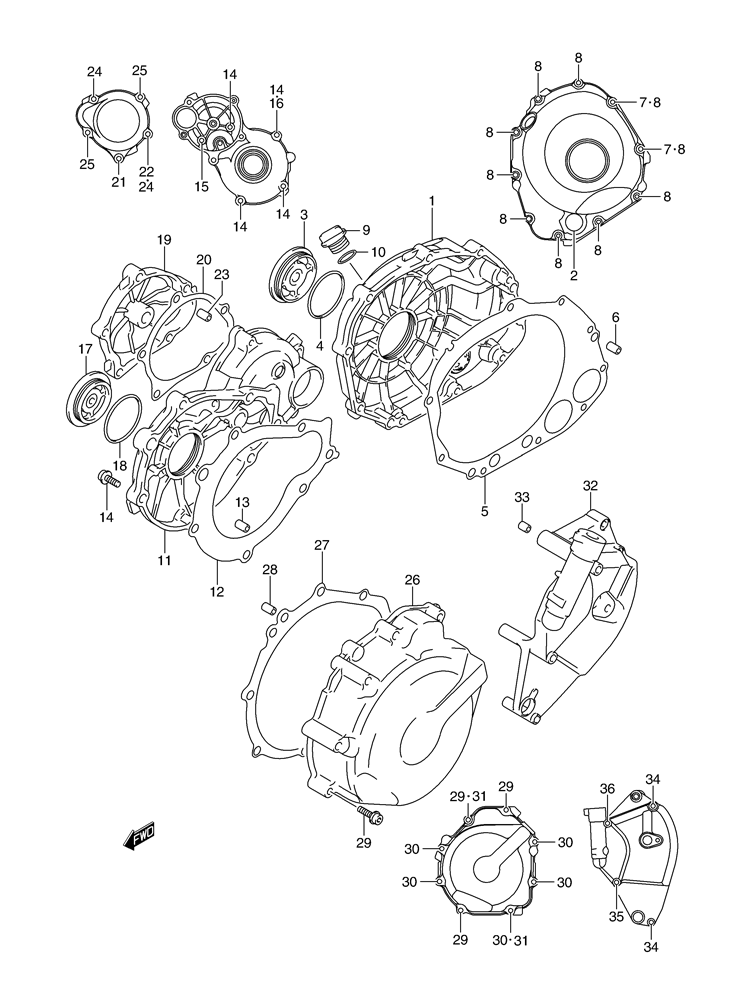

CRANKCASE COVER для Suzuki GSX-R1000 - 2005 года выпуска
-
№АртикулНазвание
-
111340-41G00 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
311342-41G00 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
409280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
511482-40F00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
604211-09189 PINPIN
-
709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
801547-06303 BOLTBOLT
-
911971-25D00 PLUG, ENGINE OIL FILTERPLUG, ENGINE OIL FILTER
-
1009280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1111381-35F01 COVER, STARTER CLUTCHCOVER, STARTER CLUTCH
-
1211491-33E02 GASKETGASKET
-
1304211-09149 PINPIN
-
1401547-06253 BOLTBOLT
-
1501547-06353 BOLTBOLT
-
1609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1709259-36021 PLUG, SHAFT HOLEPLUG, SHAFT HOLE
-
1809280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
1911382-33E00 CAP, STARTER IDLE GEARCAP, STARTER IDLE GEAR
-
2011492-33E00 GASKETGASKET
-
2101547-06553 BOLTBOLT
-
2209168-06023 GASKET, BOLT (5.8X13X1.2)GASKET, BOLT (5.8X13X1.2)
-
2304211-09149 PINPIN
-
2401547-06253 BOLTBOLT
-
2501547-06353 BOLTBOLT
-
2611351-41G00 COVER, MAGNETOCOVER, MAGNETO
-
2711483-18G00 GASKETGASKET
-
2804211-09149 PINPIN
-
2901547-06303 BOLTBOLT
-
3001547-06403 BOLTBOLT
-
3109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3211361-41G00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
3304211-09129 PINPIN
-
3401547-06553 BOLTBOLT
-
3501547-06803 BOLTBOLT
-
3601547-06953 BOLTBOLT
