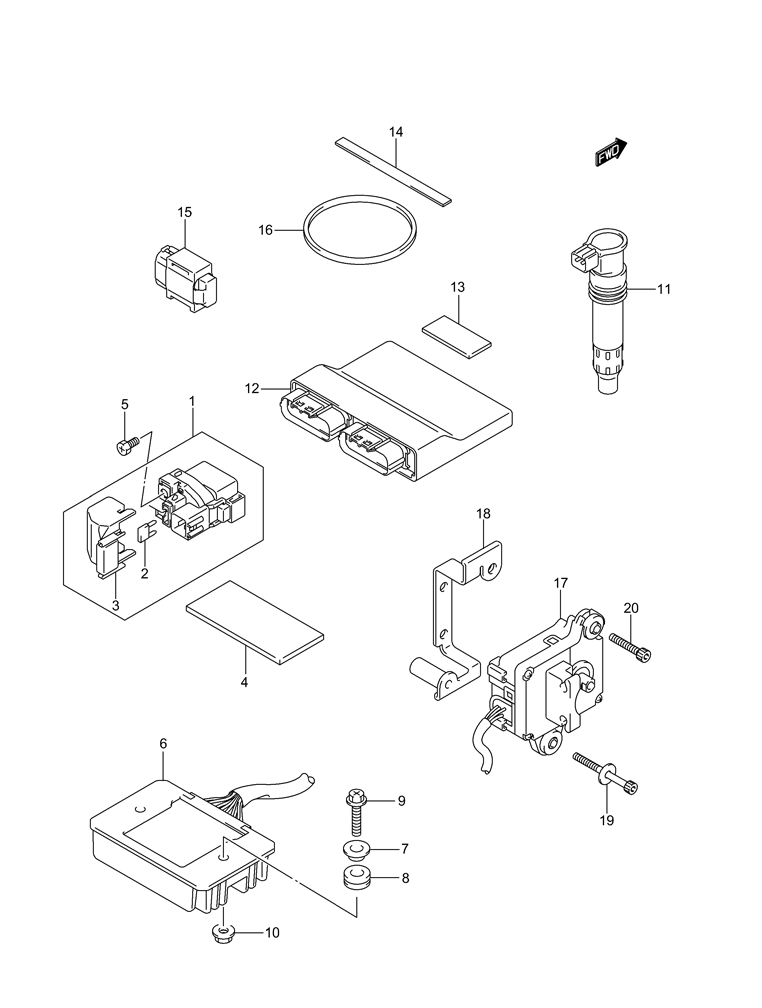

ELECTRICAL для Suzuki GSX-R1000 - 2005 года выпуска
-
№АртикулНазвание
-
131800-41G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 COVERCOVER
-
309481-30501 FUSE (30A)FUSE (30A)
-
444545-41F00 PROTECTOR, STARTING MOTORPROTECTOR, STARTING MOTOR
-
509128-06013 BOLT, STARTING MOTOR (6X8)BOLT, STARTING MOTOR (6X8)
-
632800-41G00 RECTIFIER ASSYRECTIFIER ASSY
-
709180-06325 SPACER, RECT FTG BRKTSPACER, RECT FTG BRKT
-
809320-08066 CUSHION, RECT FTG BRKTCUSHION, RECT FTG BRKT
-
902162-06253 BOLT, RECTIFIERBOLT, RECTIFIER
-
1008313-20063 NUT, RECT FTG BRKTNUT, RECT FTG BRKT
-
1133410-35F10 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1232920-41G10 CONTROL UNIT, FICONTROL UNIT, FI
-
1333651-37000 BATTERY PROTECTOR (170X95X3.0)BATTERY PROTECTOR (170X95X3.0)
-
1433652-42F00 CUSHION, FI CONTROL UNITCUSHION, FI CONTROL UNIT
-
1533960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1609280-61002 0 RING0 RING
-
1733970-41G00 ACTUATOR ASSY, EXHAUST CONTROLACTUATOR ASSY, EXHAUST CONTROL
-
1833971-41G00 HOLDER, ACTUATORHOLDER, ACTUATOR
-
1909116-06198 BOLT, ACTUATORBOLT, ACTUATOR
-
2007130-06303 BOLT, ACTUATORBOLT, ACTUATOR
