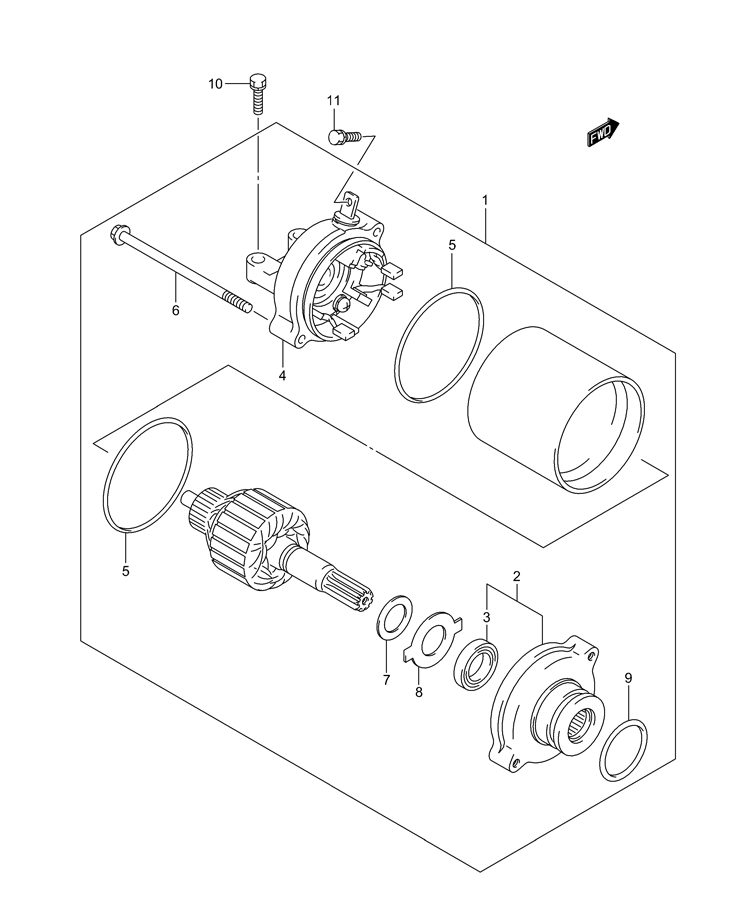

STARTING MOTOR для Suzuki GSX-R1000 - 2005 года выпуска
-
№АртикулНазвание
-
131100-40F00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231150-40F00 HOUSING ASSYHOUSING ASSY
-
331153-49210 OIL SEALOIL SEAL
-
431175-40F01 FRAME ASSYFRAME ASSY
-
531264-32C10 O RINGO RING
-
631281-40F00 BOLTBOLT
-
731361-32C10 PLATEPLATE
-
831361-38300 SHIMSHIM
-
909280-24003 O RING (DD:3,ID:24.5)O RING (DD:3,ID:24.5)
-
1009128-06006 BOLT, STARTING MOTOR (6X20)BOLT, STARTING MOTOR (6X20)
-
1109137-05004 SCREW, STARTING MOTOR (5X8)SCREW, STARTING MOTOR (5X8)
