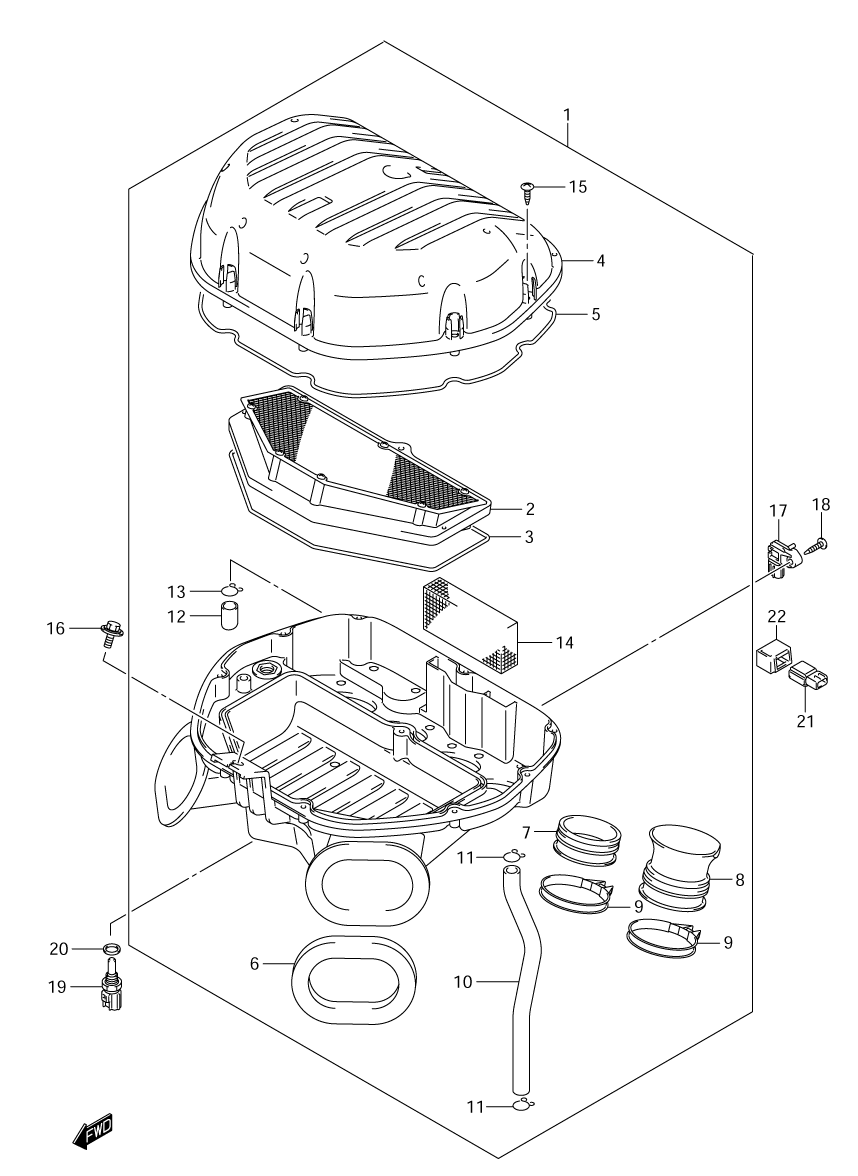

AIR CLEANER для Suzuki GSX-R600X K5 20 ANNIVERSARY - 2005 года выпуска
-
№АртикулНазвание
-
113700-29G00 CLEANER, AIR ASSY.CLEANER, AIR ASSY.
-
213780-29G00 ...FILTER ASSY....FILTER ASSY.
-
313756-29G00 ...GASKET, CASE...GASKET, CASE
-
413741-29G00 ...CAP...CAP
-
513746-29G00 ...GASKET, CAP...GASKET, CAP
-
613736-29G00 ...CUSHION, DUCT...CUSHION, DUCT
-
713881-29G00 ...TUBE, OUTLET, (MIDDLE/LEFT) (MIDDLE/RIGHT)...TUBE, OUTLET, (MIDDLE/LEFT) (MIDDLE/RIGHT)
-
813882-29G00 ...TUBE, OUTLET, (LEFT)/(RIGHT)...TUBE, OUTLET, (LEFT)/(RIGHT)
-
909402-56208 ...CLAMP...CLAMP
-
1013853-29G00 ...TUBE, BREATHER...TUBE, BREATHER
-
1109401-14301 ...CLIP...CLIP
-
1213878-10G00 ...PLUG...PLUG
-
1309401-14301 ...CLIP...CLIP
-
1413788-29G00 ...FILTER, BREATHER...FILTER, BREATHER
-
1503142-05203 ...SCREW...SCREW
-
1609116-06130 BOLTBOLT
-
1715620-29G00 SENSOR, BOOSTSENSOR, BOOST
-
1803541-05253 BOLTBOLT
-
1913650-61B00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2009168-12017 GASKETGASKET
-
2115620-29G10 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
2215625-29G00 HOLDER, SENSORHOLDER, SENSOR
