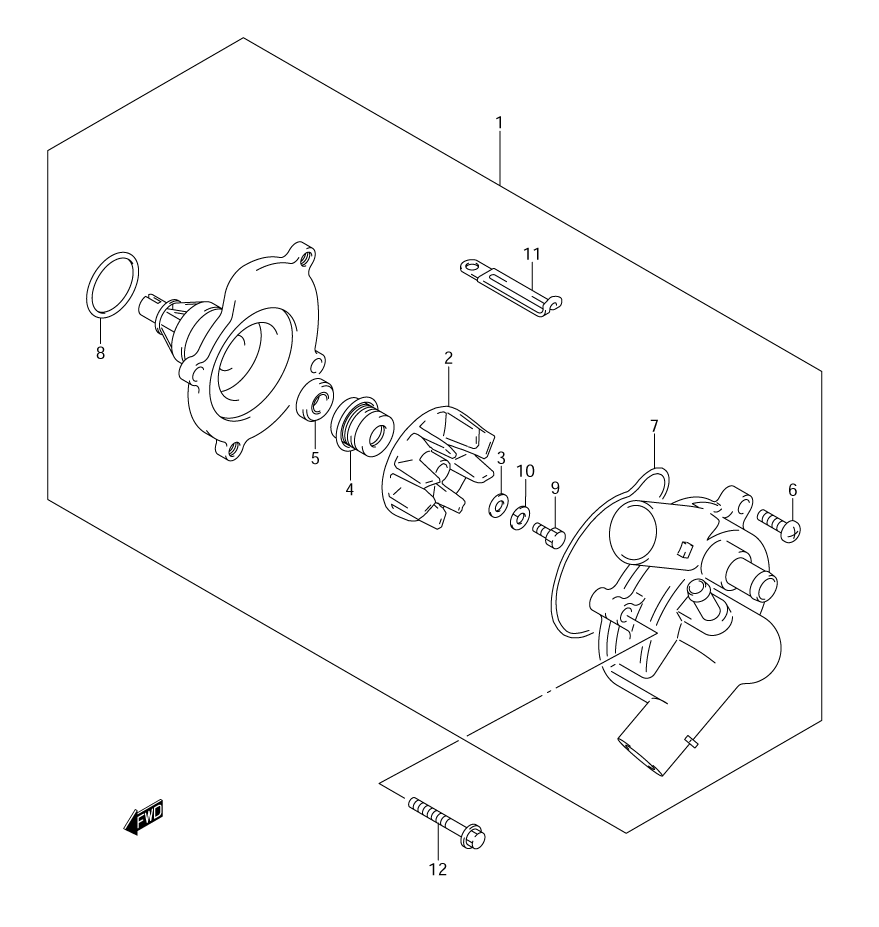

WATER PUMP для Suzuki GSX-R600X K5 20 ANNIVERSARY - 2005 года выпуска
-
№АртикулНазвание
-
117400-35F10 PUMP, WATER ASSY.PUMP, WATER ASSY.
-
217491-17E01 ...IMPELLER...IMPELLER
-
309168-06025 ...GASKET...GASKET
-
417470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
509283-10004 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
602112-06163 ...SCREW...SCREW
-
717418-33400 ...O-RING...O-RING
-
817435-33400 ...O-RING...O-RING
-
909100-06099 ...BOLT (6X13)...BOLT (6X13)
-
1009164-06006 ...LOCK WASHER...LOCK WASHER
-
1109404-06429 ...CLAMP, L:45...CLAMP, L:45
-
1201547-06353 BOLTBOLT
