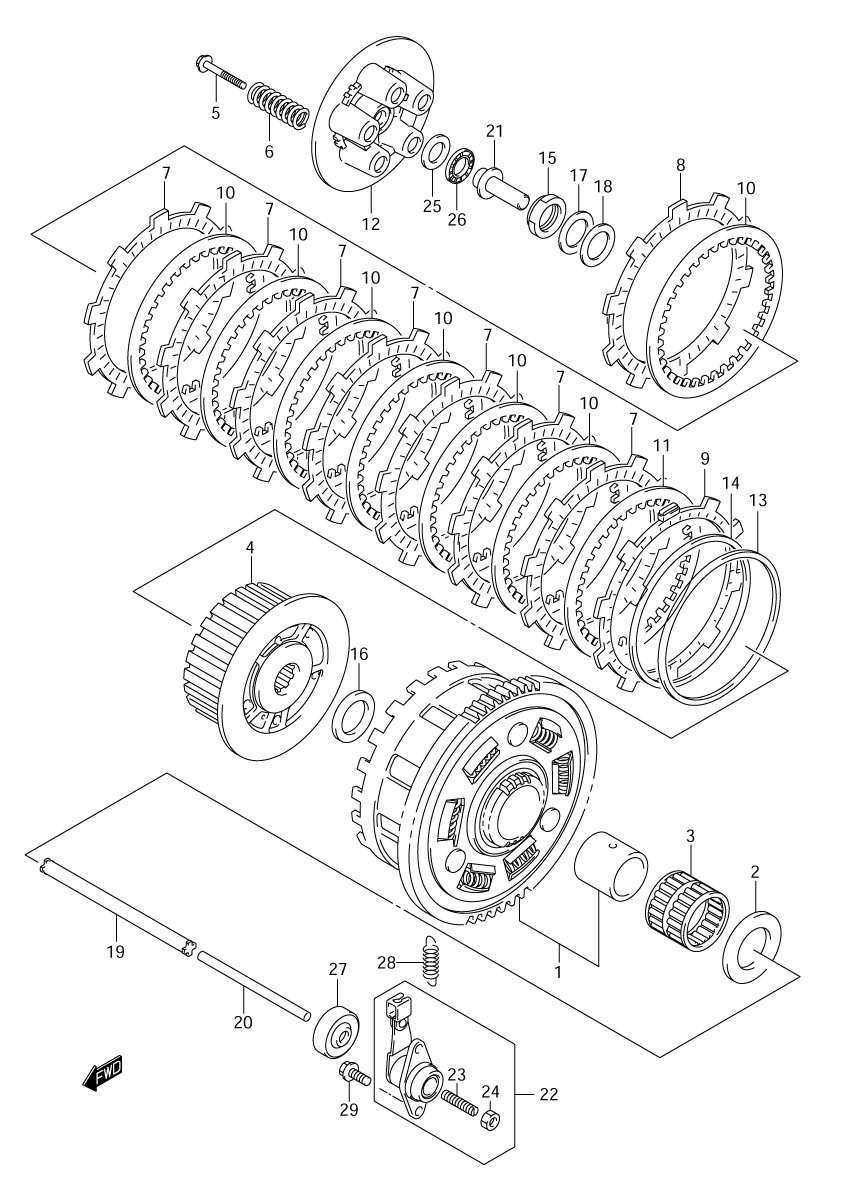

CLUTCH для Suzuki GSX-R600X K5 20 ANNIVERSARY - 2005 года выпуска
-
№АртикулНазвание
-
121200-39820 GEAR, PRIMARY DRIVEN ASSY.GEAR, PRIMARY DRIVEN ASSY.
-
209160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
309263-35036 BEARING (35X40X29.8)BEARING (35X40X29.8)
-
421410-35F00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521412-35F00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
621413-35F00 SPRING, CLUTCHSPRING, CLUTCH
-
721441-31E70 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
821441-31E60 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
921442-31E21 PLATE, CLUTCH DRIVE NO.3PLATE, CLUTCH DRIVE NO.3
-
1021451-31E30 PLATE, CLUTCH DRIVEN,NO.1PLATE, CLUTCH DRIVEN,NO.1
-
1121451-31E20 PLATE, CLUTCH DRIVEN NO.2PLATE, CLUTCH DRIVEN NO.2
-
1221462-35F00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1321471-31E20 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1421472-31E01 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1509159-24010 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1609160-25056 WASHER, CLUTCH SLEEVE THRWASHER, CLUTCH SLEEVE THR
-
1709164-24006 WASHER, CLUTCH WAVEWASHER, CLUTCH WAVE
-
1809181-25223 WASHER, SLEEVE HUB NUTWASHER, SLEEVE HUB NUT
-
1923110-27A00 ROD, CLUTCH PUSH (RIGHT)ROD, CLUTCH PUSH (RIGHT)
-
2023111-35F00 ROD, CLUTCH PUSH (LEFT)ROD, CLUTCH PUSH (LEFT)
-
2123121-31E00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2223200-35F01 SCREW ASSY., CLUTCH RELEASESCREW ASSY., CLUTCH RELEASE
-
2309134-06010 ...SCREW (6X25)...SCREW (6X25)
-
2408310-00067 ...NUT...NUT
-
2509160-15045 WASHER, CLUTCH PUSHWASHER, CLUTCH PUSH
-
2609263-15003 BEARING, CLUTCH PUSHBEARING, CLUTCH PUSH
-
2709285-06011 SEAL, CLUTCH PUSH RODSEAL, CLUTCH PUSH ROD
-
2809443-09051 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
2901550-06163 BOLT, CLUTCH RELEASEBOLT, CLUTCH RELEASE
