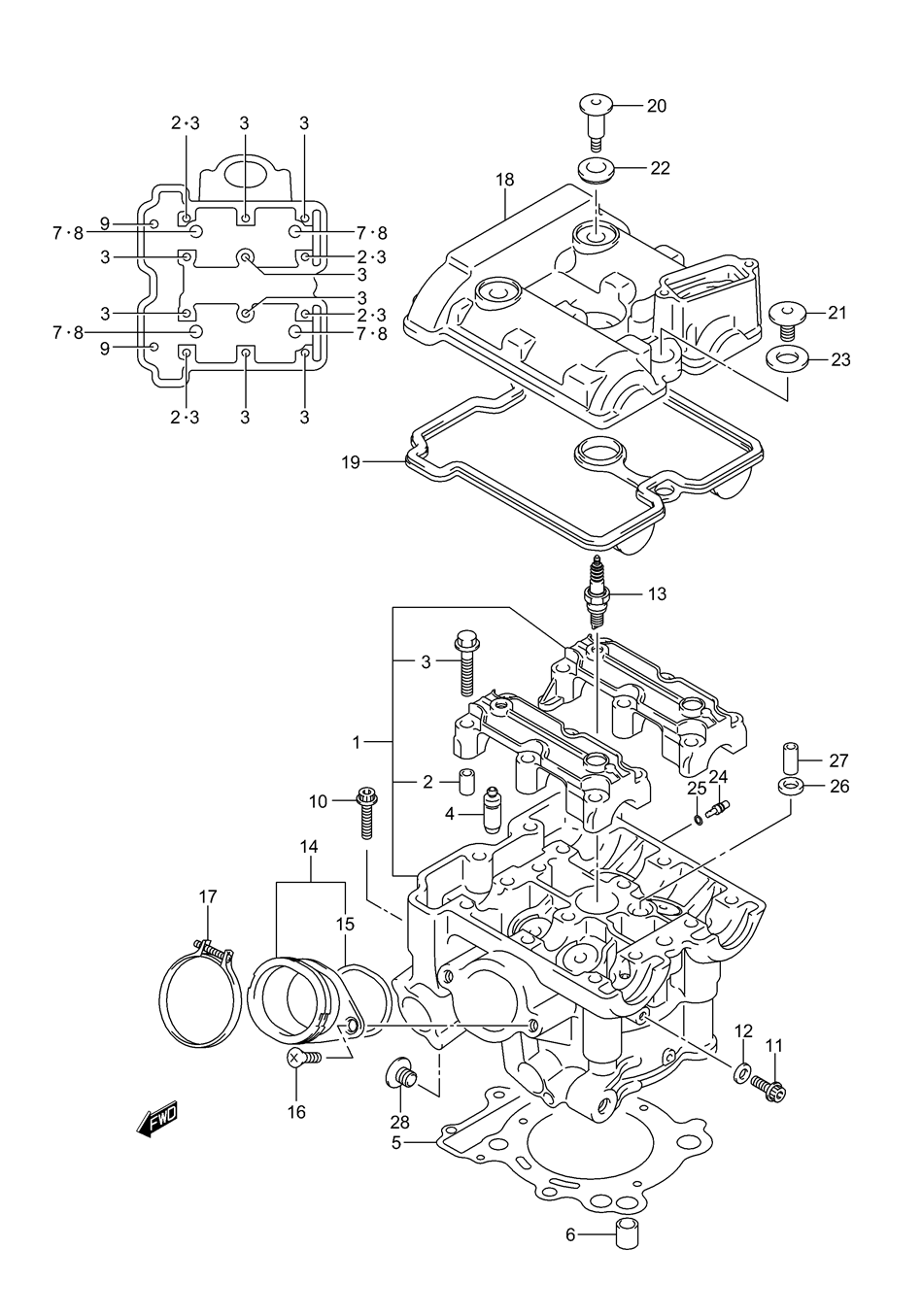

CYLINDER HEAD (REAR) для Suzuki DL650 K6 V-STORM - 2006 года выпуска
-
№АртикулНазвание
-
111103-17G10 HEAD ASSY, CYLINDER REARHEAD ASSY, CYLINDER REAR
-
209206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
309103-06026 BOLT (6X39)BOLT (6X39)
-
411115-18D72 GUIDE, VALVEGUIDE, VALVE
-
511141-20F00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
604211-13189 PINPIN
-
709160-10082 WASHER (10.5X19X2.0)WASHER (10.5X19X2.0)
-
809103-10272 BOLT (10X160)BOLT (10X160)
-
909103-06103 BOLT (6X70)BOLT (6X70)
-
1007120-06403 BOLTBOLT
-
1107120-06123 BOLTBOLT
-
1209168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1309482-00456 SPARK PLUG (NGK,CR8E)SPARK PLUG (NGK,CR8E)
-
1309482-00457 SPARK PLUG (DENSO,U24ESR-N)SPARK PLUG (DENSO,U24ESR-N)
-
1309482-00458 SPARK PLUG (NGK,CR9E)SPARK PLUG (NGK,CR9E)
-
1309482-00459 SPARK PLUG (DENSO,U27ESR-N)SPARK PLUG (DENSO,U27ESR-N)
-
1309482-00516 SPARK PLUG (NGK,CR7E)SPARK PLUG (NGK,CR7E)
-
1309482-00515 SPARK PLUG (DENSO,U22ESR-N)SPARK PLUG (DENSO,U22ESR-N)
-
1413102-17G00 PIPE ASSY, INTAKE REARPIPE ASSY, INTAKE REAR
-
1509280-46006 O RINGO RING
-
1602122-06163 SCREWSCREW
-
1709402-62208 CLAMPCLAMP
-
1811172-17G00 COVER, CYLINDER HEAD REARCOVER, CYLINDER HEAD REAR
-
1911173-19F01 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
2009106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
2109106-07010 BOLT (7X31)BOLT (7X31)
-
2209161-11008 WASHERWASHER
-
2311192-13E00 CUSHION, HEAD COVER BOLTCUSHION, HEAD COVER BOLT
-
2409493-80005 JET, OILJET, OIL
-
2509280-04004 O RINGO RING
-
2611182-35F00 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
-
2709206-08007 PINPIN
-
2811151-27G00 CAPCAP
