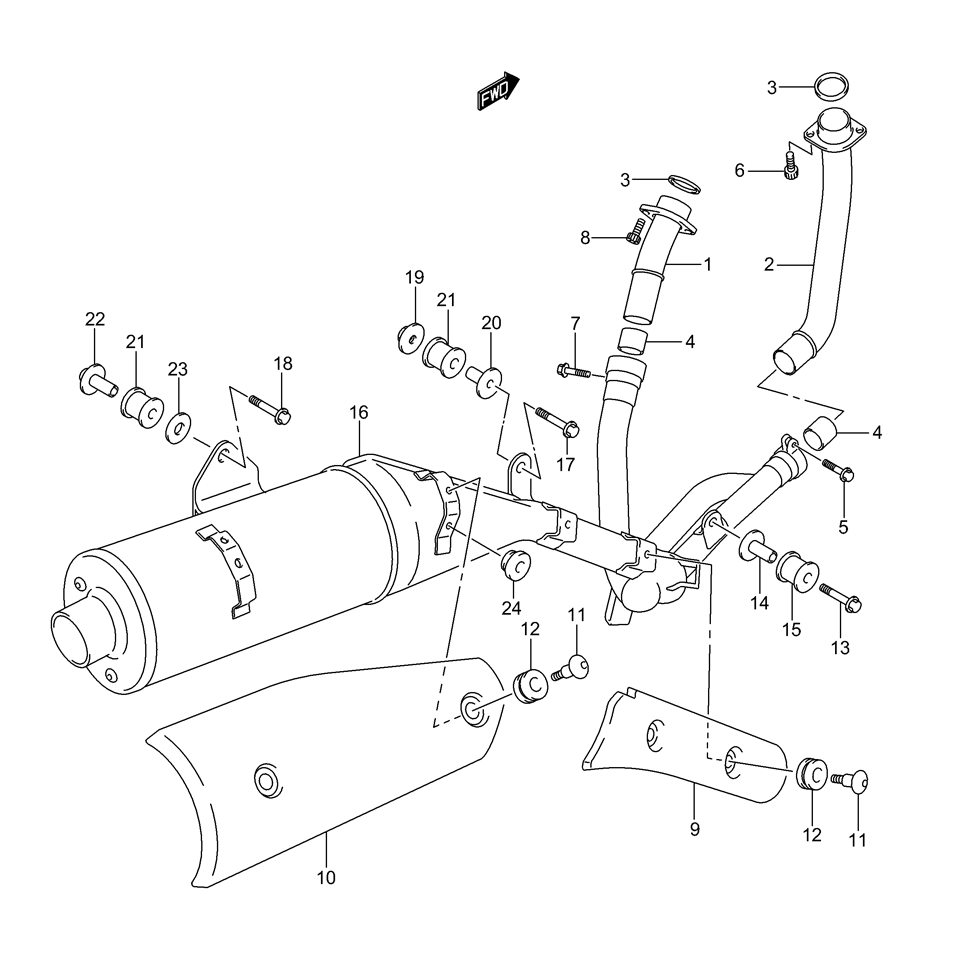

MUFFLER для Suzuki DL650 K6 V-STORM - 2006 года выпуска
-
№АртикулНазвание
-
114150-27G00 PIPE, EXHAUST REARPIPE, EXHAUST REAR
-
214160-17G00 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
314181-22D01 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
414771-32E00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
509103-08365 BOLTBOLT
-
609106-08165 BOLTBOLT
-
707120-08353 BOLTBOLT
-
807130-08253 BOLTBOLT
-
914771-27G00 COVER, MUFFLER FRONTCOVER, MUFFLER FRONT
-
1014781-27G00 COVER, MUFFLERCOVER, MUFFLER
-
1109139-06087 SCREWSCREW
-
1209320-08070 CUSHIONCUSHION
-
1309118-08152 BOLTBOLT
-
1409180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1509320-12048 CUSHIONCUSHION
-
1614305-27G50-H01 MUFFLER (CALIF ONLY)MUFFLER (CALIF ONLY)
-
1701550-08453 BOLTBOLT
-
1809103-08358 BOLTBOLT
-
1914414-27G00 NUT, MUFFLER SPRTNUT, MUFFLER SPRT
-
2009180-08156 SPACERSPACER
-
2109320-12049 CUSHIONCUSHION
-
2214414-06G00 NUT, MUFFLER SPRTNUT, MUFFLER SPRT
-
2309160-08146 WASHERWASHER
-
2409321-10018 CUSHION (CALIF ONLY)CUSHION (CALIF ONLY)
