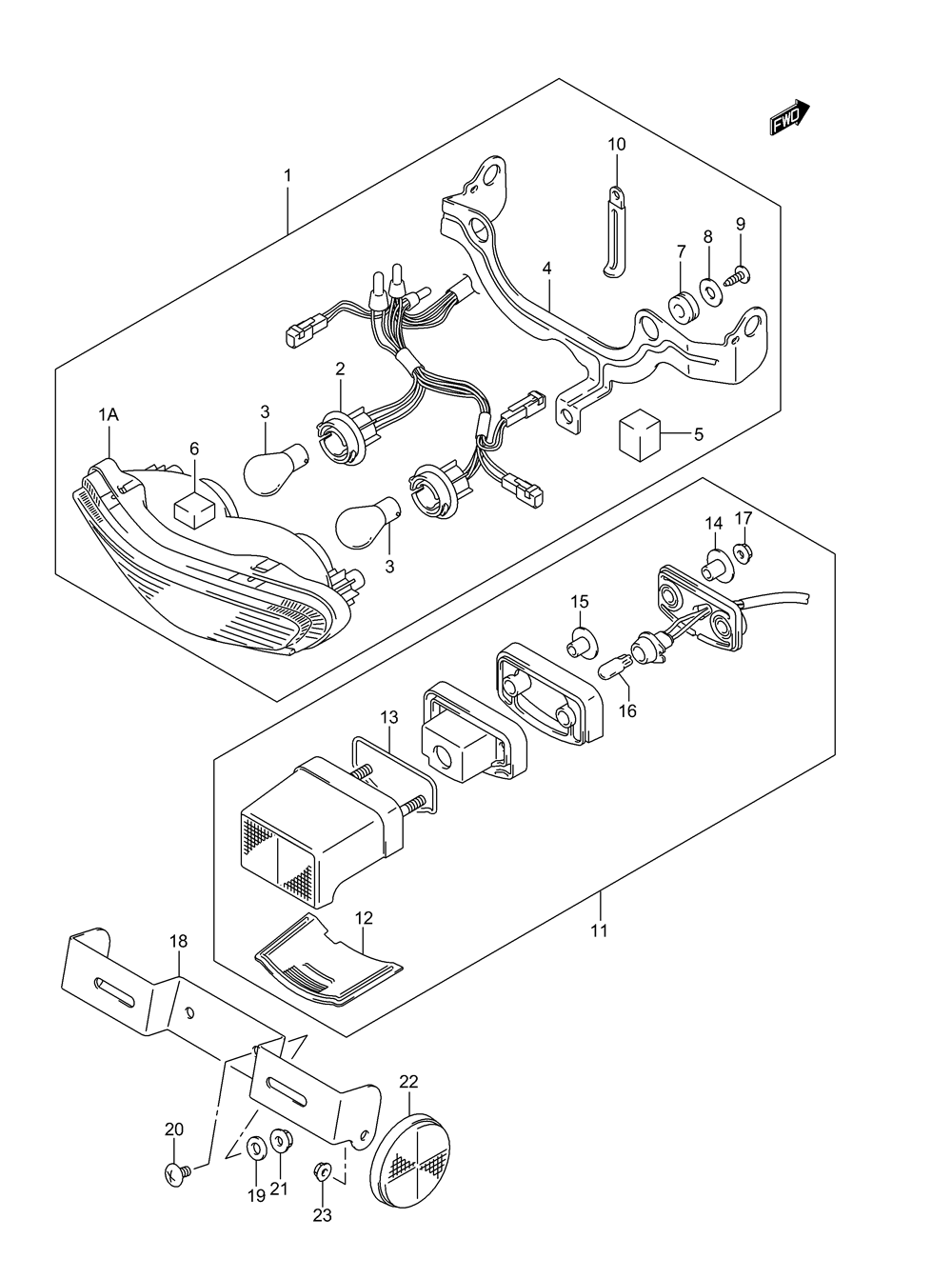

TAILLIGHT ASSY. для Suzuki DL650 K6 V-STORM - 2006 года выпуска
-
№АртикулНазвание
-
135710-27G30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
1A35720-06G30 UNITUNIT
-
235718-27G00 SOCKET AND CORDSOCKET AND CORD
-
309471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
435726-27G00 BRACKETBRACKET
-
535739-27G00 CUSHIONCUSHION
-
635734-27G00 CUSHIONCUSHION
-
709320-10049 CUSHIONCUSHION
-
809160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
903242-05163 SCREWSCREW
-
1009404-06432 CLAMP (L:65)CLAMP (L:65)
-
1135910-27G30 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1235912-08F00 LENSLENS
-
1335913-08F00 GASKETGASKET
-
1435766-27G30 SPACERSPACER
-
1535766-08F00 SPACERSPACER
-
1609471-12216 BULB (12V,5W)BULB (12V,5W)
-
1708316-10063 NUTNUT
-
1835927-06G00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1909160-06128 WASHER (6.5X16X1.6)WASHER (6.5X16X1.6)
-
2002142-06123 SCREW, LICENSE PLATESCREW, LICENSE PLATE
-
2108316-10063 NUT, LICENSENUT, LICENSE
-
2235970-14A20 REFLEX REFLECTOR ASSY, REAR SIDEREFLEX REFLECTOR ASSY, REAR SIDE
-
2308316-10053 NUTNUT
