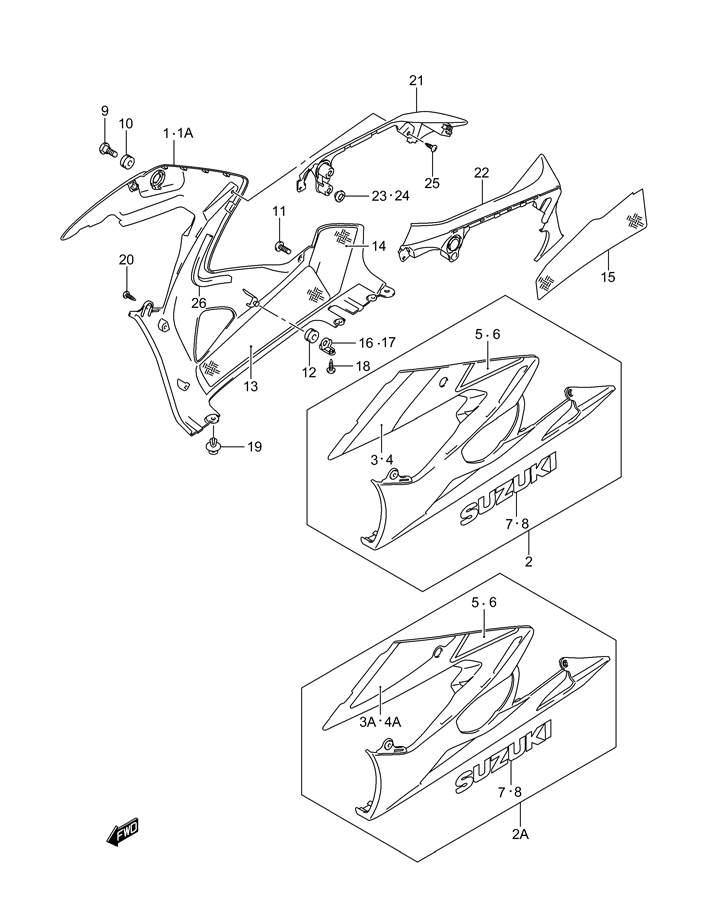

COWLING - UNDER BODY для Suzuki GSX-R1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
194470-41G30-YBD COWL, UNDER RIGHT HAND (WHITE, YBD FOR LR5)COWL, UNDER RIGHT HAND (WHITE, YBD FOR LR5)
-
194470-41G30-019 COWL, UNDER RIGHT HAND (BLACK, 019 FOR BZG)COWL, UNDER RIGHT HAND (BLACK, 019 FOR BZG)
-
194470-41G30-1PX COWL, UNDER RIGHT HAND (BLACK, 1PX FOR CRS)COWL, UNDER RIGHT HAND (BLACK, 1PX FOR CRS)
-
194470-41G30-YHF COWL, UNDER RIGHT HAND (GRAY, YHF FOR CRT)COWL, UNDER RIGHT HAND (GRAY, YHF FOR CRT)
-
1A94470-41G40-YKV COWL, UNDER RIGHT HAND (BLACK, YKV FOR CRU)COWL, UNDER RIGHT HAND (BLACK, YKV FOR CRU)
-
294480-41G30-YBD COWL, UNDER LEFT HAND (WHITE, YBD FOR LR5)COWL, UNDER LEFT HAND (WHITE, YBD FOR LR5)
-
294480-41G30-019 COWL, UNDER LEFT HAND (BLACK, 019 FOR ZG)COWL, UNDER LEFT HAND (BLACK, 019 FOR ZG)
-
294480-41G30-1PX COWL, UNDER LEFT HAND (BLACK, 1PX FOR CRS)COWL, UNDER LEFT HAND (BLACK, 1PX FOR CRS)
-
294480-41G30-YHF COWL, UNDER LEFT HAND (GRAY, YHF FOR CRT)COWL, UNDER LEFT HAND (GRAY, YHF FOR CRT)
-
2A94480-41G40-YKV COWL, UNDER LEFT HAND (BLACK, YKV FOR CRU)COWL, UNDER LEFT HAND (BLACK, YKV FOR CRU)
-
368185-41G00-CNR TAPE, UPPER RIGHT HAND (FOR YBD)TAPE, UPPER RIGHT HAND (FOR YBD)
-
368185-41G00-2UR TAPE, UPPER RIGHT HAND (FOR 019/1PX)TAPE, UPPER RIGHT HAND (FOR 019/1PX)
-
368185-41G00-CVN TAPE, UPPER RIGHT HAND (FOR YHF)TAPE, UPPER RIGHT HAND (FOR YHF)
-
3A68185-41G10-CVR TAPE, UPPER RIGHT HAND (FOR YKV)TAPE, UPPER RIGHT HAND (FOR YKV)
-
468195-41G00-CNR TAPE, UPPER LEFT HAND (FOR YBD)TAPE, UPPER LEFT HAND (FOR YBD)
-
468195-41G00-2UR TAPE, UPPER LEFT HAND (FOR 019/1PX)TAPE, UPPER LEFT HAND (FOR 019/1PX)
-
468195-41G00-CVN TAPE, UPPER LEFT HAND (FOR YHF)TAPE, UPPER LEFT HAND (FOR YHF)
-
4A68195-41G10-CVR TAPE, UPPER LEFT HAND (FOR YKV)TAPE, UPPER LEFT HAND (FOR YKV)
-
568185-41G20-CVJ TAPE, CENTER RIGHT HAND (FOR YBD)TAPE, CENTER RIGHT HAND (FOR YBD)
-
568185-41G20-CVK TAPE, CENTER RIGHT HAND (FOR 019)TAPE, CENTER RIGHT HAND (FOR 019)
-
568185-41G20-CVL TAPE, CENTER RIGHT HAND (FOR 1PX)TAPE, CENTER RIGHT HAND (FOR 1PX)
-
568185-41G20-CVM TAPE, CENTER RIGHT HAND (FOR YHF)TAPE, CENTER RIGHT HAND (FOR YHF)
-
568185-41G20-CVP TAPE, CENTER RIGHT HAND (FOR YKV)TAPE, CENTER RIGHT HAND (FOR YKV)
-
668195-41G20-CVJ TAPE, COVER LEFT HAND (FOR YBD)TAPE, COVER LEFT HAND (FOR YBD)
-
668195-41G20-CVK TAPE, COVER LEFT HAND (FOR 019)TAPE, COVER LEFT HAND (FOR 019)
-
668195-41G20-CVL TAPE, COVER LEFT HAND (FOR 1PX)TAPE, COVER LEFT HAND (FOR 1PX)
-
668195-41G20-CVM TAPE, COVER LEFT HAND (FOR YHF)TAPE, COVER LEFT HAND (FOR YHF)
-
668195-41G20-CVP TAPE, COVER LEFT HAND (FOR YKV)TAPE, COVER LEFT HAND (FOR YKV)
-
768181-41G00-019 EMBLEM, RIGHT HAND (BLACK) (FOR YBD/YKV)EMBLEM, RIGHT HAND (BLACK) (FOR YBD/YKV)
-
768181-41G00-YD8 EMBLEM, RIGHT HAND (SILVER) (FOR 019)EMBLEM, RIGHT HAND (SILVER) (FOR 019)
-
768181-41G00-YU8 EMBLEM, RIGHT HAND (GRAY) (FOR 1PX/YHF)EMBLEM, RIGHT HAND (GRAY) (FOR 1PX/YHF)
-
868191-41G00-019 EMBLEM, LEFT HAND (BLACK) (FOR YBD/YKV)EMBLEM, LEFT HAND (BLACK) (FOR YBD/YKV)
-
868191-41G00-YD8 EMBLEM, RIGHT HAND (SILVER) (FOR 019)EMBLEM, RIGHT HAND (SILVER) (FOR 019)
-
868191-41G00-YU8 EMBLEM, RIGHT HAND (GRAY) (FOR 1PX/YHF)EMBLEM, RIGHT HAND (GRAY) (FOR 1PX/YHF)
-
909139-06126 SCDREW, UPPERSCDREW, UPPER
-
1009320-09016 CUSHIONCUSHION
-
1109139-05064 SCREW, REARSCREW, REAR
-
1209320-08028 CUSHION, CENTERCUSHION, CENTER
-
1394472-41G00 SHIELD FRONT RIGHT HANDSHIELD FRONT RIGHT HAND
-
1494472-41G10 SHIELD, REAR RIGHT HANDSHIELD, REAR RIGHT HAND
-
1594482-41G00 SHIELD, LEFT HANDSHIELD, LEFT HAND
-
1694530-41G00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1794540-41G00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
1801550-06123 BOLTBOLT
-
1994479-35F00 CLIPCLIP
-
2003541-05163 SCREW 5 X 16SCREW 5 X 16
-
2194475-41G00 COVER, UNDER COWL RIGHT HANDCOVER, UNDER COWL RIGHT HAND
-
2294485-41G00 COVER, UNDER COWL LEFT HANDCOVER, UNDER COWL LEFT HAND
-
2309321-10018 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
2409321-10040 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
2503541-05163 SCREW 5 X 16SCREW 5 X 16
-
2694476-41G00 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
