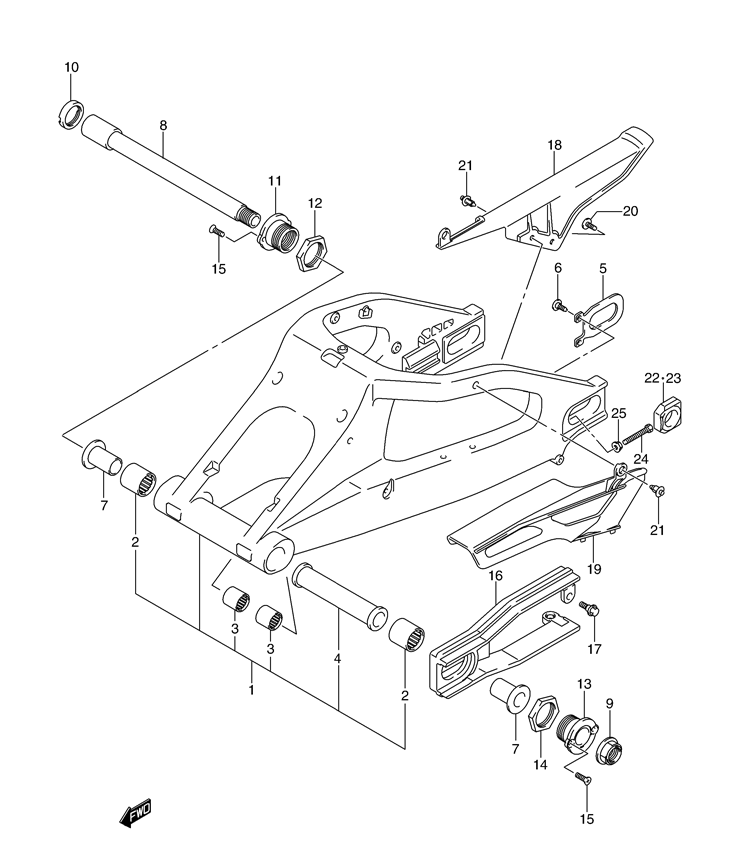

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
161000-41G00-YAP SWINGING ARM ASSY, REAR (BLACK)SWINGING ARM ASSY, REAR (BLACK)
-
209263-27013 BEARING, PIVOTBEARING, PIVOT
-
309263-17039 BEARING, ROD (17X24X20)BEARING, ROD (17X24X20)
-
461281-41G00 SPACER, CENTERSPACER, CENTER
-
561124-41G00 PLATE, BRACKETPLATE, BRACKET
-
609125-06073 SCREW (6X16)SCREW (6X16)
-
761251-41G00 SPACER, BEARINGSPACER, BEARING
-
861211-41G00 SHAFT, PIVOTSHAFT, PIVOT
-
909159-20006 NUTNUT
-
1061214-42E00 NUT, PIVOTNUT, PIVOT
-
1161212-41G00 BOSS, REAR SWINGARM PIVOT, RIGHTBOSS, REAR SWINGARM PIVOT, RIGHT
-
1161210-41GR0 BOSS, REAR SWINGARM PIVOT, RIGHTBOSS, REAR SWINGARM PIVOT, RIGHT
-
1261213-41G00 NUT, REAR SWINGARM PIVOT BOSS, RIGHTNUT, REAR SWINGARM PIVOT BOSS, RIGHT
-
1361214-41G00 BOSS, REAR SWINGARM PIVOT, LEFTBOSS, REAR SWINGARM PIVOT, LEFT
-
1361210-41GR0 BOSS, REAR SWINGARM PIVOT, LEFTBOSS, REAR SWINGARM PIVOT, LEFT
-
1461215-41G00 NUT, REAR SWINGARM PIVOT BOSS, LEFTNUT, REAR SWINGARM PIVOT BOSS, LEFT
-
1502122-05123 SCREW, BOSSSCREW, BOSS
-
1661273-41G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1709111-06072 SCREWSCREW
-
1861311-41G00 CASE, CHAIN NO.1CASE, CHAIN NO.1
-
1961321-41G00 CASE, CHAIN NO.2CASE, CHAIN NO.2
-
2009139-06083 SCREW (6X16)SCREW (6X16)
-
2109409-08308-5ES CLIPCLIP
-
2261445-40F20 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
2361446-40F10 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
2409100-08287 BOLT (8X50)BOLT (8X50)
-
2508316-10083 NUTNUT
