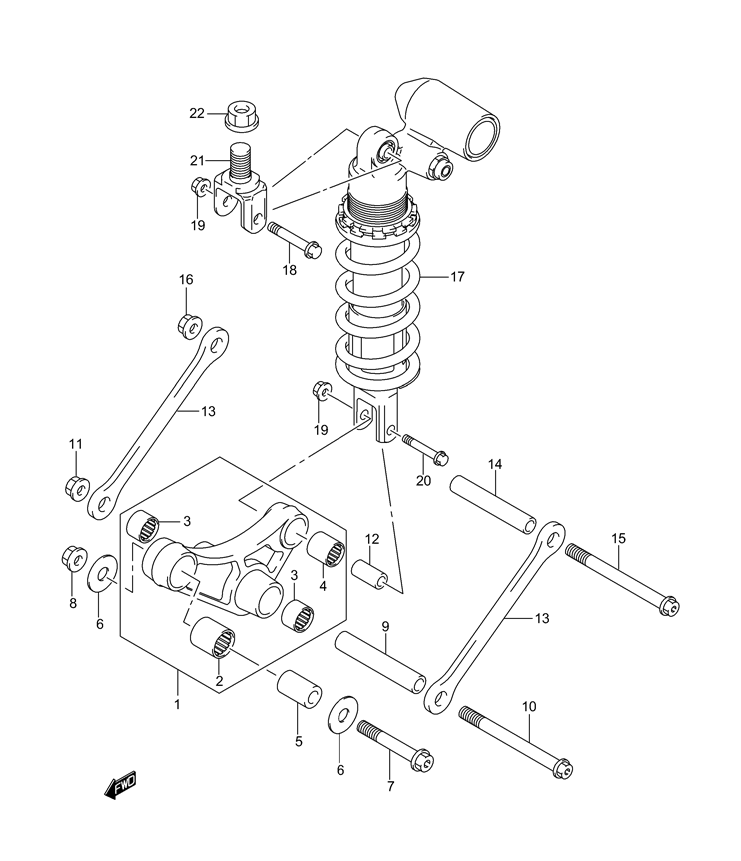

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
162600-41810 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 BEARING, FRONT (20X27X30)BEARING, FRONT (20X27X30)
-
309263-17039 BEARING, CENTER (17X24X20)BEARING, CENTER (17X24X20)
-
409263-17034 BEARING, REAR (17X24X26)BEARING, REAR (17X24X26)
-
562684-12C00 SPACER, FRONTSPACER, FRONT
-
609160-12037 WASHERWASHER
-
762658-35F00 BOLT, FRONTBOLT, FRONT
-
809159-12056 NUTNUT
-
962626-33D00 SPACER, CENTERSPACER, CENTER
-
1062621-35F00 BOLT, CENTERBOLT, CENTER
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REARSPACER, REAR
-
1362641-41G00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1462626-33D00 SPACER, RODSPACER, ROD
-
1562621-35F00 BOLT, RODBOLT, ROD
-
1609159-12056 NUTNUT
-
1762100-41G10-163 ABSORBER ASSY, REAR SHOCK (EXCEPT CANADA)ABSORBER ASSY, REAR SHOCK (EXCEPT CANADA)
-
1762100-41G00-161 ABSORBER ASSY, REAR SHOCK (CANADA)ABSORBER ASSY, REAR SHOCK (CANADA)
-
1809103-10143 BOLT, UPPER (10X55)BOLT, UPPER (10X55)
-
1909159-10058 NUTNUT
-
2009103-10143 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
2162993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2209159-20006 NUTNUT
