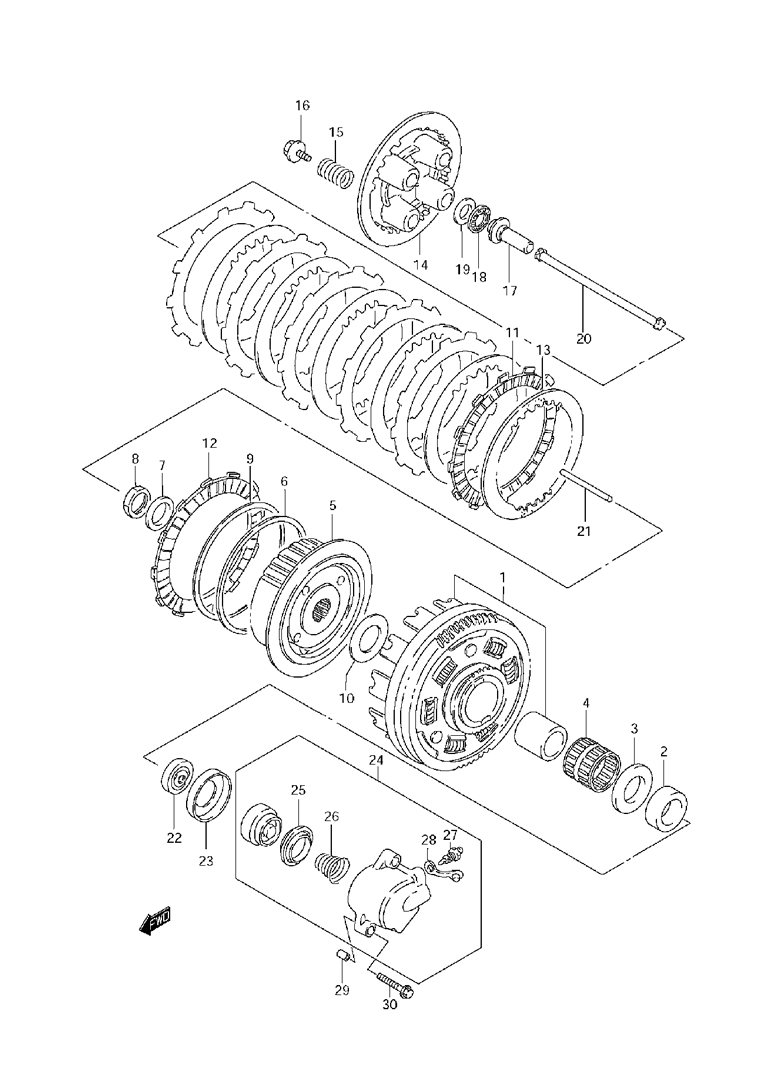

CLUTCH для Suzuki VS800 K6 - 2006 года выпуска
-
№АртикулНазвание
-
121200-38840 GEAR, PRIMARY DRIVEN (NT:71)GEAR, PRIMARY DRIVEN (NT:71)
-
209180-25077 SPACER, INNER (25X38X6.5)SPACER, INNER (25X38X6.5)
-
309160-25055 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
409263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
521410-41F00 HUB, SLEEVEHUB, SLEEVE
-
621471-37400 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
709164-22007 WASHER, WAVEWASHER, WAVE
-
809140-22008 NUTNUT
-
909164-00004 WASHERWASHER
-
1009160-25055 WASHERWASHER
-
1121441-37400 PLATE, DRIVE NO.1PLATE, DRIVE NO.1
-
1221442-37401 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1321451-14A00 PLATE, DRIVENPLATE, DRIVEN
-
1421462-27A00 DISC, PRESSUREDISC, PRESSURE
-
1509440-20013 SPRINGSPRING
-
1609116-06203 BOLT (6X30)BOLT (6X30)
-
1723121-31E00 PIECE, PUSHPIECE, PUSH
-
1809263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
1909160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2023110-27A00 ROD, PUSH RIGHT HANDROD, PUSH RIGHT HAND
-
2123111-38A00 ROD, PUSH LEFT HANDROD, PUSH LEFT HAND
-
2209285-06017 OIL SEAL (6X34X11)OIL SEAL (6X34X11)
-
2323117-38A00 RETAINERRETAINER
-
2423160-38A00 CYLINDER, CLUTCH RELEASE (INCLUDES ITEM(S) 25 - 28)CYLINDER, CLUTCH RELEASE (INCLUDES ITEM(S) 25 - 28)
-
2523163-05A00 CUPCUP
-
2623164-05A00 SPRINGSPRING
-
2759121-01A00 BLEEDERBLEEDER
-
2859122-01A00 CAPCAP
-
2904211-09129 PIN 9 X 12PIN 9 X 12
-
3001550-0630A BOLTBOLT
