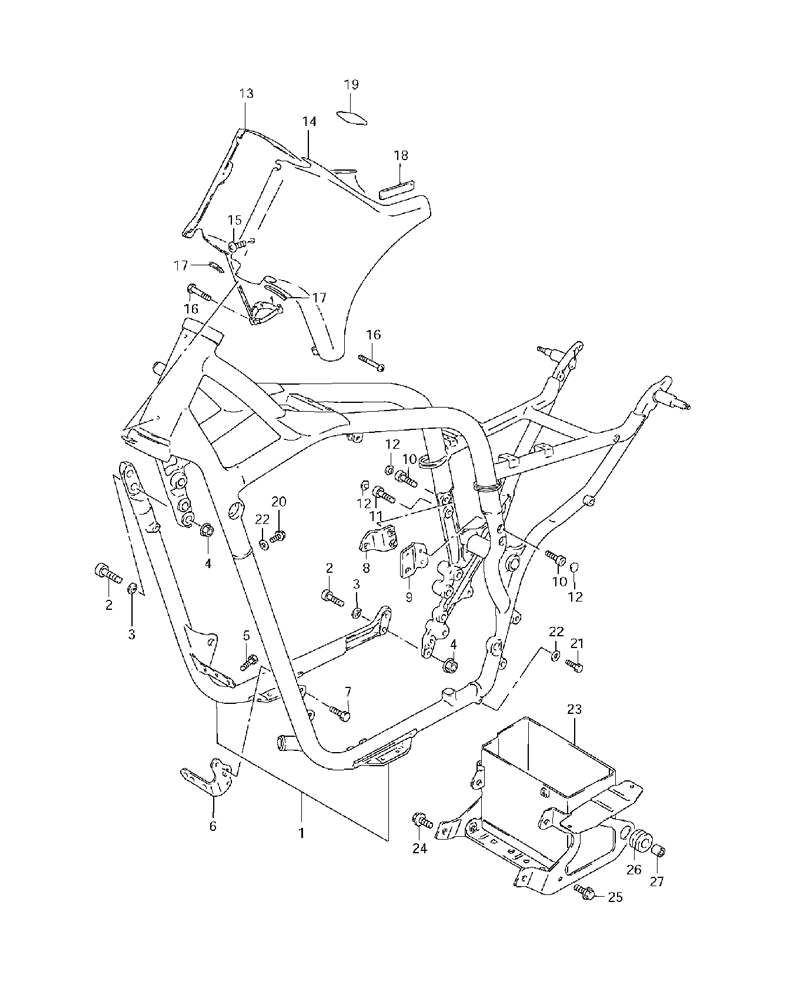

FRAME для Suzuki VS800 K6 - 2006 года выпуска
-
№АртикулНазвание
-
141101-39813-YAY FRAME SET (BLACK YAY) (INCLUDES ITEM(S) 2 - 5)FRAME SET (BLACK YAY) (INCLUDES ITEM(S) 2 - 5)
-
141101-39813-YDV FRAME SET (SILVER YDV) (INCLUDES ITEM(S) 2 - 5)FRAME SET (SILVER YDV) (INCLUDES ITEM(S) 2 - 5)
-
141101-39813-YHL FRAME SET (RED YHL) (INCLUDES ITEM(S) 2 - 5)FRAME SET (RED YHL) (INCLUDES ITEM(S) 2 - 5)
-
209106-10019 BOLT, REARBOLT, REAR
-
309164-10010 WASHERWASHER
-
408319-3110B NUTNUT
-
501551-0820B BOLT, FRONTBOLT, FRONT
-
641920-38A00-019 PLATE, NO.1 LEFT HAND (BLACK)PLATE, NO.1 LEFT HAND (BLACK)
-
707130-0816B BOLTBOLT
-
841950-38A11-019 PLATE, NO.1 RIGHT HAND (BLACK)PLATE, NO.1 RIGHT HAND (BLACK)
-
941960-38A10-019 PLATE, NO.3 LEFT HAND (BLACK)PLATE, NO.3 LEFT HAND (BLACK)
-
1009106-08070 BOLT, UPPERBOLT, UPPER
-
1107130-0830B BOLT, LOWERBOLT, LOWER
-
1209250-06004 CAPCAP
-
1347350-38A01-YAY COVER, FRAME HEAD RIGHT HAND (BLACK YAY)COVER, FRAME HEAD RIGHT HAND (BLACK YAY)
-
1347350-38A01-YDV COVER, FRAME HEAD RIGHT HAND (SILVER YDV)COVER, FRAME HEAD RIGHT HAND (SILVER YDV)
-
1347350-38A01-YHL COVER, FRAME HEAD RIGHT HAND (RED YHL)COVER, FRAME HEAD RIGHT HAND (RED YHL)
-
1447360-38A01-YAY COVER, FRAME HEAD LEFT HAND (BLACK YAY)COVER, FRAME HEAD LEFT HAND (BLACK YAY)
-
1447360-38A01-YDV COVER, FRAME HEAD LEFT HAND (SILVER YDV)COVER, FRAME HEAD LEFT HAND (SILVER YDV)
-
1447360-38A01-YHL COVER, FRAME HEAD LEFT HAND (RED YHL)COVER, FRAME HEAD LEFT HAND (RED YHL)
-
1509125-06117 SCREWSCREW
-
1602112-0425B SCREWSCREW
-
1768241-04X50-300 MOLDING, HEAD COVERMOLDING, HEAD COVER
-
1833652-38A10 CUSHION, FRAME HEAD COVERCUSHION, FRAME HEAD COVER
-
1947358-38A00 TAPE, FRAME HEAD COVERTAPE, FRAME HEAD COVER
-
2017568-50F00 BOLT, AIR DUCTBOLT, AIR DUCT
-
2101550-0610B BOLT, DRAINBOLT, DRAIN
-
2209168-06026 GASKETGASKET
-
2341540-38A12 HOLDER, BATTERYHOLDER, BATTERY
-
2401551-1016B BOLTBOLT
-
2501550-0616B BOLTBOLT
-
2609320-12031 CUSHIONCUSHION
-
2709301-08009 SPACER 5.5X7.5XSPACER 5.5X7.5X
