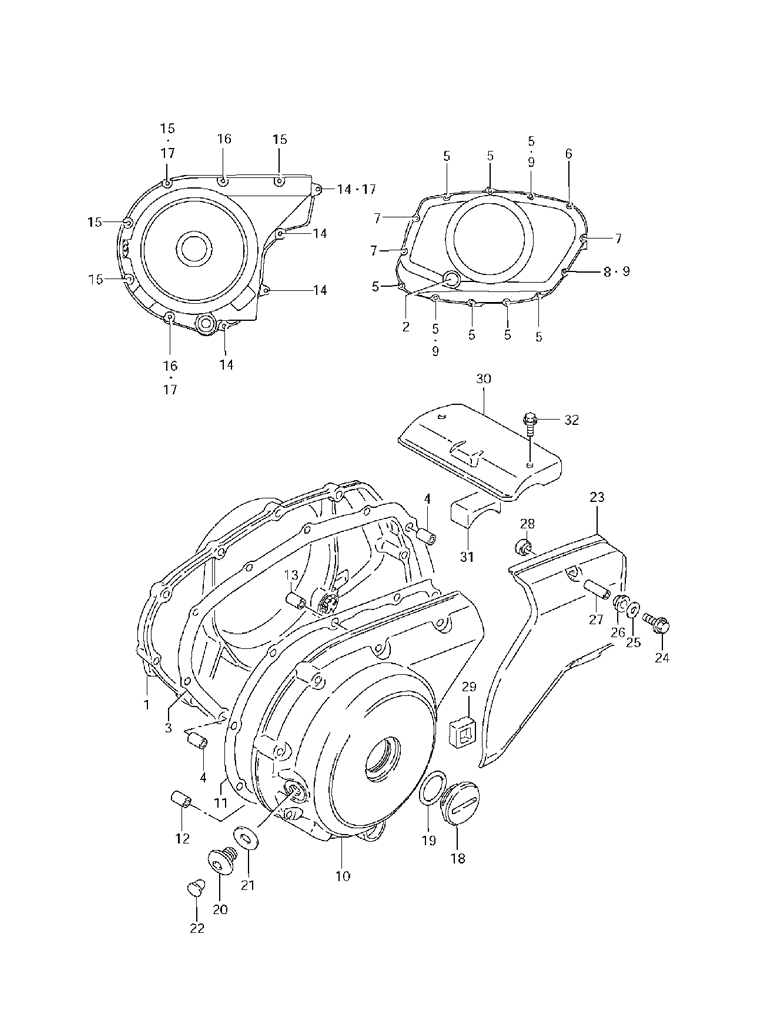

CRANKCASE COVER для Suzuki VS800 K6 - 2006 года выпуска
-
№АртикулНазвание
-
111340-38A00 COVER, CLUTCH (INCLUDES ITEM(S) 2)COVER, CLUTCH (INCLUDES ITEM(S) 2)
-
211971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
311482-41F00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-09189 PINPIN
-
509103-06213 BOLTBOLT
-
609103-06214 BOLTBOLT
-
709103-06224 BOLTBOLT
-
809103-06261 BOLTBOLT
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1011351-45C20 COVER, GENERATORCOVER, GENERATOR
-
1111483-41F00 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1209206-11007 PINPIN
-
1304211-09189 PINPIN
-
1409103-06213 BOLT (6X30)BOLT (6X30)
-
1509103-06215 BOLT (6X40)BOLT (6X40)
-
1609103-06238 BOLTBOLT
-
1709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1809259-36008 PLUG, ACCESSPLUG, ACCESS
-
1909280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2009248-14005 PLUG, T.D.CPLUG, T.D.C
-
2109168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2209250-08014 CAPCAP
-
2311361-38A50 COVER, SECONDARY DRIVECOVER, SECONDARY DRIVE
-
2409103-06224 BOLTBOLT
-
2509160-06125 WASHERWASHER
-
2609161-09006 CUSHION, OUTERCUSHION, OUTER
-
2709180-06278 SPACERSPACER
-
2809161-09005 CUSHION, INNERCUSHION, INNER
-
2911369-38A00 DAMPER, SECONDARY COVERDAMPER, SECONDARY COVER
-
3031210-38A01 COVER, STARTER MOTORCOVER, STARTER MOTOR
-
3131212-38A10 DAMPERDAMPER
-
3201547-05087 BOLTBOLT
