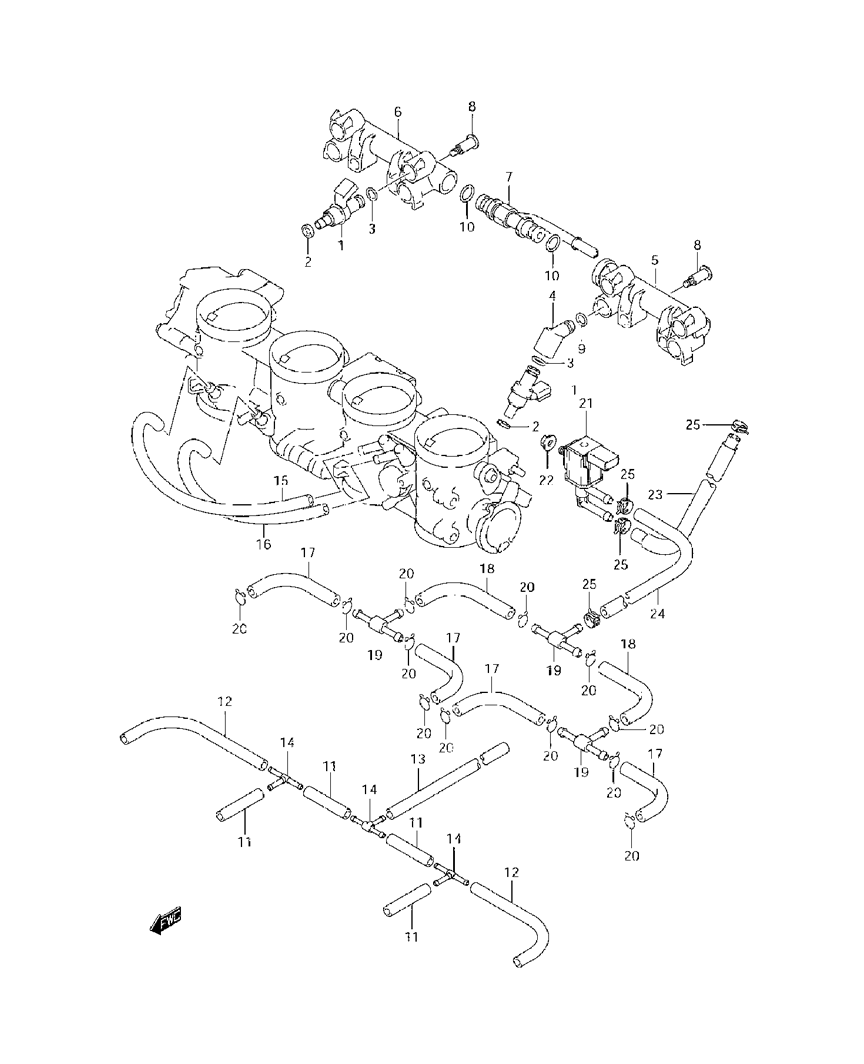

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
115710-21H00 INJECTOR ASSYINJECTOR ASSY
-
215722-21H00 O RINGO RING
-
315721-21H00 O RINGO RING
-
413473-21H00 PIPE, FUELPIPE, FUEL
-
513474-21H00 PIPE, FUELPIPE, FUEL
-
613474-21H10 PIPE, FUELPIPE, FUEL
-
713473-21H10 PIPE, FUELPIPE, FUEL
-
813601-35F00 SCREWSCREW
-
915721-24F00 O RINGO RING
-
1015721-10G00 O RINGO RING
-
1113697-24F00 HOSE, RUBBER (L:35)HOSE, RUBBER (L:35)
-
1213697-24F20 HOSE, RUBBER (L:100)HOSE, RUBBER (L:100)
-
1313683-21H00 HOSE, RUBBER (L:220)HOSE, RUBBER (L:220)
-
1413471-24F30 T JOINTT JOINT
-
1513680-21H10 TUBE, RUBBERTUBE, RUBBER
-
1613698-21H00 TUBE, RUBBERTUBE, RUBBER
-
1713683-21H10 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
1813683-21H20 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
1913685-36E50 JOINT (CALIF. ONLY)JOINT (CALIF. ONLY)
-
2013693-24F00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
2118117-52G10 VALVE, CANISTER PURGE (CALIF. ONLY)VALVE, CANISTER PURGE (CALIF. ONLY)
-
2208316-1006B NUT (CALIF. ONLY)NUT (CALIF. ONLY)
-
2313680-21H00 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
2409355-54115-600 HOSE L:600!190 (CALIF. ONLY)HOSE L:600!190 (CALIF. ONLY)
-
2509401-11413 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
