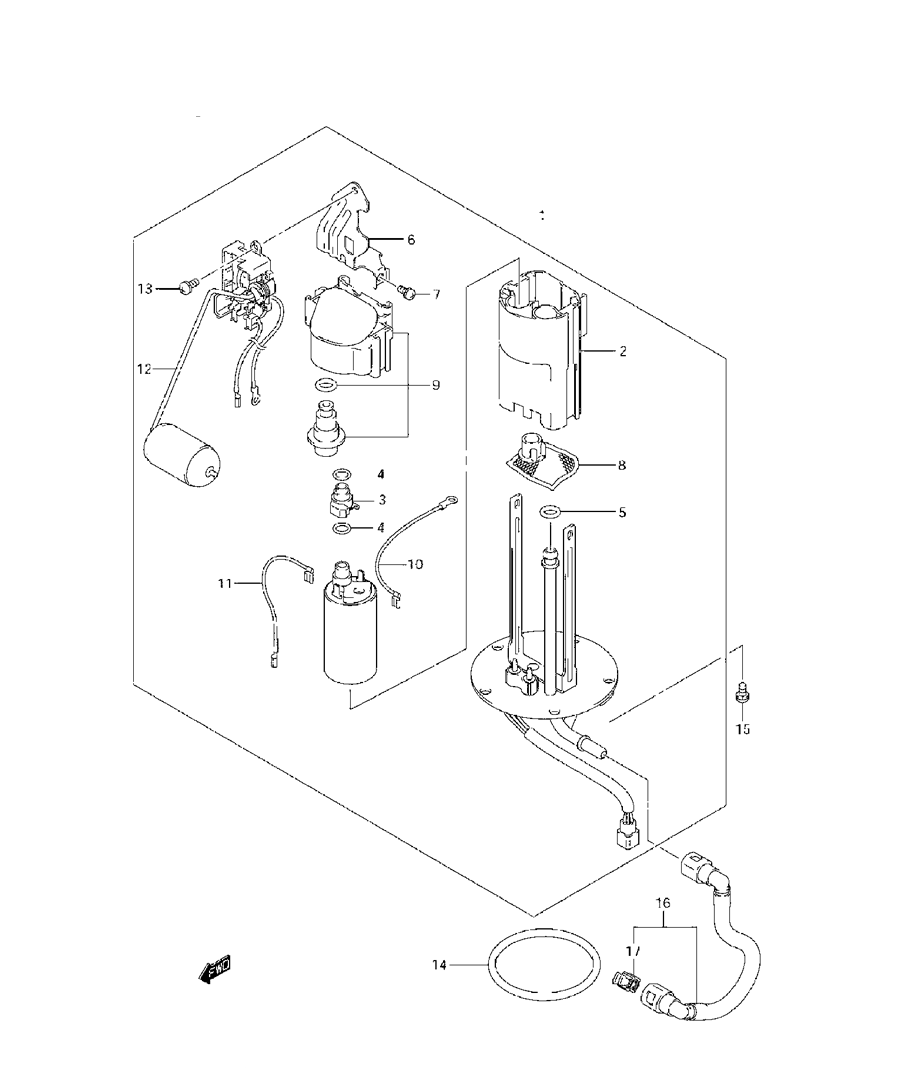

FUEL PUMP для Suzuki GSX-R1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
115100-21H00 PUMP ASSY, FUEL (INCL. 2-13)PUMP ASSY, FUEL (INCL. 2-13)
-
215111-27G00 CUPCUP
-
315112-05H00 JOINTJOINT
-
415113-05H00 O RINGO RING
-
515113-35F00 O RINGO RING
-
615181-21H00 BRACKET, FUEL GAUGEBRACKET, FUEL GAUGE
-
715116-10F00 SCREWSCREW
-
815420-05H00 STRAINER, FUEL PUMPSTRAINER, FUEL PUMP
-
915610-27G00 REGULATOR, FUELREGULATOR, FUEL
-
1015114-27G00 WIRE, EARTHWIRE, EARTH
-
1115115-27G00 WIRE, LEADWIRE, LEAD
-
1234810-21H00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
1315116-06G10 SCREWSCREW
-
1415201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1507120-0612A BOLTBOLT
-
1615810-15H00 HOSE, FUEL (INCL. 17)HOSE, FUEL (INCL. 17)
-
1715815-35F00 RETAINERRETAINER
