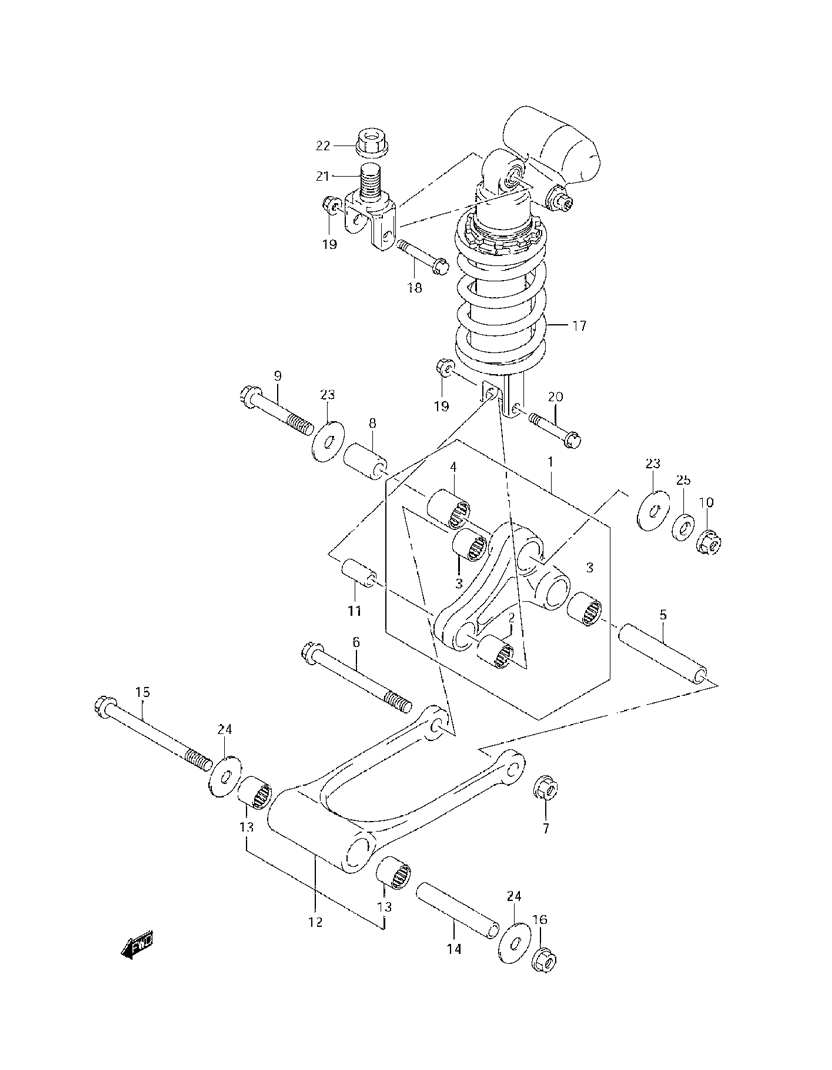

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-R1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
162600-21810 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-17034 BEARING, FRONT (17X24X26)BEARING, FRONT (17X24X26)
-
309263-17037 BEARING, LOWER (17X24X25)BEARING, LOWER (17X24X25)
-
409263-20074 BEARING, UPPER (20X27X32)BEARING, UPPER (20X27X32)
-
562646-08G00 SPACER, LOWERSPACER, LOWER
-
662621-42E10 BOLT, LOWERBOLT, LOWER
-
709159-12056-A05 NUTNUT
-
862317-27C10 SPACER, UPPERSPACER, UPPER
-
962658-19F00 BOLT, UPPERBOLT, UPPER
-
1009159-12056-A05 NUTNUT
-
1162684-40A10 SPACER, FRONTSPACER, FRONT
-
1262600-21820 ROD SET, REAR CUSHION LEVER (INCL. 13)ROD SET, REAR CUSHION LEVER (INCL. 13)
-
1309263-17037 BEARING, ROD (17X24X25)BEARING, ROD (17X24X25)
-
1462626-21H00 SPACER, RODSPACER, ROD
-
1562621-21H00 BOLT, RODBOLT, ROD
-
1609159-12056-A05 NUTNUT
-
1762100-21H10-163 ABSORBER ASSY, REAR SHOCK (EXCEPT CALIF.)ABSORBER ASSY, REAR SHOCK (EXCEPT CALIF.)
-
1762100-21H20-161 ABSORBER ASSY, REAR SHOCK (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (CANADA ONLY)
-
1809103-10143 BOLT, UPPER (10X55)BOLT, UPPER (10X55)
-
1909159-10115 NUTNUT
-
2009103-10143 BOLT, LOWER (10X55)BOLT, LOWER (10X55)
-
2162993-35F00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2209159-20006 NUTNUT
-
2309160-12037 WASHERWASHER
-
2462628-42AA0 WASHERWASHER
-
2509160-12080 WASHERWASHER
